P 18/ 20
Switch
Receptacle
Lead wire (black)
Lead wire (red)

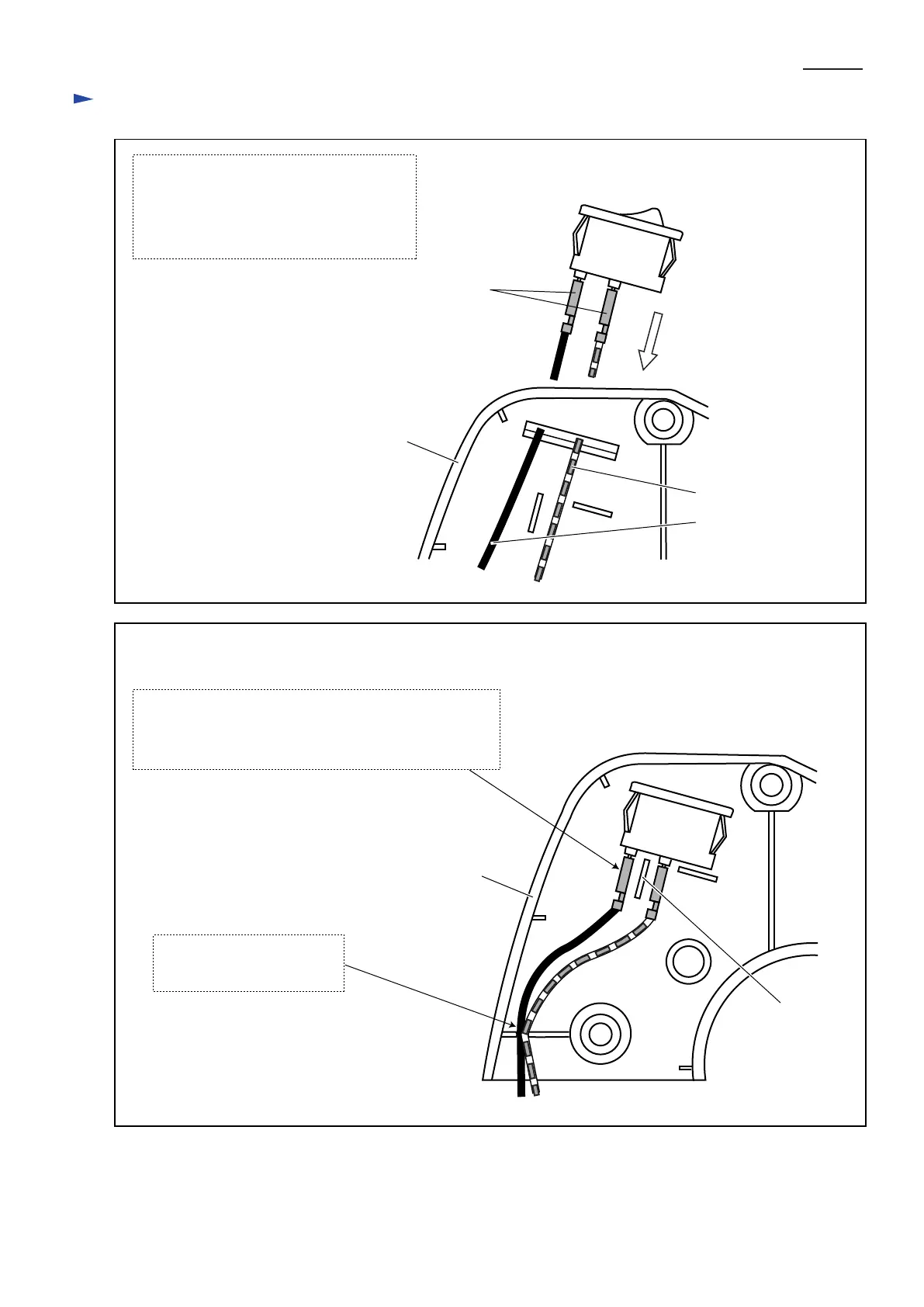

Wiring diagram
Top handle cover
Connect the lead wires (red, black)
with the terminals of switch before
assembling the switch to the top
handle cover.
Switch
Top handle cover
Assemble the switch to the top handle cover
so that the rib on the top handle cover is
positioned between the terminals of the switch.
Fix the lead wires with
this lead wire holder.
Rib
To Next Page
