Makita DCS230T Technical Information

P 19/ 20

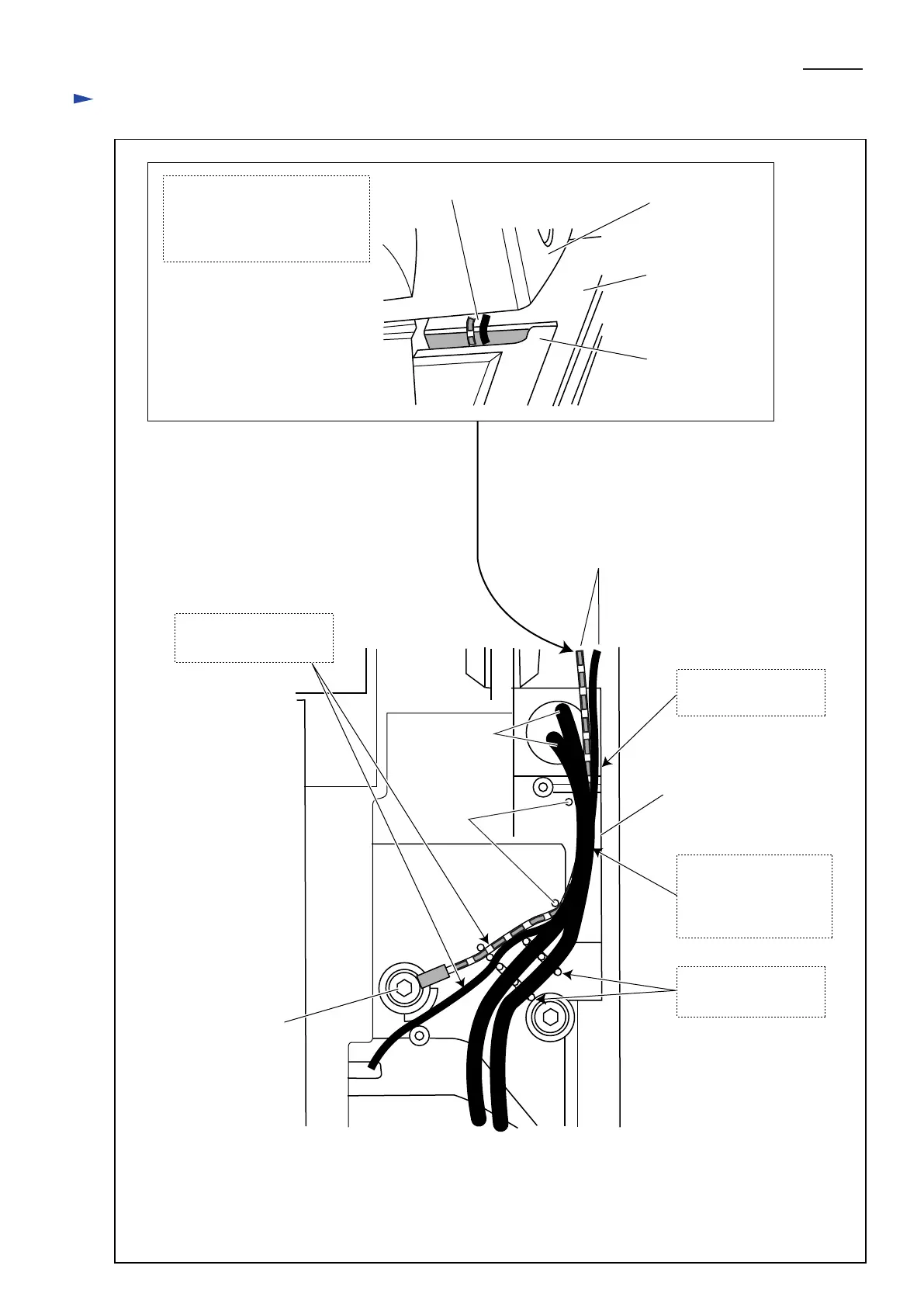

Lead wires
Wiring diagram
Top handle cover
Route the lead wires through
the space (the shaded portion)
between the main housing and
the top cover.
Top cover
Main housing
Lead wires
Tubes
Pins
Body earth
Inside wall
Route the lead wires
under the tubes.
Route the lead wires
and the tubes between
the pins and the inside
wall.
Fix the tubes with
the lead wire holders.
Fix the lead wires with
the lead wire holders.
