Makita DCS230T Technical Information

P 20/ 20
Lead wire

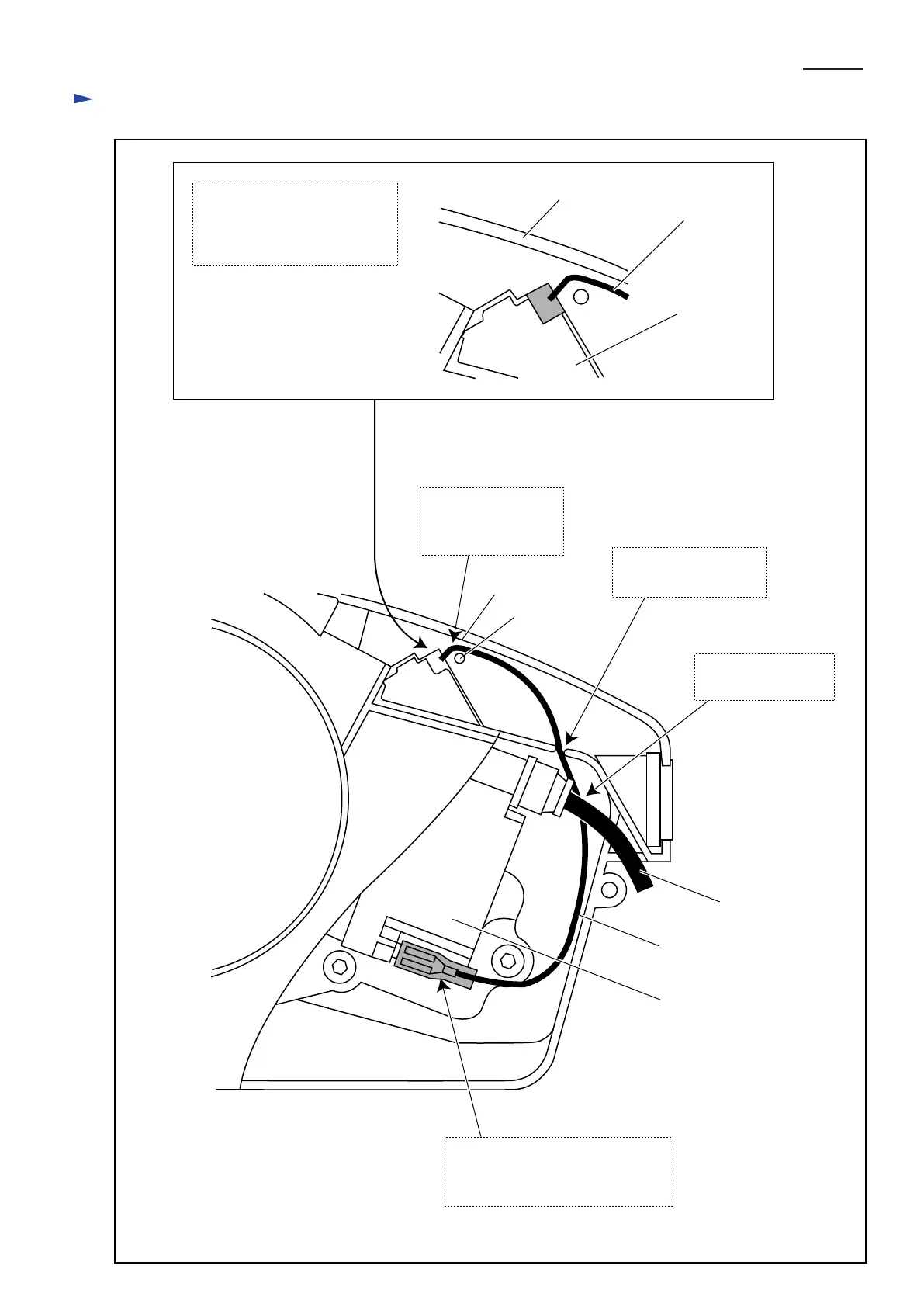

Wiring diagram
Baffle plate
Route the lead wire through
the space (the shaded portion)
between the main housing and
the baffle plate.
Main housing
Inside wall
Pin
Route the lead wire
under the tubes.
Route the lead wire
between the pin and
the inside wall.
Assemble the insulated receptacle
to the ignition coil complete as
illustrated here.
Fix the lead wire with
the lead wire holder.
Tube
Lead wire
Ignition coil complete
