Makita DF331D Repair Manual

October 2015

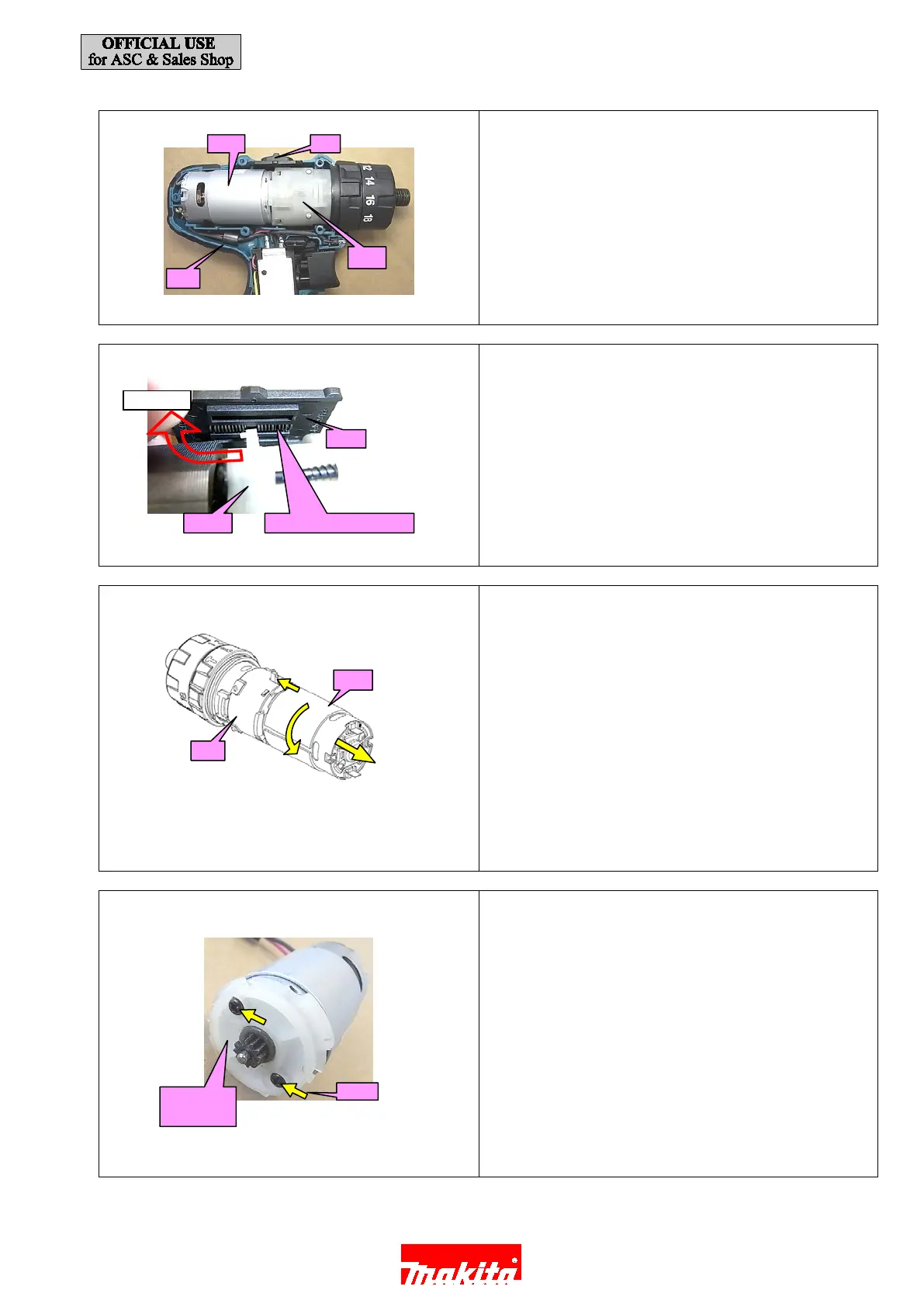

2. Remove Gear ass'y (11), Motor (12) and Speed change
lever (1) from Housing L (14) at a time.
Figure 10
3. Remove Speed change lever ass’y (1) from Gear ass'y
(11).
Note: Be careful not to lose Compression springs 4.
Figure 11
4. Set the speed change lever of Gear ass’y (11) to High
speed mode.
Turn DC Motor (12) counterclockwise to pull it out.
Figure 12
5. Remove Motor bracket by unscrewing two M3x6 Pan
head sc
rews (13) when you replace DC Motor.
Figure 13
(14)
(1)
(11)
(12)
Remove
(1)
(11)
Compression spring 4
(11)
(12)
(13)
Motor
bracket
11 / 18

Makita DF331D Specifications

General

Voltage	10.8V
Battery Type	Li-ion
Max Torque	30 Nm
Chuck Capacity	0.8 - 10 mm
Max. in steel	10 mm
Max. in wood	21 mm
Max Torque S/H	14 / 30 Nm
Length	189 mm
Weight	1.1 kg
Type	Drill Driver
Net weight	1.1 kg
