8 ENGLISH
Toremovethedriverbit,pullthesleeveinthedirection
of the arrow and pull the driver bit out.
NOTE: If the driver bit is not inserted deep enough
into the sleeve, the sleeve will not return to its original
position and the driver bit will not be secured. In this
case, try re-inserting the bit according to the instruc-
tions above.
NOTE:Afterinsertingthedriverbit,makesurethatit
isrmlysecured.Ifitcomesout,donotuseit.

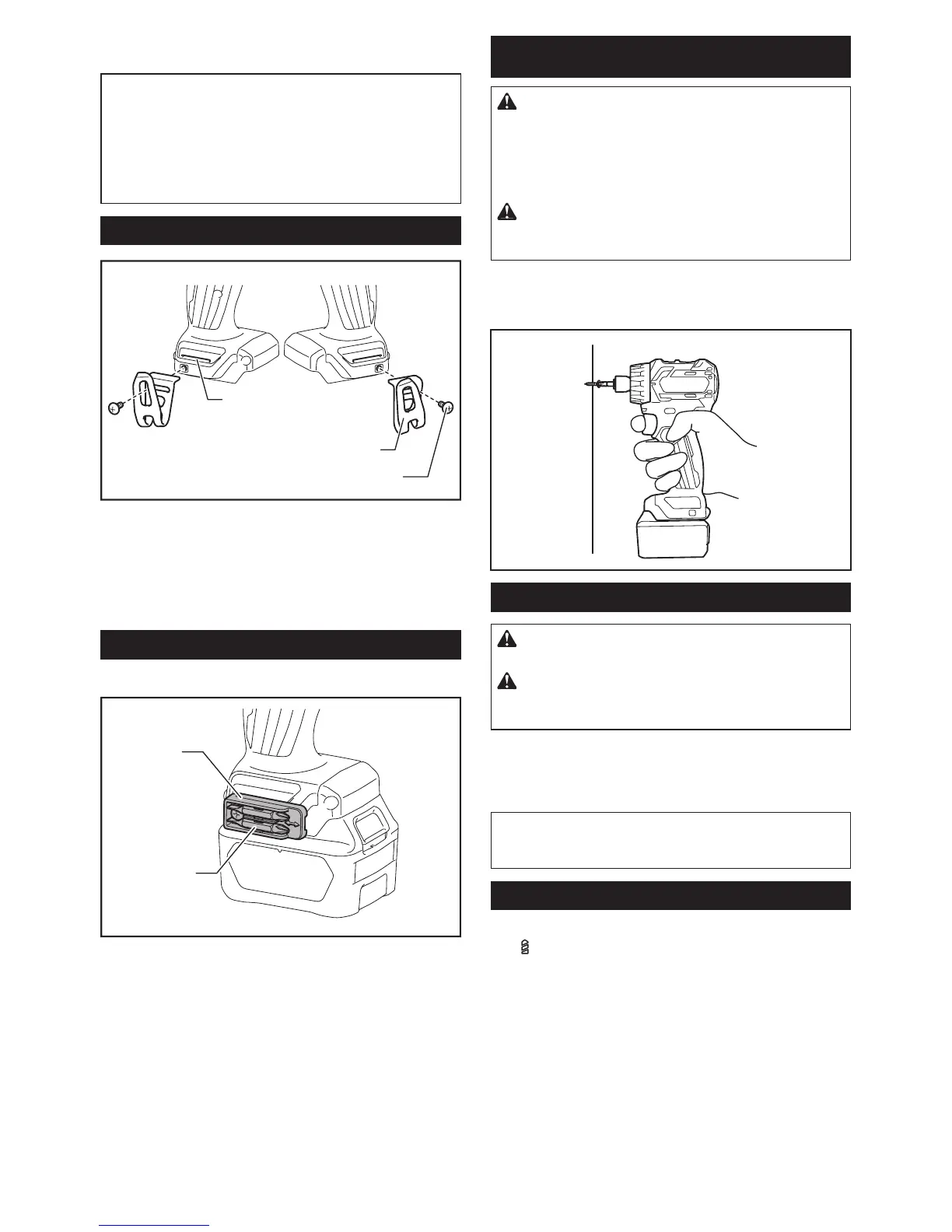

Installing hook
1
2
3
►1. Groove 2. Hook 3. Screw
Thehookisconvenientfortemporarilyhangingthetool.
Thiscanbeinstalledoneithersideofthetool.Toinstall
the hook, insert it into a groove in the tool housing on
eithersideandthensecureitwithascrew.Toremove,
loosen the screw and then take it out.
Installing driver bit holder
Optional accessory
1
2
►1. Driver bit holder 2. Driver bit
Fit the driver bit holder into the protrusion at the tool foot
on either right or left side and secure it with a screw.
When not using the driver bit, keep it in the driver bit
holders. Driver bits 45 mm-long can be kept there.
OPERATION
CAUTION: Always insert the battery cartridge
all the way until it locks in place. If you can see
the red part on the upper side of the button, it is not
locked completely. Insert it fully until the red part can-
not be seen. If not, it may accidentally fall out of the
tool,causinginjurytoyouorsomeonearoundyou.
CAUTION: When the speed comes down
extremely, reduce the load or stop the tool to
avoid the tool damage.
Holdthetoolrmlywithonehandonthegripandthe
other hand on the bottom of the battery cartridge to
control the twisting action.
Screwdriving operation
CAUTION: Adjust the adjusting ring to the
proper torque level for your work.
CAUTION: Make sure that the driver bit is
inserted straight in the screw head, or the screw
and/or driver bit may be damaged.
Placethepointofthedriverbitinthescrewheadand
apply pressure to the tool. Start the tool slowly and then
increase the speed gradually. Release the switch trigger
as soon as the clutch cuts in.
NOTE: When driving wood screw, pre-drill a pilot hole
2/3thediameterofthescrew.Itmakesdrivingeasier
and prevents splitting of the workpiece.
Drilling operation
First,turntheadjustingringsothatthepointerpointsto
the marking.Thenproceedasfollows.
Drilling in wood
When drilling in wood, the best results are obtained with wood
drillsequippedwithaguidescrew.Theguidescrewmakes
drilling easier by pulling the drill bit into the workpiece.
Drilling in metal
Topreventthedrillbitfromslippingwhenstartinga
hole, make an indentation with a center-punch and
hammeratthepointtobedrilled.Placethepointofthe
drill bit in the indentation and start drilling.

Makita DF332D Specifications

General

Soft grip	Yes
Product design	Pistol grip drill
Number of gears	2
Torque settings	21
Chuck capacity (max)	10 mm
Chuck capacity (min)	0.8 mm
Sound pressure level	72 dB
Idle speed (1st gear)	450 RPM
Idle speed (2nd gear)	1500 RPM
Drilling diameter in wood (max)	28 mm
Maximum torque (hard applications)	35 N⋅m
Maximum torque (soft applications)	21 N⋅m
Number of batteries included	2 pc(s)
Power source	Battery
Battery voltage	10.8 V
Battery capacity	2 Ah

Weight and Dimensions

Depth	154 mm
Width	66 mm
Height	236 mm
Weight	1200 g
