Makita DLS714 User Manual

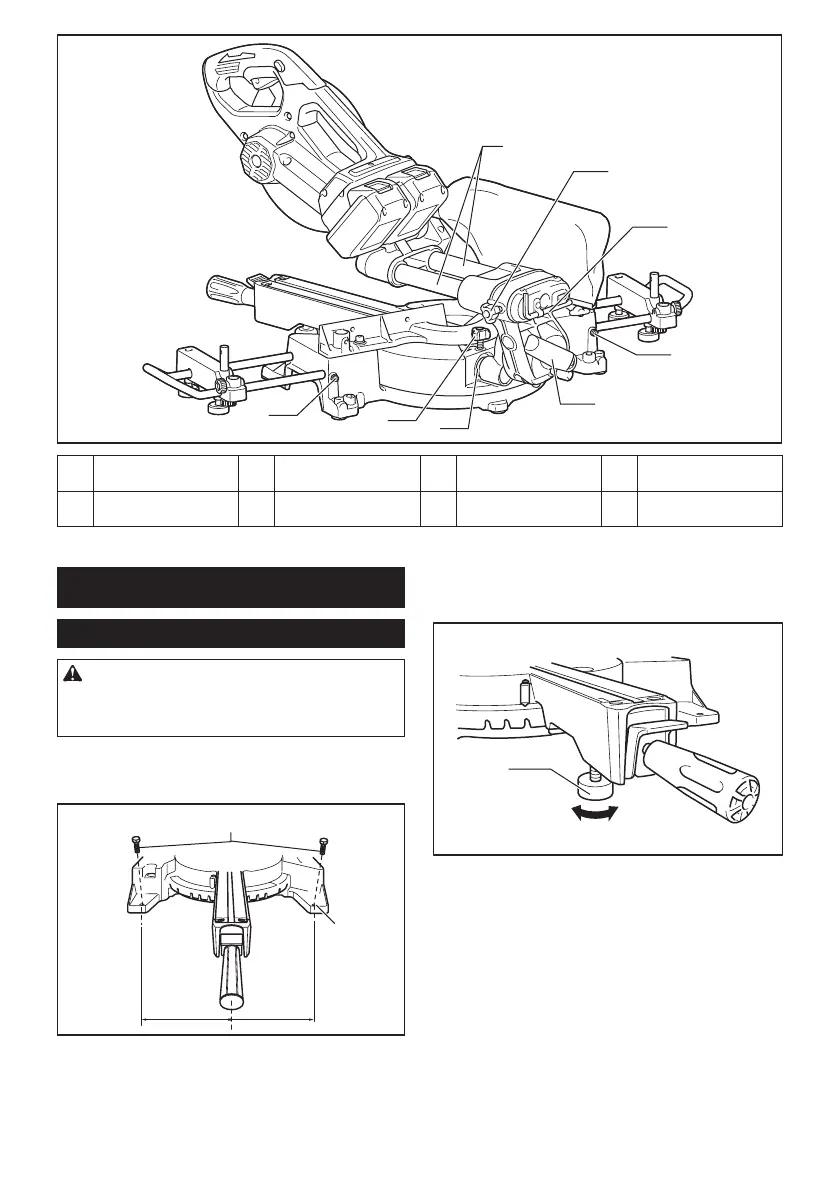

8 ENGLISH
22
23
24
25
26
27
28
25
22 Slide pole (upper) 23 Thumb screw (for lock-
ing upper slide pole)
24 Hex wrench 25 Clamp screw (for locking
holder)
26 Lever (for bevel angle
adjustment)
27 Slide pole (lower) 28 Thumb screw (for lock-
ing lower slide pole)
- -
INSTALLATION
Bench mounting
WARNING: Ensure that the tool does not
move on the supporting surface. Movement of the
miter saw on the supporting surface while cutting may
result in loss of control and serious personal injury.
1. Fix the base to a level and stable surface, screw-
ing with two bolts. This helps to prevent from tipping and
possible injury.
1
181 mm 181 mm
ɸ8.5x 2
► 1. Bolt
2. Turn the adjusting bolt clockwise or counterclock-
wise so that it comes into a contact with the oor sur-
face to keep the tool stable.
1
► 1. Adjusting bolt

Makita DLS714 Specifications

General

Blade Diameter	190 mm
Max Cutting Capacity at 90°	52 x 300 mm
Max Cutting Capacity at 45°	52 x 212 mm
Power Source	Corded Electric
Bore Diameter	20 mm
Voltage	240 V
Maximum cutting depth at 90°	52 mm
Maximum cutting depth at 45°	52 mm
Bevel Capacity	45° left and right
