P 3/ 12

Repair

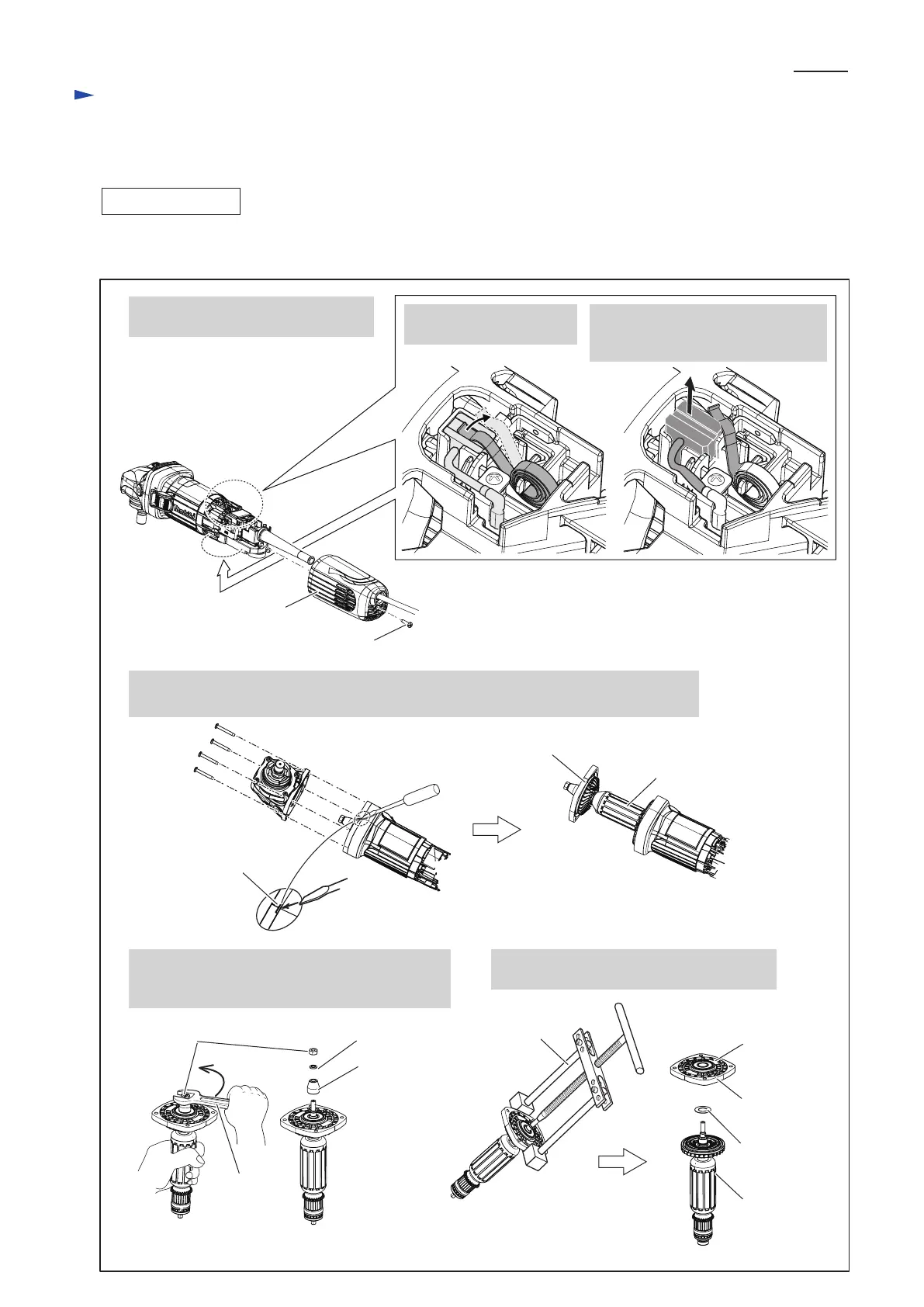

[3] DISASSEMBLY/ASSEMBLY

[3] -2. Armature, Spiral bevel gear [small one]

DISASSEMBLING

1. Remove Rear cover by unscrewing

one 4x18 Tapping screw.

(1) Remove Spiral bevel gear (small) from the drive end of Armature as drawn in Fig. 2.

4x18 Tapping screw

4. Unscrew four Tapping screws. Then separate Gear housing cover from Motor housing

while applying a slotted screwdriver to the groove on Gear housing cover.

Rear cover

2. Shift Spiral spring from

Carbon brush top.

3. Disconnect Carbon brush from

commutator by pulling up.

Note: No need to remove in this step.

Fig. 2

Groove on

Gear housing cover

Armature

Wrench 10

Flat washer 12

Gear housing

cover

Ball bearing

6001LLB

5. Remove M6 Hex nut to turn it with Wrench 10

counterclockwise. Then, remove Flat washer 6

and small Spiral bevel gear from Armature.

6. Remove Gear housing cover with 1R045.

Then, remove Flat washer 12.

Flat washer 6

Spiral bevel

gear (small)

M6 Hex nut

Armature

1R045
