P 5 / 6
Repair

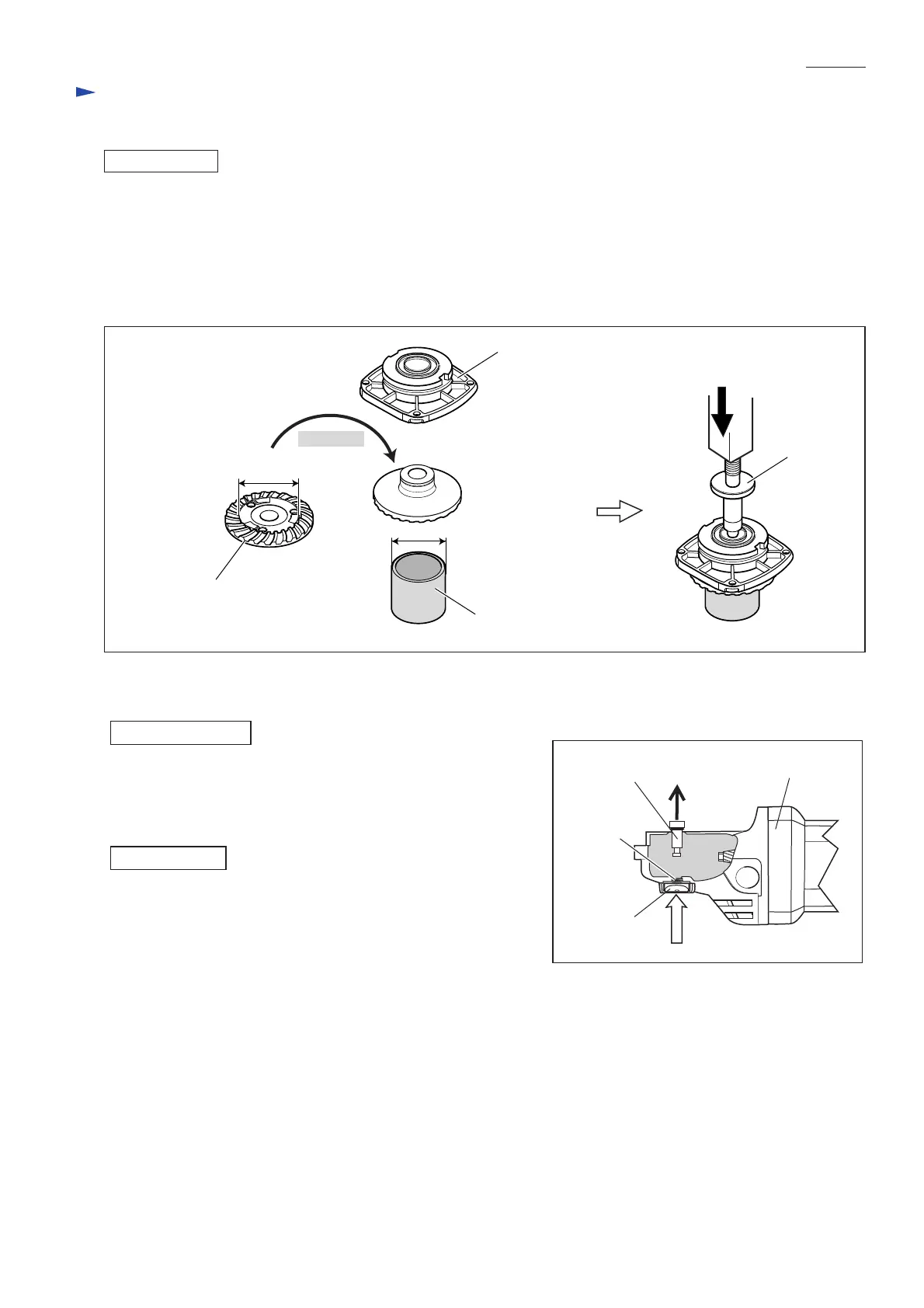

[3] -2. Large spiral bevel gear and Ball bearing 6203DDW (cont.)
Fig. 12
Bearing box
[3] -3. Shaft Lock
Fig. 13
1) Remove Bearing box from Gear housing.
2) Pull off Shoulder pin 5 with pliers while pushing Pin cap with a
finger. (Fig. 13)
Note: Do not pull off shoulder pin 5 without holding pin cap because
Compression spring 12 would sling Pin cap.
Follow the reverse of disassembling steps.
Note: Do not reinstall removed Pin cap because removal of Shoulder
pin 5 damages the inside surface of Pin cap. Be sure to remove
plastic dust of Pin cap from Shoulder pin 5 and to install it onto
a brand-new Pin cap.
DISASSEMBLING
ASSEMBLING
Pin cap
Gear housing
Shoulder pin 5
Compression
spring 12
Do the reverse of the disassembling steps.
How to assemble Spindle to Large spiral bevel gear
See Fig. 12.
1) In order not to damage the gear teeth of Large spiral bevel gear, put it on Ring spring setting tool B (No.1R165).
2) After assembling Ball bearing 6203DDW to Bearing box, put Bearing box on Large spiral bevel gear.
3) Then press-fit Spindle into Large spiral bevel gear using arbor press.
ASSEMBLING
Spindle
No.1R165
diameter 40mm
diameter 58mm
Large spiral bevel gear
Turn over.
To Next Page
