Makita HM1213C User Manual

6

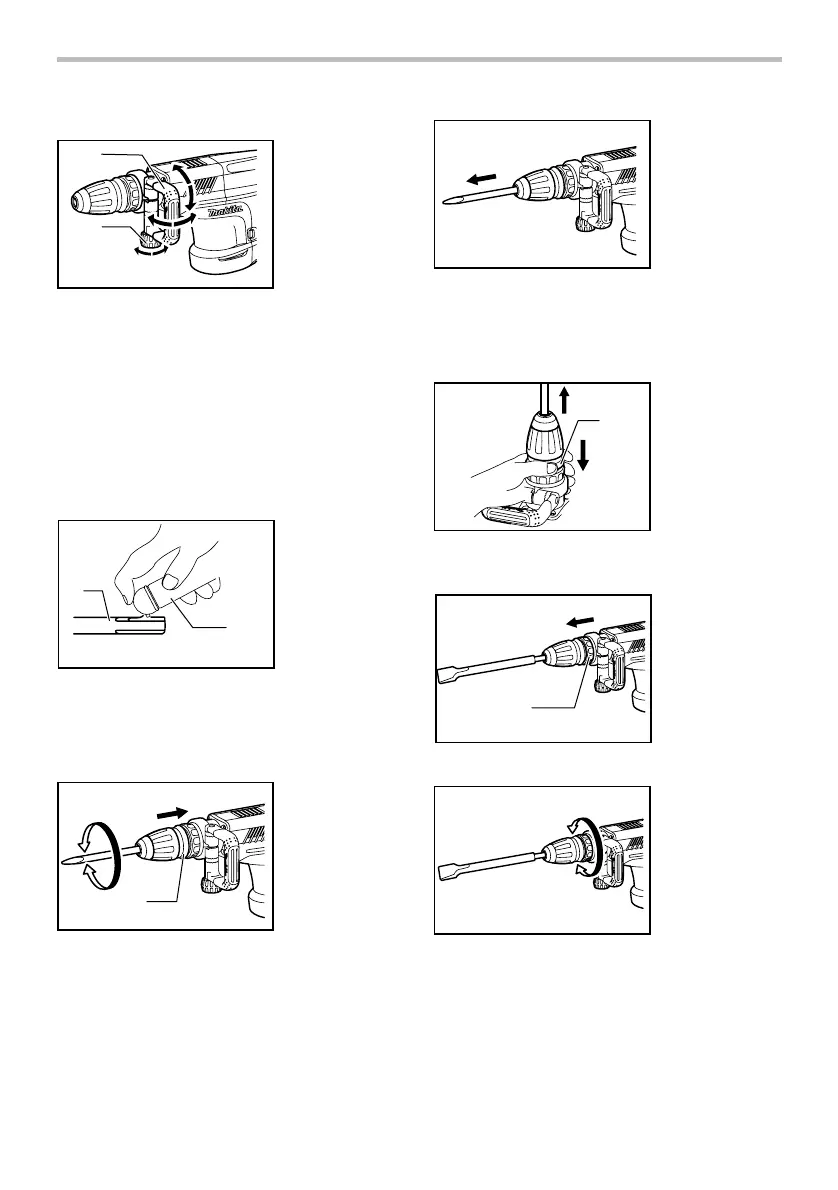

Side handle (auxiliary handle)
1
2
009945
The side handle can be swung 360° on the vertical and
secured at any desired position. It also secures at eight
different positions back and forth on the horizontal. Just
loosen the clamp nut to swing the side handle to a
desired position. Then tighten the clamp nut securely.
The side handle also can be mounted in the rear groove.
Loosen the clamp nut and widen the side handle base.
Slide the side handle back to the rear groove and secure
it with the clamp nut.
Installing or removing the bit
1
2
009664
Clean the bit shank and apply bit grease before installing
the bit.
Insert the bit into the tool. Turn the bit and push it in until
it engages.
1
009940
If the bit cannot be pushed in, remove the bit. Pull the
releasing cover down a couple of times. Then insert the
bit again. Turn the bit and push it in until it engages.
009941
After installing, always make sure that the bit is securely
held in place by trying to pull it out.
To remove the bit, pull the releasing cover down all the
way and pull the bit out.
1
009942
Bit angle
1
009943
009944
The bit can be secured at 12 different angles. To change
the bit angle, slide the change ring forward, then turn the
change ring to change the bit angle. At the desired angle,
slide the change ring back to the original position. The
bit will be secured in place.
1. Change ring
1. Releasing cover
1. Releasing cover
1. Bit shank
2. Bit grease
1. Side handle
2. Clamp nut

Makita HM1213C Specifications

General

Input power	1500 W
Impact energy (max)	18.6 J
Vibration level (chiseling)	7 m/s²
Toolholder	18 mm
Impact rate	1900 bpm
Product color	Black, Blue

Weight and Dimensions

Depth	149 mm
Width	576 mm
Height	265 mm
Weight	10800 g
