Repair

P 4 / 12

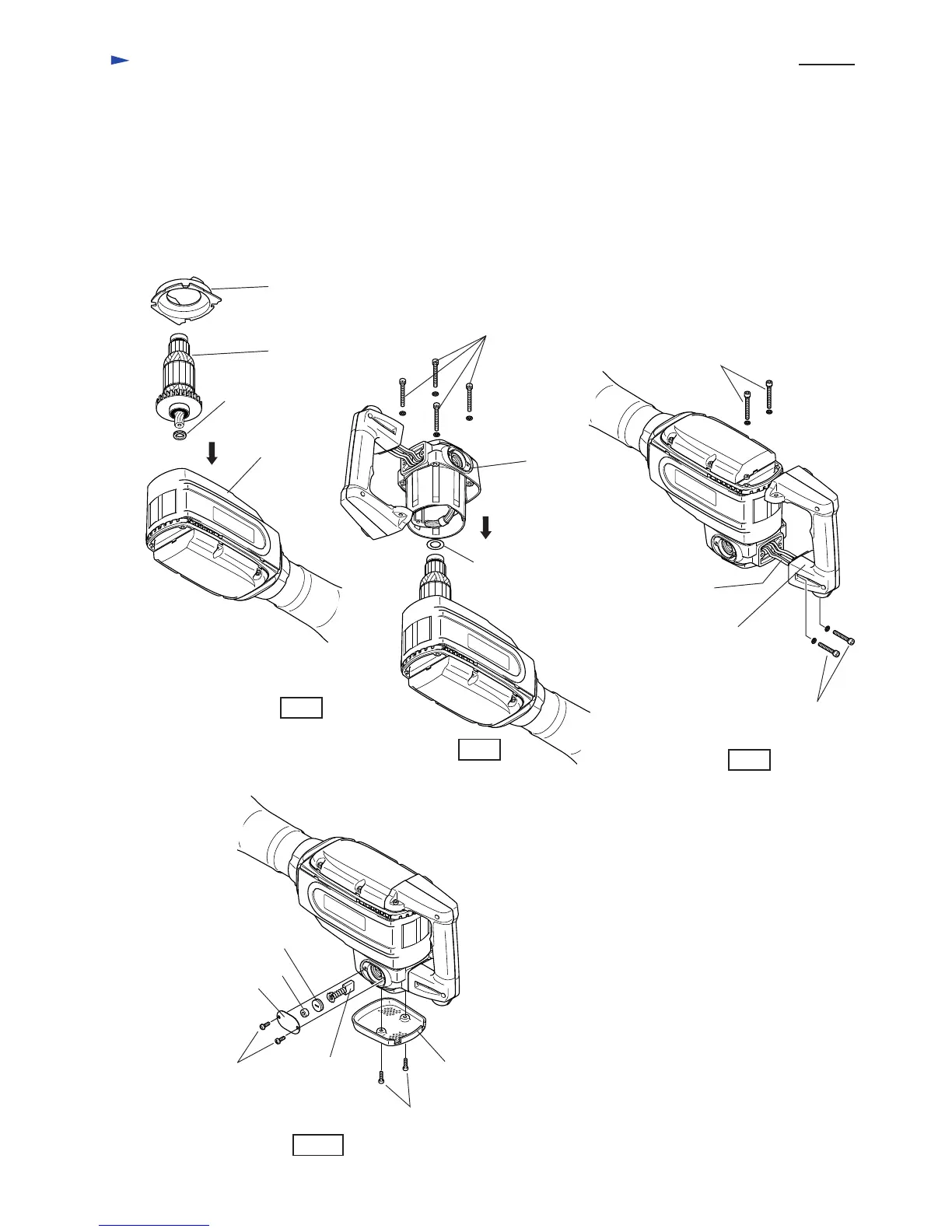

< 3 > Assembling motor section

Hex socket head

bolts M6x50

Fig. 8

Fig. 7

Hex socket head

bolts M6x40

Hex socket head

bolts M6x50

Fig. 9

Lead wires

Handle set

Pan head

screws M5x16

Holder cap plate

Rubber ring 6

Brush holder cap

Carbon brush

Rear cover

Hex socket head

bolts M5x18

Fig. 10

(1) Make sure that seal has been previously mounted to armature. Mount armature and then baffle plate to

crank housing. See Fig. 7.

(2) Make sure that flat washer 18 has been previously mounted in the bearing assembling hole of motor housing

(rear cover side). Mount motor housing to crank housing by pressing. Fasten it with hex socket head bolts

M6x50. See Fig. 8.

(3) Mount handle set. Fasten it with hex socket head bolts M6x50 and hex socket head bolts M6x40. See Fig. 9.

Be careful, not to pinch lead wires with handle set in this step.

Crank

housing Motor

housing

Armature

Baffle plate

(4) Mount rear cover and fasten it with hex socket head bolts M5x18. Mount carbon brushes and fasten it with

brush holder cap, rubber ring 6 and holder cap plate. See Fig. 10.

Flat washer 18

Seal
