Makita HM1801 User Manual

8

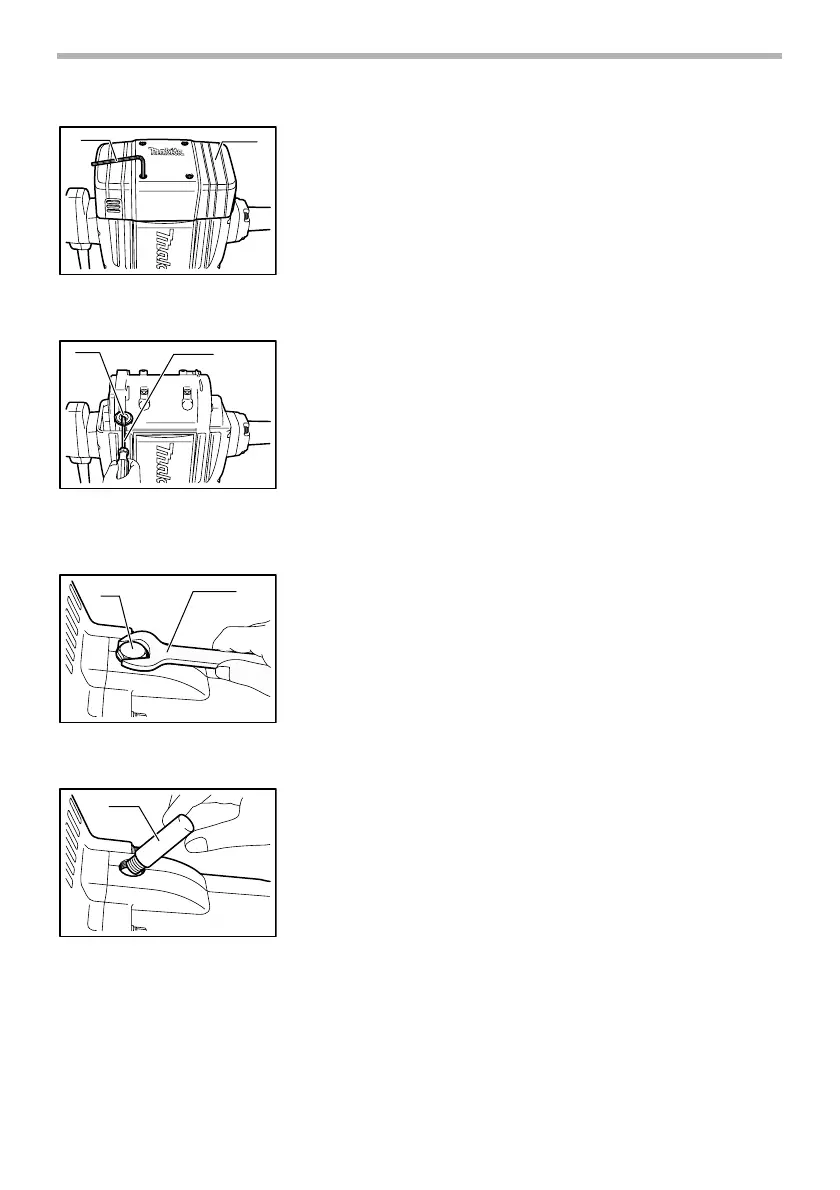

Use a hex wrench to remove the motor housing cover.
Use a screwdriver to remove the brush holder caps. Take out the worn carbon
brushes, insert the new ones and secure the brush holder caps.
Lubrication
This tool requires no hourly or daily lubrication because it has a grease-
packed lubrication system. It should be relubricated after every 6 months of
operation. Send the complete tool to Makita Authorized or Factory Service
Center for this lubrication service. However, if circumstances require that you
should lubricate it by yourself, proceed as follows.
First, switch off and unplug the tool.
Remove the cap using a wrench 23, then replenish with fresh grease (60 g).
Use only Makita genuine hammer grease (optional accessory). Filling with
more than the specified amount of grease (approx. 60 g) can cause faulty
hammering action or tool failure. Fill only with the specified amount of grease.
Reinstall the cap and secure with the wrench.
To maintain product SAFETY and RELIABILITY, repairs, any other mainte-
nance or adjustment should be performed by Makita Authorized Service Cent-
ers, always using Makita replacement parts.
1. Hex wrench 5
2. Motor housing cover
1
2
006203
1. Brush holder cap
2. Screwdriver
12
006204
1. Cap
2. Wrench 23
1
2
006205
1. Hammer grease
1
006206

Makita HM1801 Specifications

General

Product color	Black, Blue
Input power	2000 W
Impact energy (max)	63 J
Vibration level (chiseling)	16 m/s²
Toolholder	- mm
Impact rate	1100 bpm

Weight and Dimensions

Depth	148 mm
Width	824 mm
Height	624 mm
Weight	30000 g
