[3] DISASSEMBLY/ASSEMBLY
[3] -1. Drill Chuck (cont.)
DISASSEMBLING

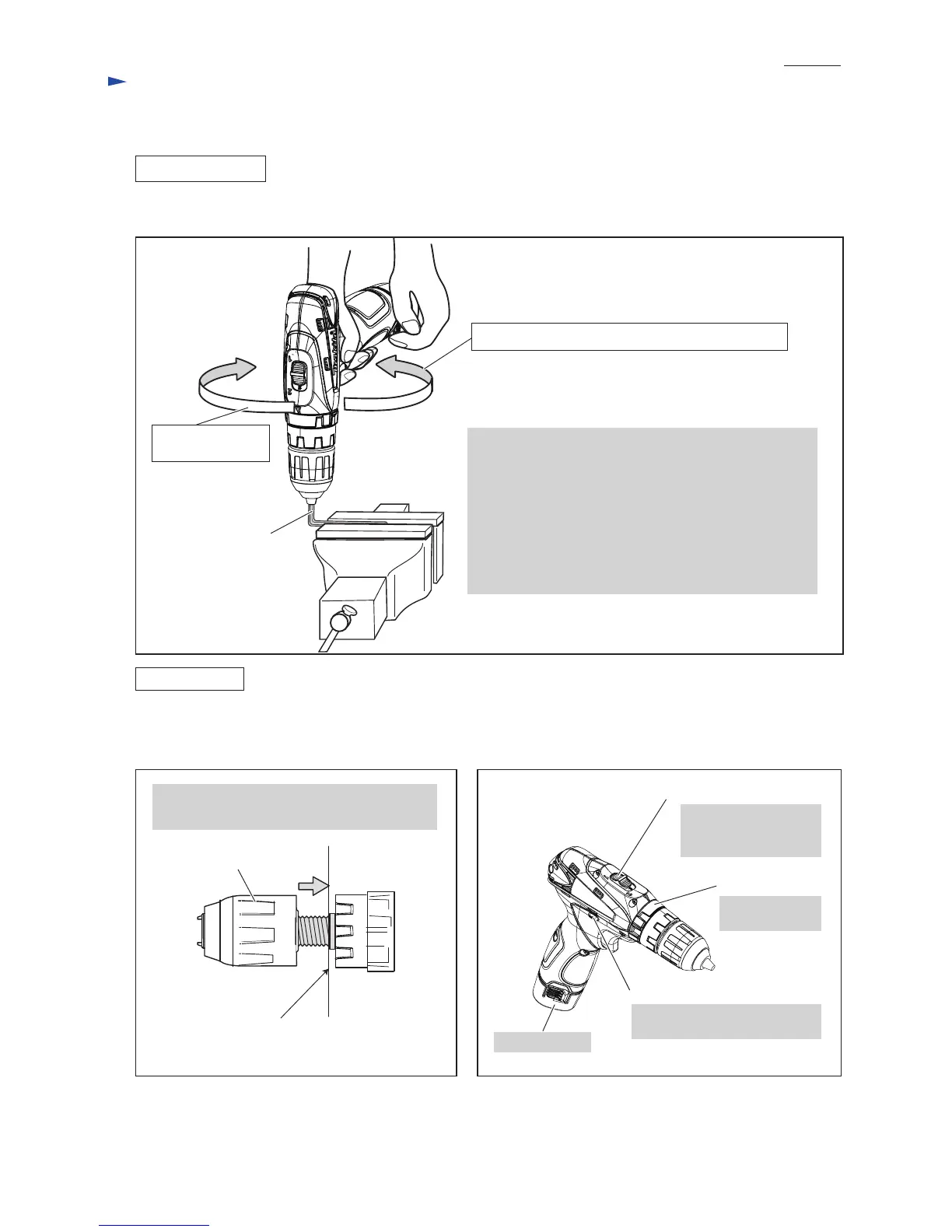

Hex wrench 8
Fig. 4
Clockwise* recoil
force of machine
(2) Remove Drill chuck. (Fig. 4)
Counterclockwise* force to be applied by operator
Fig. 5
Fig. 6
End of the threaded
portion of Spindle
Drill chuck
(1) Set the machine. (Fig. 5 and 6)
(2) Set Hex wrench 8 to vise and described in Fig. 3.
Turn Drill chuck clockwise by hand until it sits
on the end of the threaded portion of Spindle.
Attach Battery.
F/R change lever
Set F/R Change lever to
Forward (clockwise) rotation.
Set Speed change lever
to Low speed mode
designated with 1.
Set Change ring
to Drill mode.
Speed change lever
Change ring
ASSEMBLING
Repair
P 3/ 11
*Note: The rotational direction is viewed from operator.
1. Hold Hex wrench 8 with Drill chuck and grip Machine.
Important:
Grip Machine tightly with both hands to provide the
sufficient counterclockwise* force against clockwise*
recoil force of Machine.
2. Pull Switch trigger slowly.
3. Spindle rotates counterclockwise* and consequently
Drill chuck is removed from spindle.
To Next Page
