Makita HR4003C User Manual

9

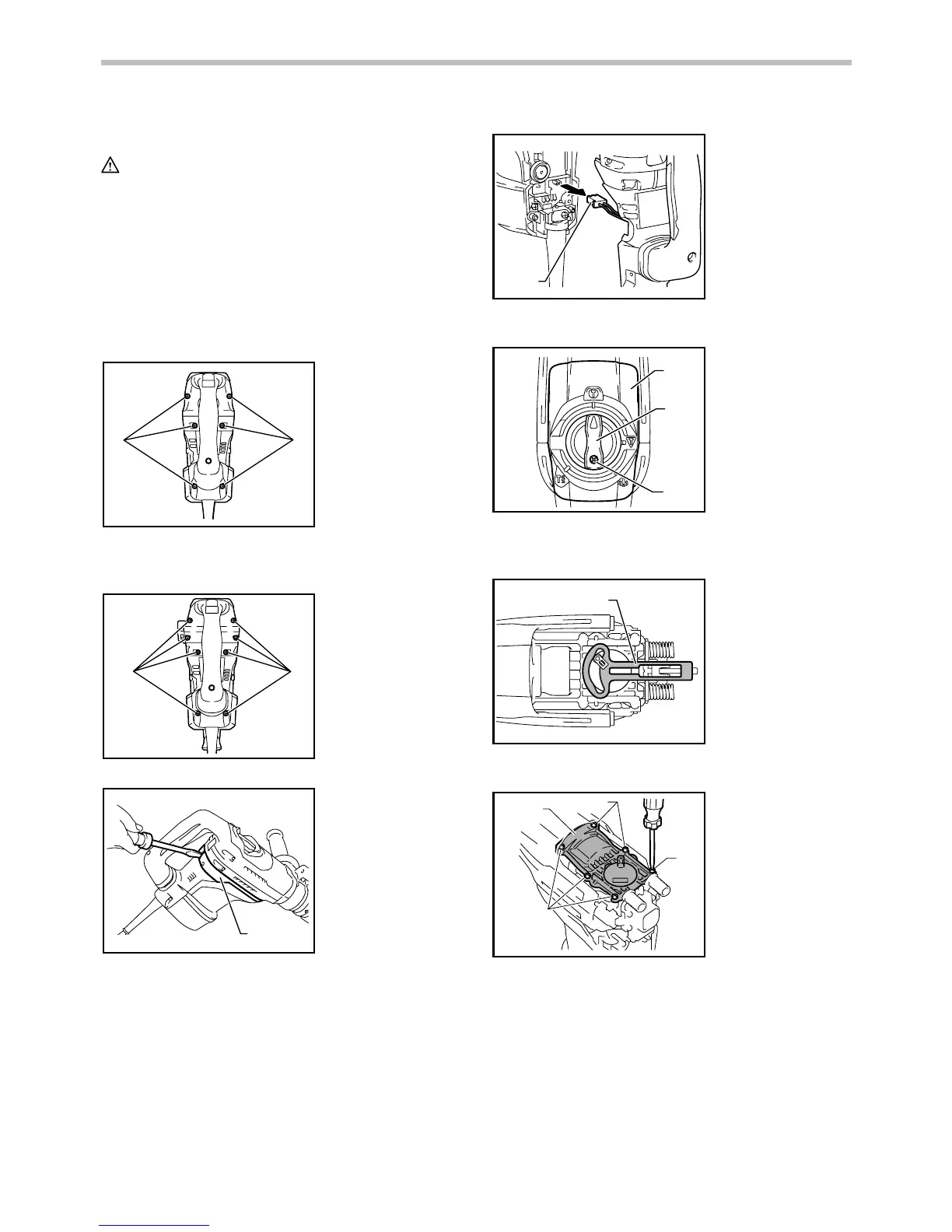

Lubrication
CAUTION:
• This servicing should be performed by Makita
Authorized Service Centers only.
• Do not perform lubrication just after the operation,
wait until the tool cools down. Otherwise skin burn
may result.
This tool requires no hourly or daily lubrication because
it has a grease-packed lubrication system. However, it is
necessary to replace grease and carbon brushes
periodically for tool's long life.
1
1
014035
(For model HR4003C, HR5202C) Loosen the six screws
and remove the handle.
11
014037
1
014075
(For model HR4013C, HR5212C) Loosen the eight
screws. And remove the guard cover as shown in the
figure. And then remove the handle.
1
014036
Remove the connector by pulling it.
3
1
2
014038
Loosen the screws and remove the change lever.
Remove the crank cap cover.
1
014039
Remove the control plate.
1
1
1
2
014092
Loosen the six screws and remove the crank cap. Rest
the tool on the table with the bit end pointing upwards.
This will allow the old grease to collect inside the crank
housing.
1. Screws
2. Crank cap
1. Control plate
1. Change lever
2. Screw
3. Crank cap cover
1. Connector
1. Guard cover
1. Screws
1. Screws

Makita HR4003C Specifications

General

Type	Hammer drill
Product color	Black, Green
Idle speed (max)	500 RPM
Idle speed (1st gear)	250 RPM
Impact rate (low speed)	1450 bpm
Impact rate (high speed)	2900 bpm
Drilling diameter in wood (max)	- mm
Drilling diameter in concrete (max)	40 mm
Chuck type	SDS Max
Product design	Pistol grip drill
Hammer drilling	Yes
Input power	1100 W
Cable length	5 m
Power source	AC

Weight and Dimensions

Depth	106 mm
Width	479 mm
Height	263 mm
Weight	6200 g
