P 2/16
Repair
Apply the following grease/ lubricant to the specific portions to protect parts and product
from unusual abrasion.
[1] NECESSARY REPAIRING TOOLS
CAUTION: Repair the machine in accordance with “Instruction manual” or “Safety instructions”.
[2] LUBRICATION

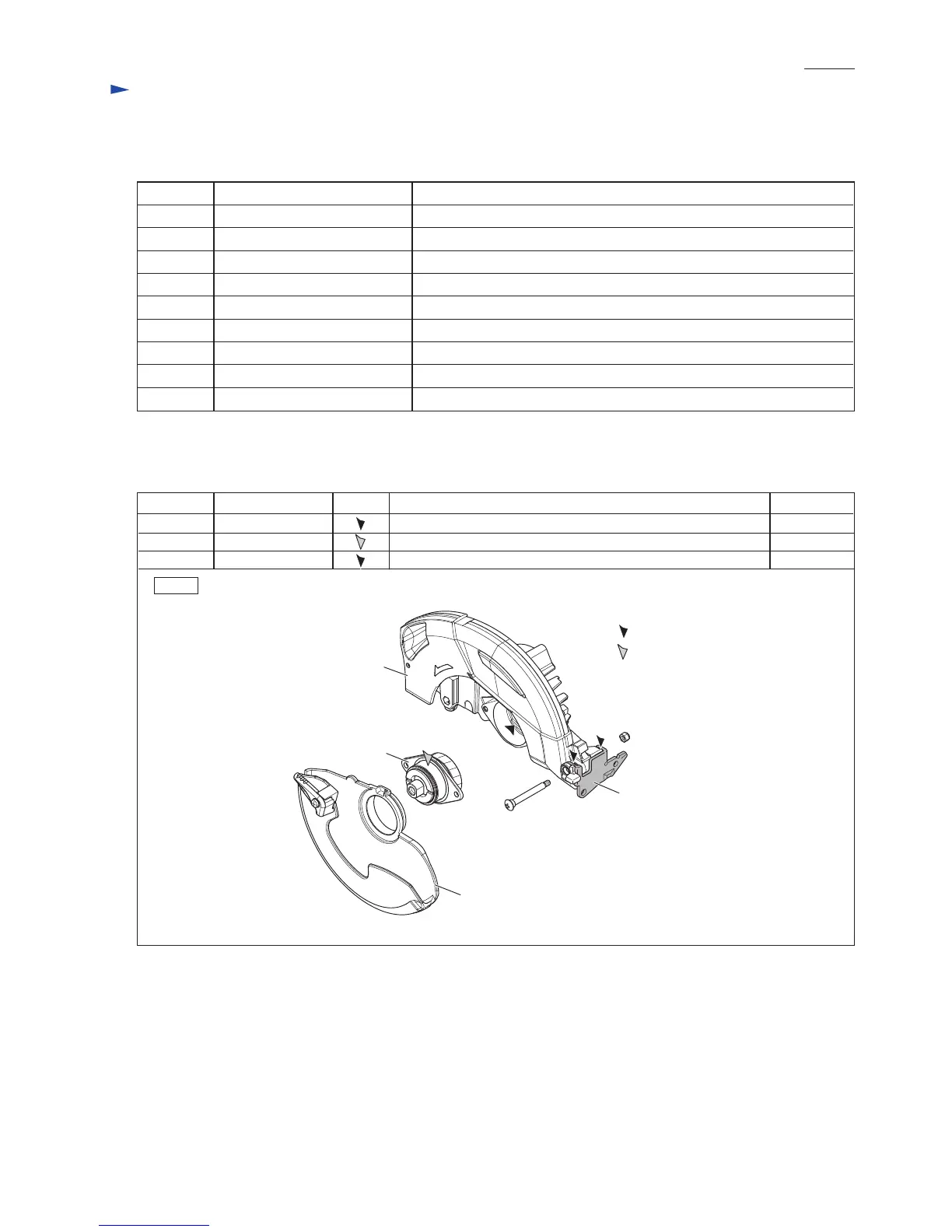

Fig. 1
Code No. Description Use for
1R003 Retaining ring S pliers ST-2N Removing/mounting Retaining ring S-42, holding Safety cover
1R032 Bearing setting plate 8.2 Removing Spindle from Helical gear
1R207 45-degree set square Adjusting accuracy of 45 degrees
1R208 90-degree set square Adjusting accuracy of 90 degrees
1R217 Ring 22 Supporting Helical gear when removing Spindle
1R228 1/4” Hex shank bit for M4 Disassembling/assembling Rear angular guide
1R269 Bearing extractor Removing Ball bearing 607ZZ from Spindle
1R280 Round bar for arbor 6-50 Removing Spindle from Helical gear
1R340 Bearing retainer wrench Removing/mounting Bearing retainer 23-36
Item No. Description Grease AmountPortion to lubricate
75
Makita Grease SG No.0
VG100
39
48
Angular guide Contact surface where (39) Blade case pivots
Blade case Gear room approx. 6 g
a little
a littleBearing box Drum portion where Safety cover pivots
75
Safety cover
39
48
To Next Page
