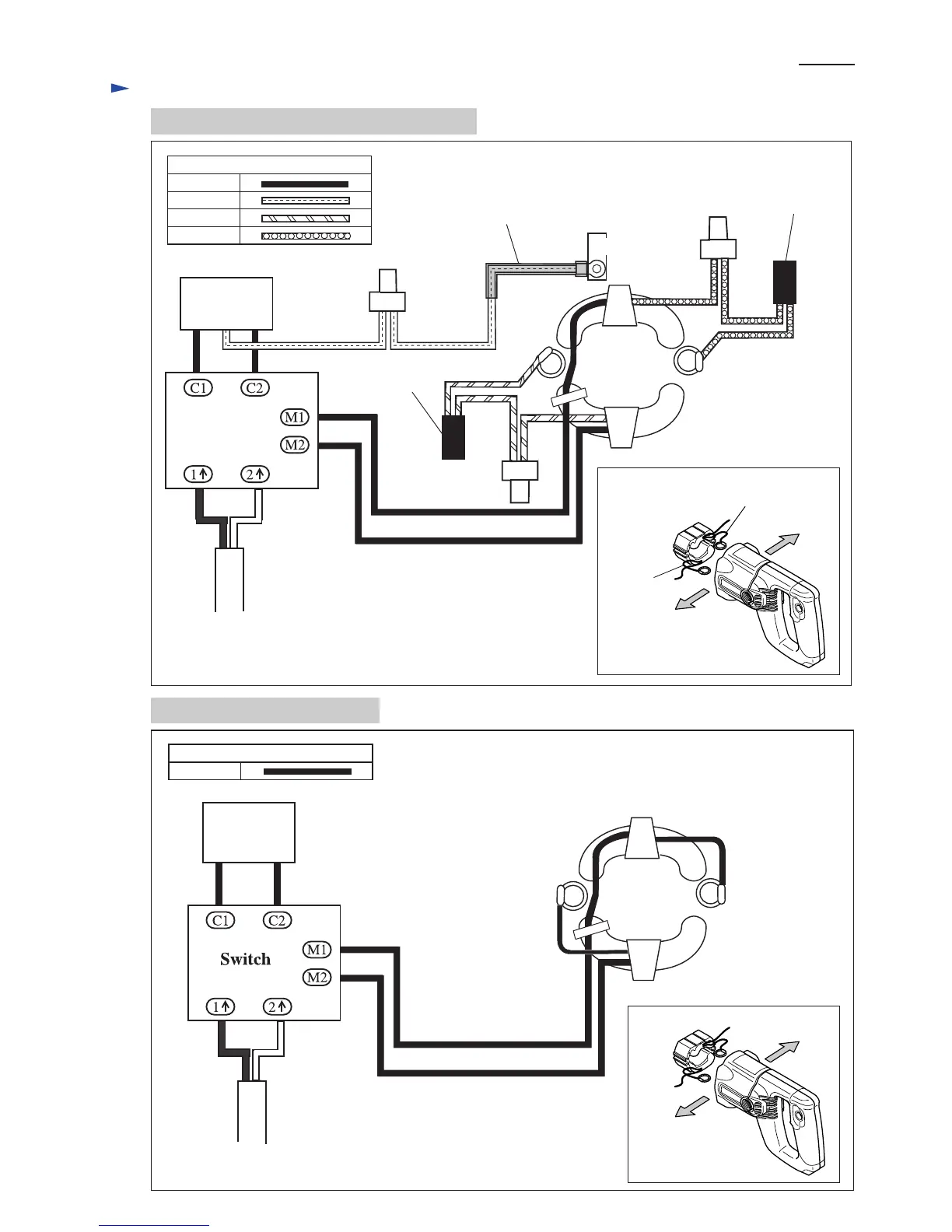

Circuit diagram
Black
Clear
Orange
Purple
Color index of lead wires' sheath
Taiwan, and low voltage of Great Britain
All other countries and areas
Field
Noise
suppressor
Field
Field core
Choke coil
Choke coil
*Left
*Right
*Left
*Left
*Right
*Right
Purple
lead wire
Orange
lead wire
Black
Color index of lead wires' sheath
Polyolefin heat-shrink tube
*Left
*Right
Switch
Noise
suppressor
