10 ENGLISH
3. Remove the sprocket cover then remove the saw
chain and guide bar from the tool body.
Installing the saw chain
To install the saw chain, perform the following steps:

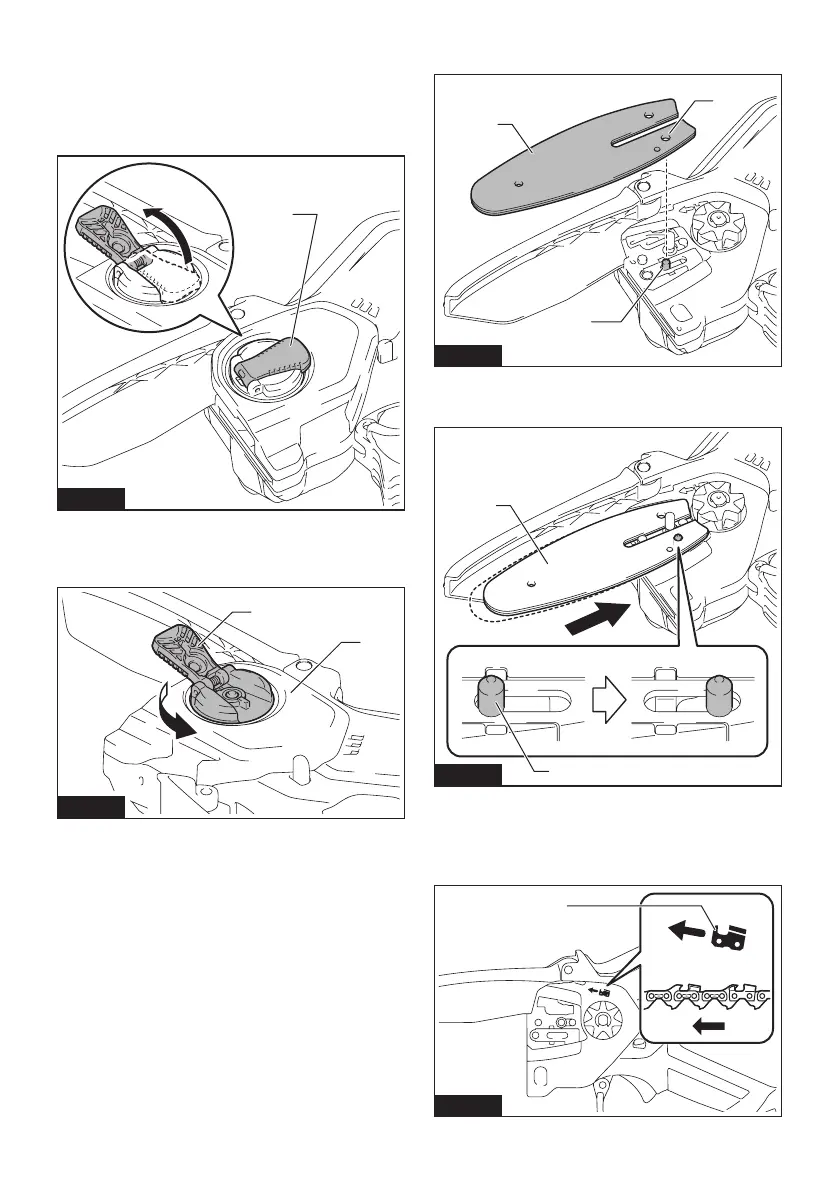

1. Pull the lever up.
1
Fig.8
► 1. Lever
2. Turn the lever counterclockwise until the sprocket
cover comes o.
1
2
Fig.9
► 1. Lever 2. Sprocket cover
3. Remove the sprocket cover.
4.
Align the hole on the guide bar with the pin on the tool
body, and then place the guide bar as shown in the gure.
1
3
2
Fig.10
► 1. Guide bar 2. Hole 3. Pin
5.
Slide the guide bar toward the sprocket to lock the pin.
1
2
Fig.11
► 1. Guide bar 2. Pin
6. Remove the guide bar from the tool body.
7.
Check the direction of the saw chain. Match the direc-
tion of the saw chain with that of the mark on the tool body.
1
Fig.12
► 1. Mark on tool body
