Makita XCV04 User Manual

9

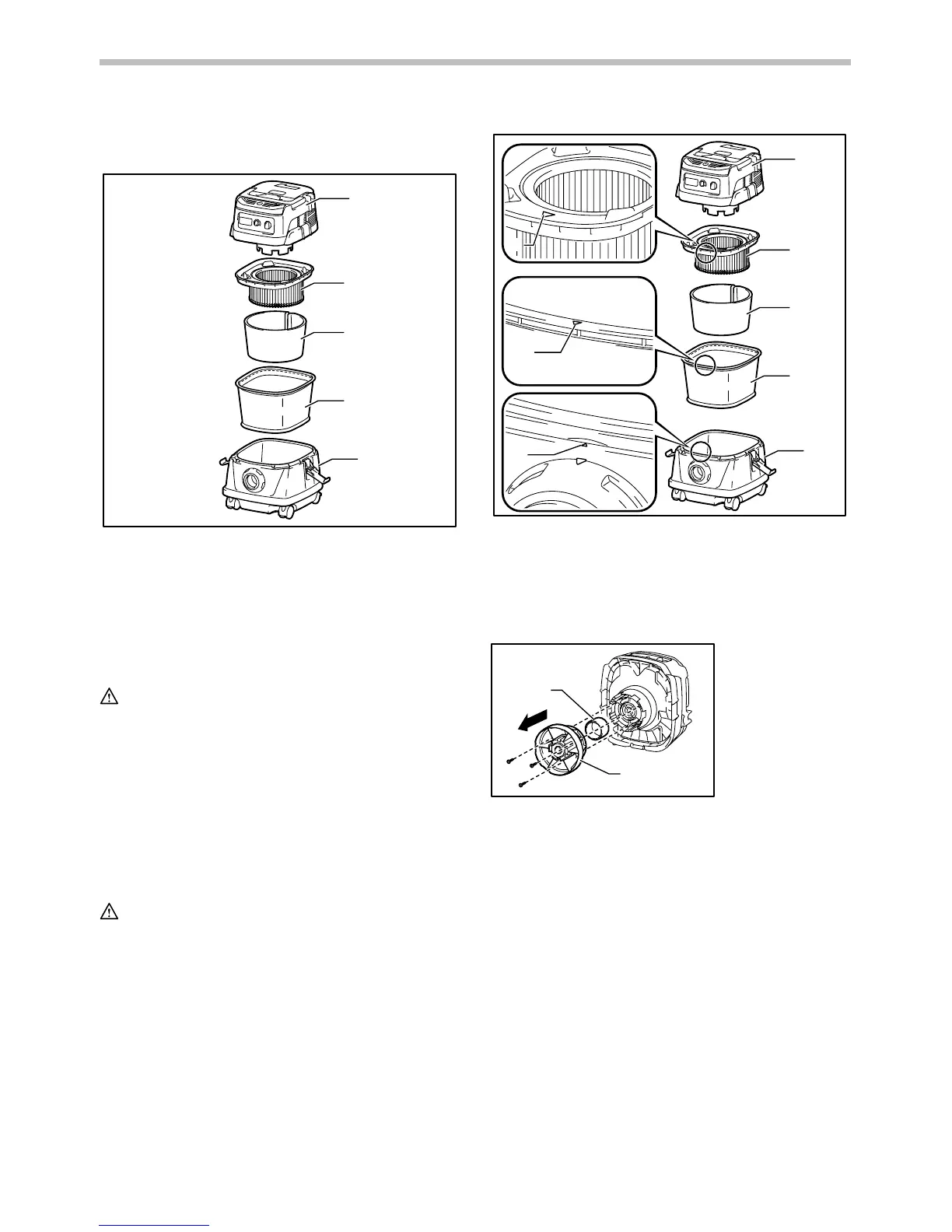

Model XCV04
(Powder filter (for dry dust) model)
1
2
3
4
5
015617
ASSEMBLY
CAUTION:
• Always be sure that the cleaner is
switched off, unplugged, and the
battery cartridge is removed before
carrying out any work on the cleaner.
• Always wear dust mask during
assembly or maintenance.
Installing the powder filter and
prefilter (for dry dust) (optional
accessory for cloth filter model)
CAUTION:
• Never pick up water or other liquids or
wet dusts when using the powder filter.
Picking up such things may cause the
powder filter breakage.
1
2
3
4
6
6
6
5
015534
1
2
015551
To use powder filter, remove the float cage
and float by removing the bolts.
Place the prefilter in the tank.
Next, mount the damper on the powder
filter and then place them in the prefilter.
When installing powder filter and prefilter,
align the mounting position marking on
each of them with that one at the top of the
tank.
Finally, mount the tank cover and lock it.
NOTE:
• Before using the powder filter, make
sure that prefilter and damper are
always used together. It is not allowed
to install powder filter solely.
1. Float
2. Float cage
1. Tank cover
2. Powder filter
3. Damper
4. Prefilter
5. Tank
6. Mounting position marking
1. Tank cover
2. Powder filter
3. Damper
4. Prefilter
5. Tank
