7 ENGLISH

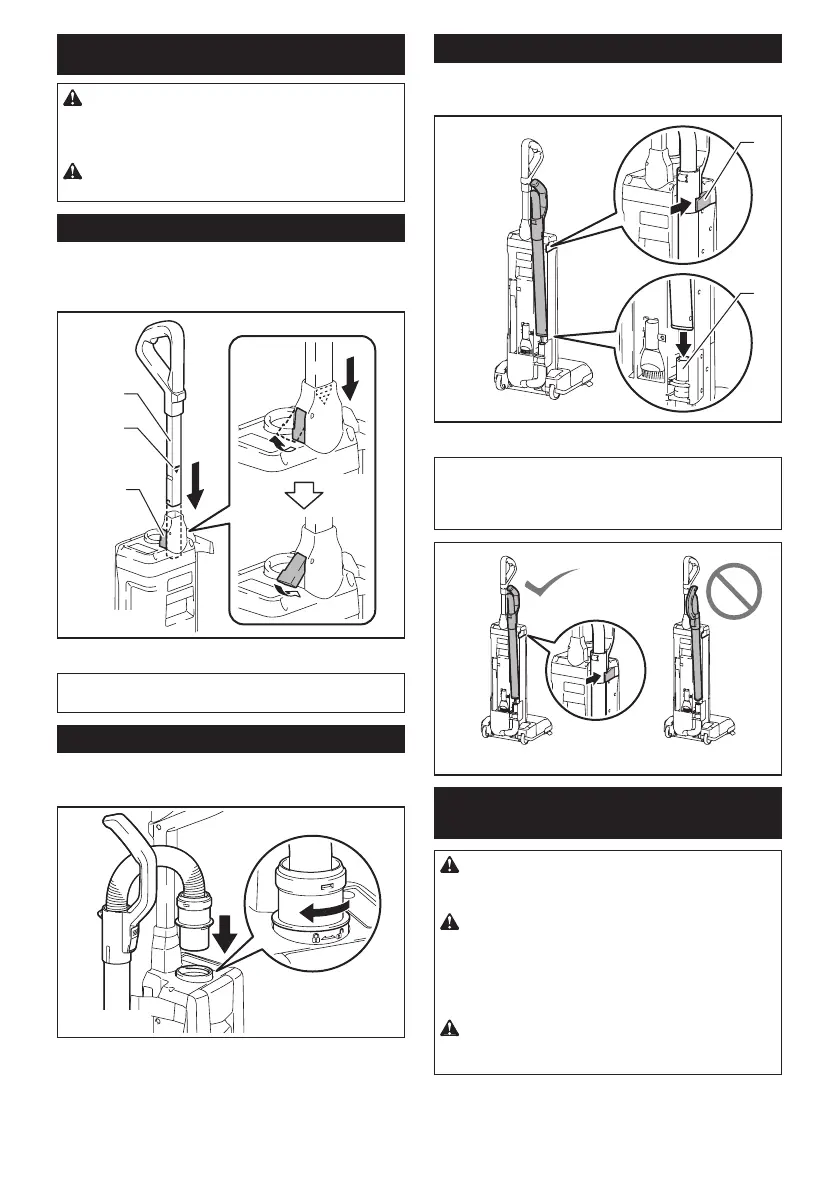

ASSEMBLY
CAUTION: Always be sure that the appli-
ance is switched o and the battery cartridge
is removed before carrying out any work on the
appliance.
CAUTION: Always wear dust mask during
assembly or maintenance.
Handle connecting
1. Insert the handle pole fully to the cleaner body as
shown in the gure.
2. Close the lock latch.
1
2
3
► 1. Handle pole 2. Red marking 3. Lock latch
NOTICE: Insert the handle fully until the red
marking cannot be seen.
Hose connecting
Insert the hose into the mounting port of the appliance
and turn the horse until it locks.
Pipe connecting
Insert the tip of the aluminum pipe to the joint, and then
attach the aluminum pipe to the pipe holder.
1
2
► 1. Joint 2. Pipe holder
NOTICE: Insert the aluminum pipe in correct
direction as shown in gure. Otherwise the pipe
holder will not be locked and the aluminum pipe may
come o.
Installing or removing battery
cartridge
CAUTION: Always switch o the appliance
before installing or removing of the battery
cartridge.
CAUTION: Hold the cleaner and the battery
cartridge rmly when installing or removing bat-
tery cartridge. Failure to hold the cleaner and the
battery cartridge rmly may cause them to slip o
your hands and result in damage to the cleaner and
battery cartridge and a personal injury.
CAUTION: Be careful not to pinch your n-
gers when opening or closing the battery cover.
Failure to do so may cause personal injury.
