13 ENGLISH

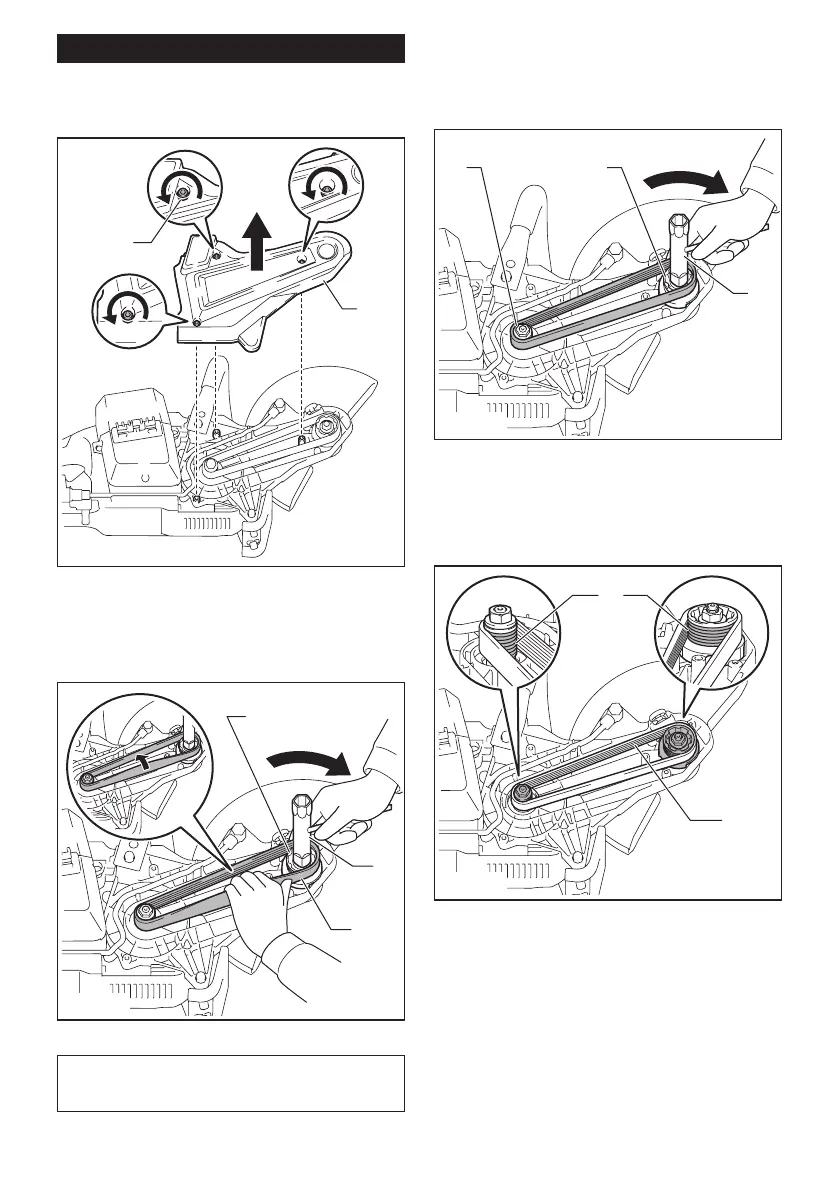

Changing the V-belt
1. Remove the battery cartridge and the wheel.
2. Loosen the hex socket bolts using the hex wrench
and then remove the cover .
1
2
1. Hex socket bolt 2. Cover
3. While twisting the V-belt inside, turn the bolt on the
pulley (large) clockwise using the box wrench.
The V-belt will deviate from the track and come o󰀨 as
you turn the bolt.
1
2
3
1. V-belt 2. Pulley (large) 3. Box wrench
NOTICE: Never turn the box wrench counter-
clockwise. Doing so loosen the bolt on the pulley
(large) and result in poor performance.
4. Hook the new V-belt to the pulley (small). Put the
other end of the V-belt onto the half periphery of the
pulley (large) and then turn the bolt on the pulley (large)
clockwise using the box wrench.
The V-belt will get on the track as you turn the bolt.
12
3
1. Pulley (small) 2. Pulley (large) 3. Box wrench
Make sure that all the guides on the internal circle of the
V-belt t into the rails on the pulleys. All the rails on the
pulley must support the guides on the V-belt. If there is
a rail which does not support the guide, the V-belt is not
properly installed.
1
2
1. Rail on the pulley 2. Guide on the V-belt
