6 ENGLISH

19 Slide pole (upper) 20 Thumb screw (for lock-

ing upper slide pole)

21 Hex wrench 22 Clamp screw (for locking

holder)

23 Lever (for bevel angle

adjustment)

24 Slide pole (lower) 25 Thumb screw (for lock-

ing lower slide pole)

- -

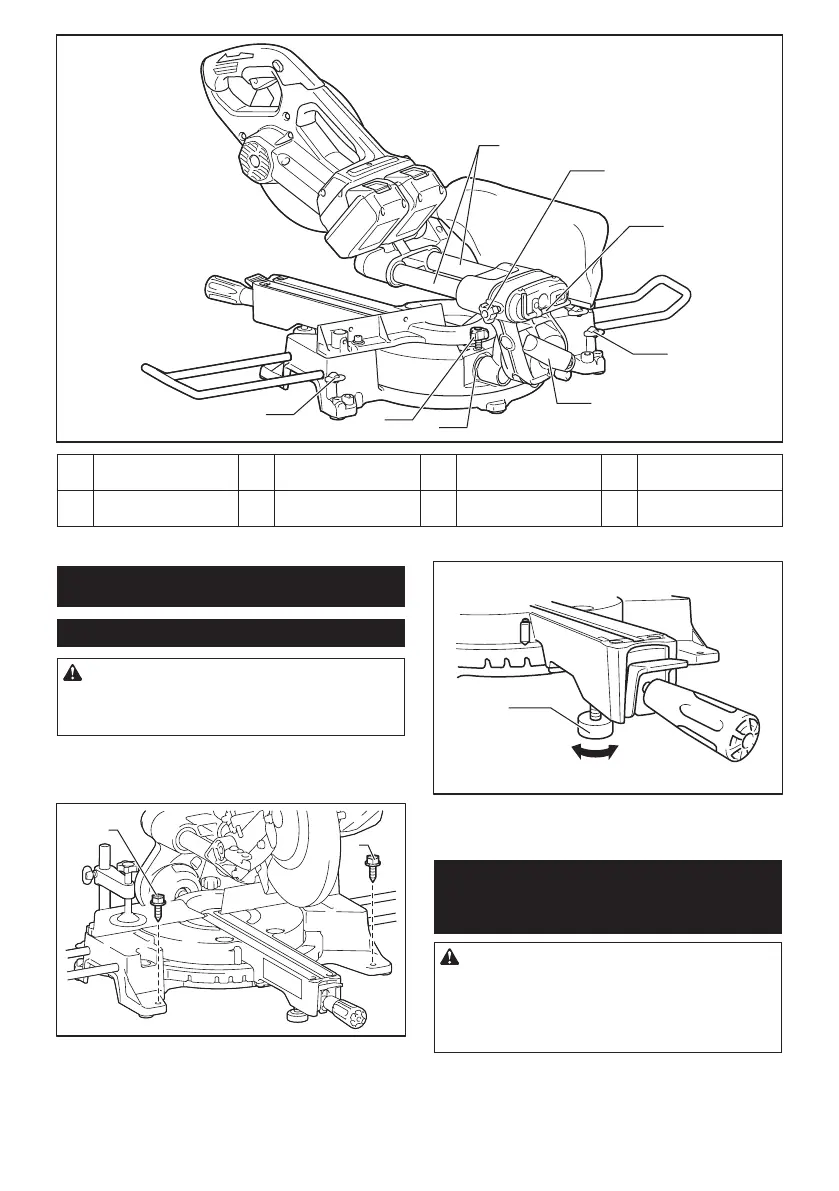

INSTALLATION

Bench mounting

WARNING: Ensure that the tool does not

move on the supporting surface. Movement of the

miter saw on the supporting surface while cutting may

resultinlossofcontrolandseriouspersonalinjury.

1. Fix the base to a level and stable surface, screw-

ing with two bolts. This helps to prevent from tipping and

possibleinjury.

1. Bolt

2. Turntheadjustingboltclockwiseorcounterclock-

wisesothatitcomesintoacontactwiththeoorsur-

face to keep the tool stable.

1.Adjustingbolt

FUNCTIONAL

DESCRIPTION

WARNING: Always be sure that the tool is

switched off and the battery cartridge is removed

before adjusting or checking the functions on

the tool. Failure to switch off and remove the battery

cartridgemayresultinseriouspersonalinjuryfrom

accidental start-up.
