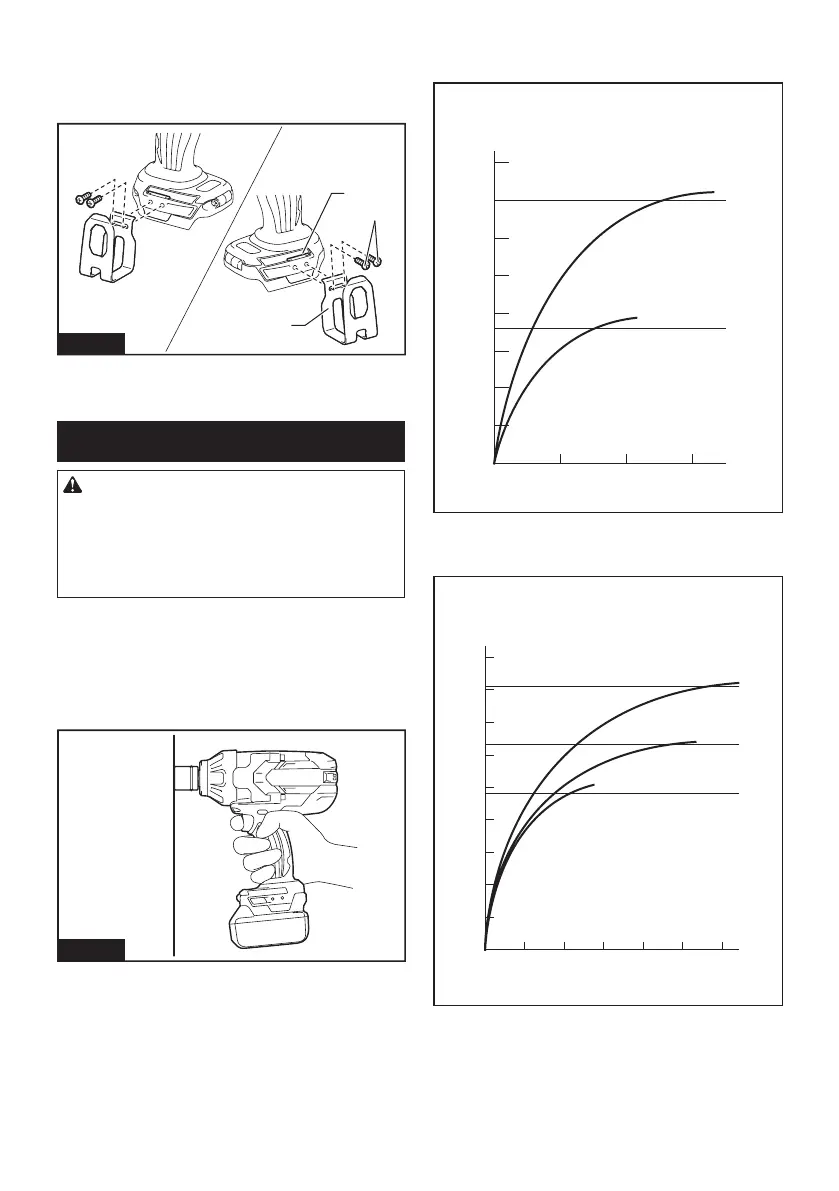

11 ENGLISH
The hook is convenient for temporarily hanging the tool.
This can be installed on either side of the tool. To install
the hook, insert it into a groove in the tool housing
on either side and then secure it with two screws. To
remove, loosen the screws and then take it out.
1
2
3
Fig.14
► 1. Groove 2. Hook 3. Screw
OPERATION
CAUTION: Always insert the battery cartridge
all the way until it locks in place. If you can see the
red indicator on the upper side of the button, it is not
locked completely. Insert it fully until the red indicator
cannot be seen. If not, it may accidentally fall out of
the tool, causing injury to you or someone around
you.
Hold the tool rmly and place the impact socket over
the bolt or nut. Turn the tool on and fasten for the proper
fastening time.
The proper fastening torque may di󰀨er depending upon
the kind or size of the bolt, the material of the workpiece
to be fastened, etc. The relation between fastening
torque and fastening time is shown in the gures.
Fig.15
Model XWT07 / XWT07XV
Proper fastening torque for standard bolt
1
2
N•m
(ft•lbs)
800
600
400
200
(150)
(300)
(440)
(590)
1023
0
M24(1″)
M24(1″)
M30(1-1/4″)
M30(1-1/4″)
1. Fastening time (second) 2. Fastening torque
Proper fastening torque for high tensile bolt
1023456
0
800
600
400
200
(150)
(300)
(440)
(590)
N•m
(ft•lbs)
2
1
M24(1″)
M24(1″)
M22(7/8″)
M22(7/8″)
M20(3/4″)
M20(3/4″)
1. Fastening time (second) 2. Fastening torque
