10
For tool with the knob
CAUTION:
• Be sure to re-install the knob after inserting new
carbon brush.
1
013310

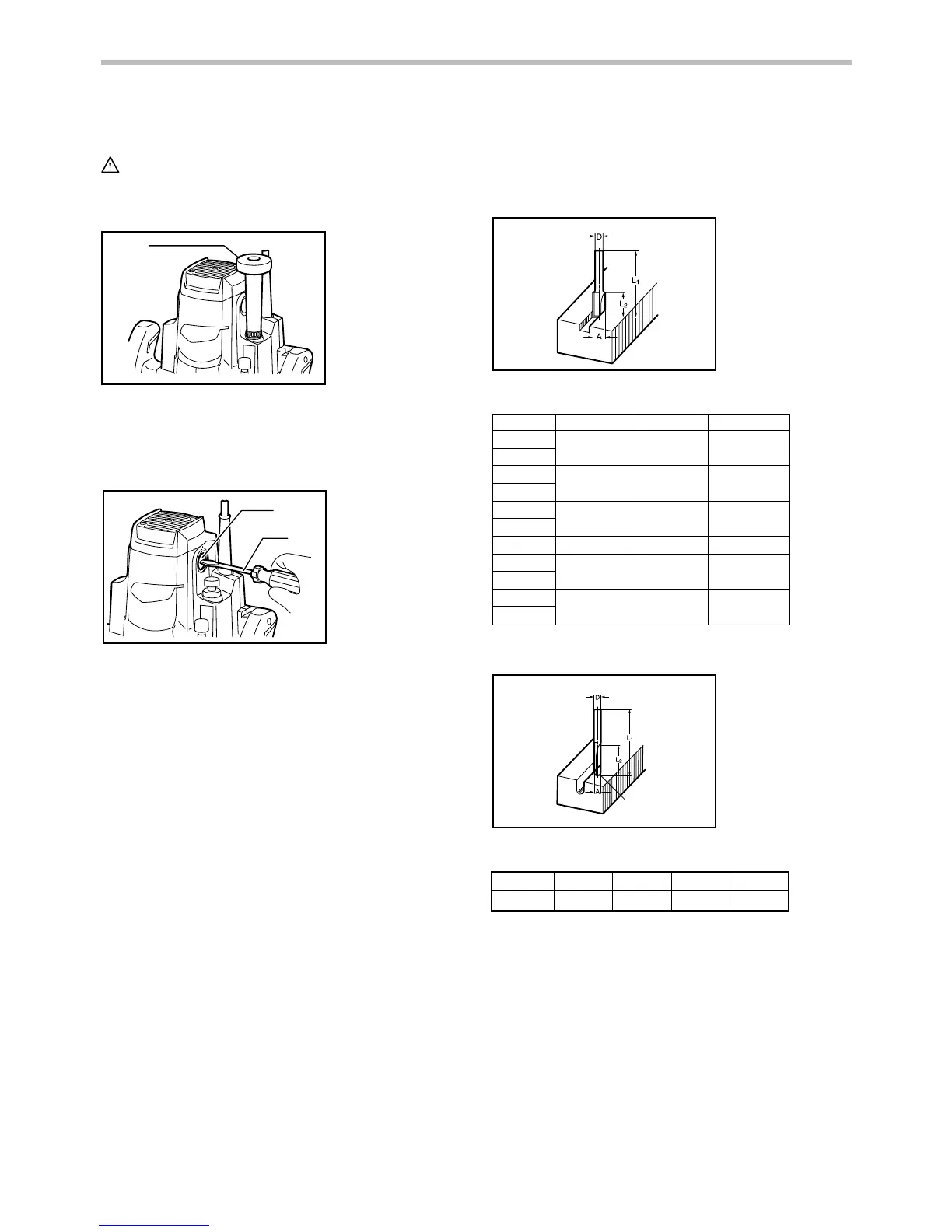

Release the lock lever and remove the knob by turning
it counterclockwise. The compression spring will come
out of the knob, so be careful not to lose the
compression spring.
1
2
013311
Use a screwdriver to remove the brush holder caps.
Take out the worn carbon brushes, insert the new ones
and secure the brush holder caps.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
OPTIONAL ACCESSORIES
Router bits
Straight bit
005116
mm
DA L 1 L 2
6
1/4"
8 8 60 25
6
1/4"
6
1/4"
65018
85018
20 50 15
1/2"
12
1/2"
12
12 60 30
10 60 25
006452
"U"Grooving bit
R
005117
mm
DAL 1L 2R
6 6 50 18 3
006453
1. Brush holder
cap
2. Screwdriver
1. Knob
