5
11. Be careful of the bit rotating direction and the
feed direction.
12. Do not leave the tool running. Operate the tool
only when hand-held.
13. Always switch off and wait for the bit to come
to a complete stop before removing the tool
from workpiece.
14. Do not touch the bit immediately after
operation; it may be extremely hot and could
burn your skin.
15. Do not smear the tool base carelessly with
thinner, gasoline, oil or the like. They may
cause cracks in the tool base.
16. Use bits of the correct shank diameter
suitable for the speed of the tool.
17. Some material contains chemicals which may
be toxic. Take caution to prevent dust
inhalation and skin contact. Follow material
supplier safety data.
18. Always use the correct dust mask/respirator
for the material and application you are
working with.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function
on the tool.

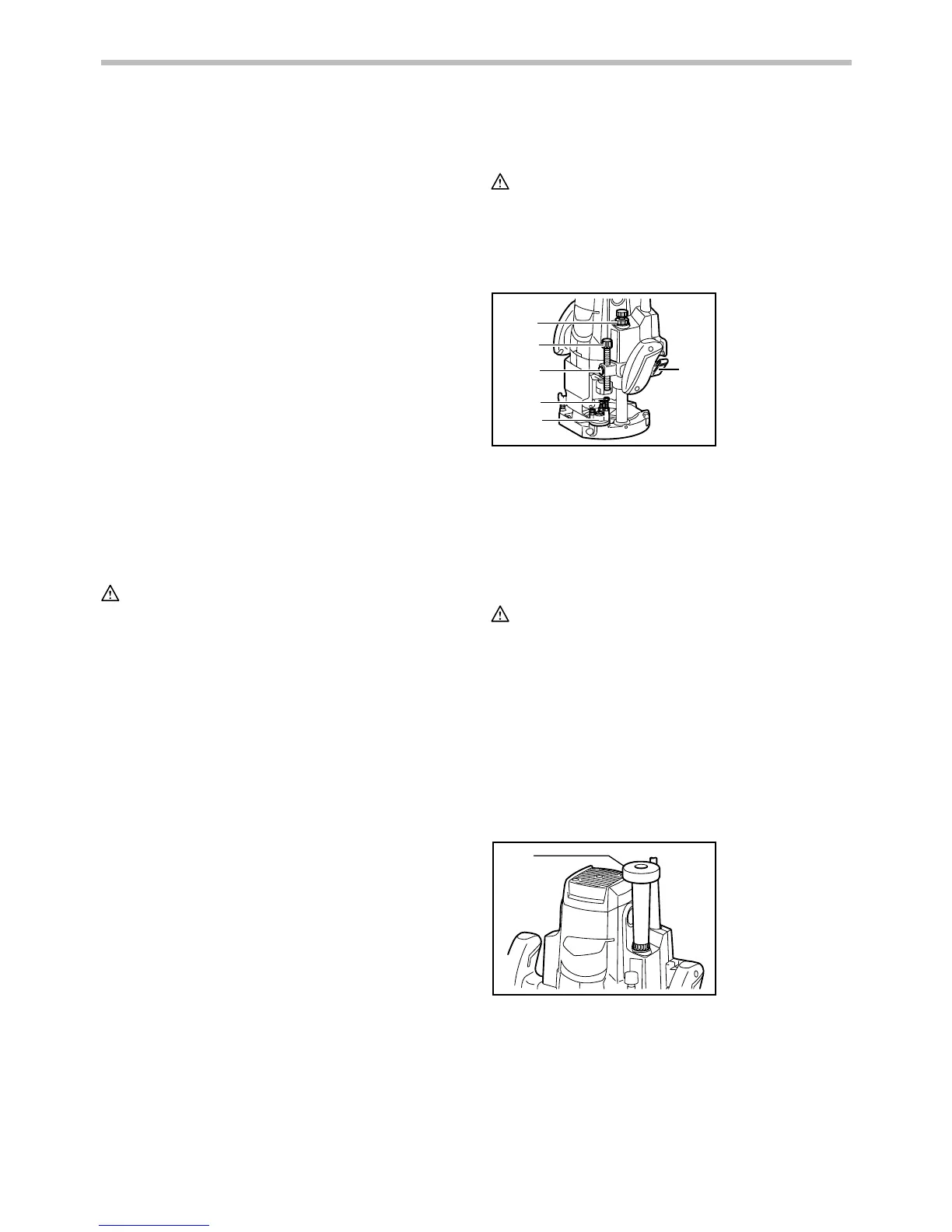

Adjusting the depth of cut
1
2
3
4
5
6
013291
Place the tool on a flat surface. Loosen the lock lever
and lower the tool body until the bit just touches the flat
surface. Press the lock lever down to lock the tool body.
While pressing the fast-feed button, move the stopper
pole up or down until the desired depth of cut is
obtained. Minute depth adjustments can be obtained by
turning the stopper pole (1.5 mm per turn).
CAUTION:
• The depth of cut should not be more than 20 mm
at a pass when cutting grooves. For extra-deep
grooving operations, make two or three passes
with progressively deeper bit settings.
Nylon nut
For tool without the knob
The upper limit of the tool body can be adjusted by
turning the nylon nut. Do not lower the nylon nut too low.
The bit will protrude dangerously.
For tool with the knob
1
013292
By turning the knob, the upper limit of the tool body can
be adjusted. When the tip of the bit is retracted more
than required in relation to the base plate surface, turn
the knob to lower the upper limit. Do not lower the knob
too low. The bit will protrude dangerously.
1. Knob
1. Nylon nut
2. Stopper pole
3. Fast-feed button
4. Adjusting hex
bolt
5. Stopper
6. Lock lever
