5
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.

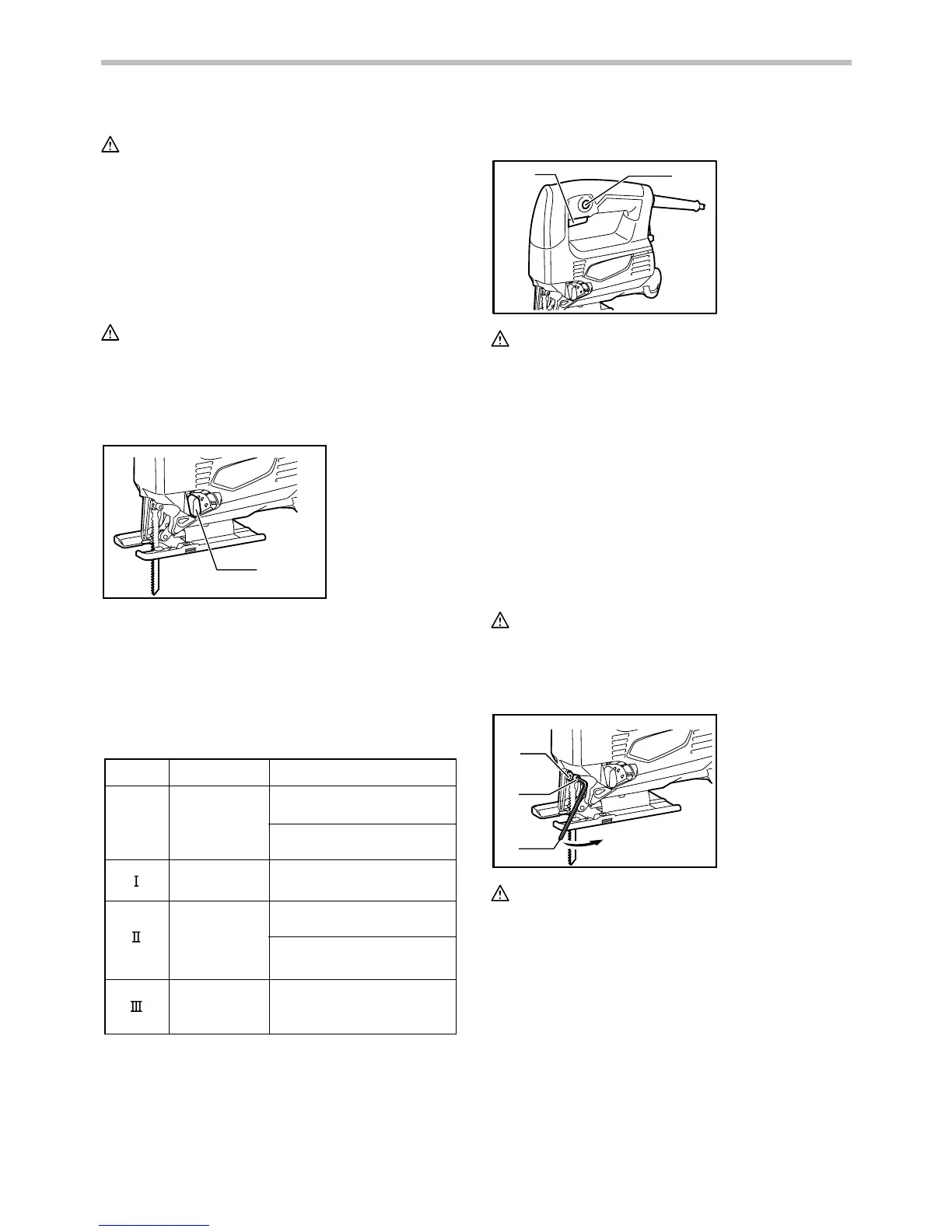

FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.
Selecting the cutting action
1
011278
This tool can be operated with an orbital or a straight line
(up and down) cutting action. The orbital cutting action
thrusts the blade forward on the cutting stroke and
greatly increases cutting speed.
To c ha n g e t he c u tti ng a ct i o n, j us t t ur n t he c ut t i ng a ct i on
changing lever to the desired cutting action position.
Refer to the table to select the appropriate cutting action.
Position
Cutting action
Applications
For cutting mild steel,
stainless steel and plastics.
For clean cuts in wood
and plywood.
Small orbit
cutting action
For cutting mild steel,
aluminum and hard wood.
For cutting wood and
plywood.
For fast cutting in aluminum
and mild steel.
Large orbit
cutting action
For fast cutting in wood
and plywood.
0
Straight line
cutting action
Medium orbit
cutting action
006582
Switch action
1
2
011279
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and returns
to the "OFF" position when released.
To s ta r t t h e t o ol , s i m p ly p u l l t h e sw i tc h t r igg er. To o l s pe ed
is increased by increasing pressure on the switch trigger.
Release the switch trigger to stop.
For continuous operation, pull the switch trigger and
push in the lock button and then release the switch
trigger.
To s t op th e t o o l f r o m t h e lo cked position, pull the switch
trigger fully, then release it.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Installing or removing saw blade
1
2
3
011280
CAUTION:
• Always clean out all chips or foreign matter
adhering to the blade and/or blade holder. Failure
to do so may cause insufficient tightening of the
blade, resulting in a serious personal injury.
• Do not touch the blade or the workpiece
immediately after operation; they may be extremely
hot and could burn your skin.
• Always secure the blade firmly. Insufficient
tightening of the blade may cause blade breakage
or serious personal injury.
• Use only B type blades. Using blades other than B
type blades causes insufficient tightening of the
1. Blade holder
2. Bolt
3. Hex wrench
1. Switch trigger
2. Lock button
1. Cutting action
changing lever
