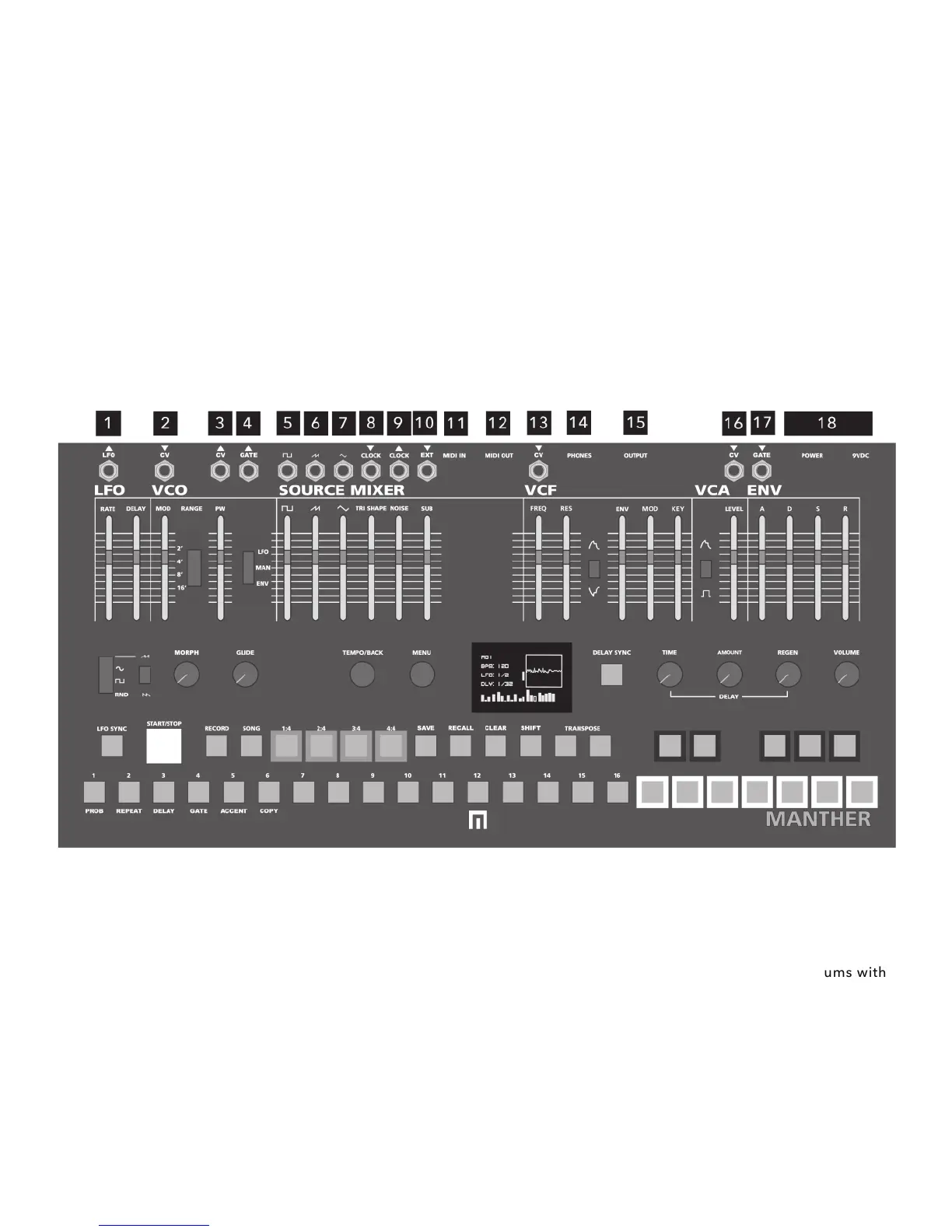

INPUTS & OUTPUTS
10 EXTERNAL AUDIO INPUT: Connect to an external audio source for mixing with waveforms en route to VCF.
Note: External Input is unity level.
11 MIDI INPUT: Receives MIDI clock. CC messages are planned for a software future release.
12 MIDI OUTPUT: Sends MIDI clock out.
13 VCF (Voltage Controlled Filter) CV INPUT: Controls filter frequency cutoff from an external CV source. Sums with
ENVELOPE, MODULATION and KEY at unity gain.
14 HEADPHONE OUTPUT: Final audio output.
15 MAIN OUTPUT: Final audio output.
16 VCA (Voltage Controlled Amplifier) CV INPUT: Controls the amplitude of the VCA with external CV.
17 ENVELOPE GATE INPUT: Receives gate inputs.
18 POWER IN and POWER ON/OFF BUTTON
MANTHER was designed with 3.5mm jacks on the top of the enclosure for use with Eurorack modules and can also be linked
with other external gear over MIDI using the two rear MIDI jacks.
1 LFO (Low Frequency Oscillator) OUTPUT: Sends the LFO out
2 VCO (Voltage Controlled Oscillator) CV INPUT: Recieves 1v/Oct input from a Eurorack source or keyboard that
supports this connection.
3 SEQUENCER CV OUTPUT: Sends all notes out.
4 SEQUENCER GATE OUTPUT: Gate output for notes played via the sequencer.
5 INDIVIDUAL SQUARE WAVE OUTPUT: Sends this individual waveform/signal out for external mixing.
6 INDIVIDUAL SAW WAVE OUTPUT: Sends this individual waveform/signal out for external mixing.
7 INDIVIDUAL TRIANGLE WAVE OUTPUT: Sends this individual waveform/signal out for external mixing.
8 ANALOG CLOCK INPUT: Receives external analog clock source; A Eurorack clock source, for instance.
9 ANALOG CLOCK OUTPUT: Sends analog clock.
