USING VARIGATE 8+ WITH VOLTAGE BLOCK,
VARIGATE 4+, QUAD GATE DELAY, QUAD LFO AND
ANOTHER VARIGATE 8+
MALEKKOHEAVYINDUSTRY.COM
You can slave the following devices to the Varigate 8+: Voltage Block, Varigate 4+, Quad LFO and Quad
Envelope to create an expanded control system. The Varigate 4+ jumper can be moved to the slave
position (see the Varigate 4+ manual).
Malekko Voltage Block: All 8 channels of the Voltage Block and their settings can be saved to up to 100
presets when on the same power bus as the Varigate 8+.
Malekko Varigate 4+: Expands the available gate channels and all of the settings of the Varigate 4+ can
be saved up to 100 presets.
Malekko Quad LFO: All 4 channels of the Quad LFO and their settings can be saved to up to 100
presets when on the same power bus as the Varigate 8+.
Malekko Quad Envelope: All 4 channels of the Quad Envelope and their settings can be saved to up to
100 presets when on the same power bus as the Varigate 8+.
VARIGATE 8+ MANUAL V.2
PG. 18

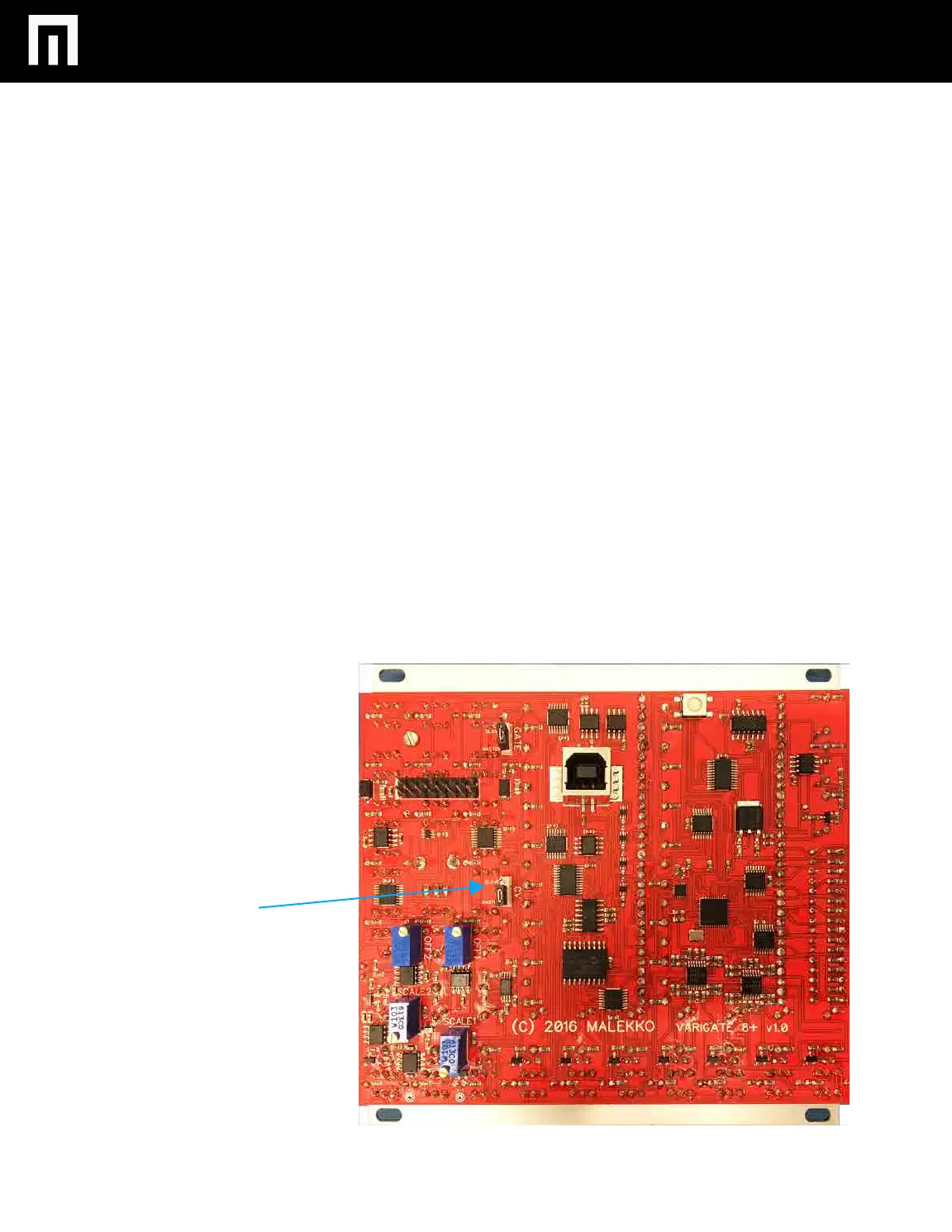

You can also slave one Varigate
8+ to another Varigate 8+. To do
this, you’ll need to set the
jumper for the slaving Varigate
to “slave” rather than “master”
here (in this photo, the jumper is
set to master - so move this):
