Mallory HYFIRE IVC - Ford and American Motors

5
SMALL RED / MAG +
SMALL GREEN
SPADE TERMINAL CONNECTORS
SMALL BLACK
SMALL BLACK / MAG –
ADAPTER PART NO. 29040
NOT USED
YELLOW
ORANGE
ADAPTER PART NO.
29039; 2 OF 2
DISTRIBUTOR PLUG
PUSH CONNECTORS ONTO
PINS AS FAR AS POSSIBLE
IGNITION
CONTROL
HARNESS
RED
IGNITION
CONTROL
PLUG
LONG BLACK
(–) BATTERY (+)
LONG RED
CHASSIS/FRAME GROUND
(DO NOT CONNECT TO
ENGINE BLOCK)
®
HYFIRE
®
IGNITION
SYSTEM
®
ADAPTER PART NO. 29039; 1 OF 2
FEMALE SOCKET
IGNITION COIL
TO MATCHING
MALE SOCKET ON
THE VEHICLE
SPADE
RECEPTACLE
TERMINALS
BLACK
YELLOW
GREEN
(NOT USED)

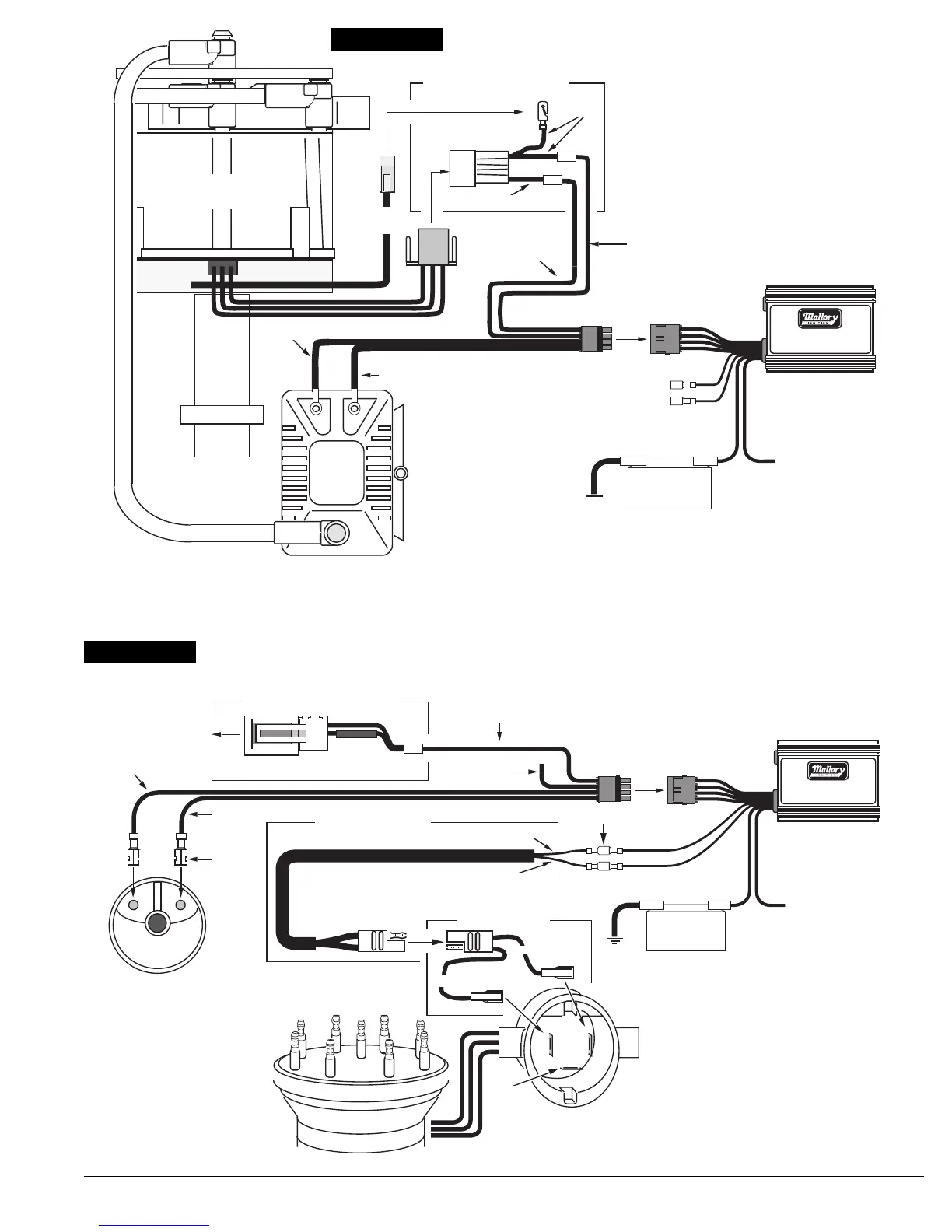

FORD AND AMERICAN MOTORS
MOTORCRAFT DURASPARK (SSI, I AND II),
MALLORY 85 SERIES DISTRIBUTOR ADAPTER
PART NOS. 29039 AND 29040
+–
FIGURE 9
+
-
MALLORY
PROMASTER®
COIL
Part No. XXXXX
MALLORY 8MM SUPPRE
GM/DELCO HEI DISTRIBUTOR
(WITH REMOTE COIL ADAPTER)
ADAPTER / HARNESS
PART NO. 29042
.
IGNITION
CONTROL
PLUG
LONG BLACK
(–) BATTERY (+)
LONG RED
CHASSIS/FRAME GROUND
(DO NOT CONNECT TO
ENGINE BLOCK)
HYFIRE
®
IGNITION
SYSTEM
®
SMALL GREEN AND BLACK
WIRES – NOT USED
NOTE: DO NOT USE IGNITION
BALLAST RESISTORS SUPPLIED
WITH PROMASTER® COILS OR
OTHER AFTERMARKET COILS.
TACHOMETER / RPM SENSING LEAD:
CONNECT THE TACH LEAD TO THE
COIL (–) TERMINAL.
IGNITION CONTROL HARNESS
YELLOW
BLACK
GREEN
RED
GREEN
RED
DISTRIBUTOR
PLUG
BAT
PLUG
PINK
OR
RED
ADAPTER / HARNESS PART NO. 29042
WITH GREEN AND RED WIRES
NOTE: DISCARD ADAPTER / HARNESS PART NO. 29042
WITH YELLOW, BROWN AND BLACK WIRES. MOST
AFTERMARKET REPLACEMENT IGNITION MODULES
WILL NOT TRIGGER THE HYFIRE® IGNITION SYSTEM.
THE BEST TYPE TO USE IS AN ORIGINAL GM/DELCO
IGNITION MODULE.
GM/DELCO HEI DISTRIBUTOR
WITH MALLORY HEI REMOTE COIL
ADAPTER INSTALLED
TO VEHICLE
HARNESS
FIGURE 8
