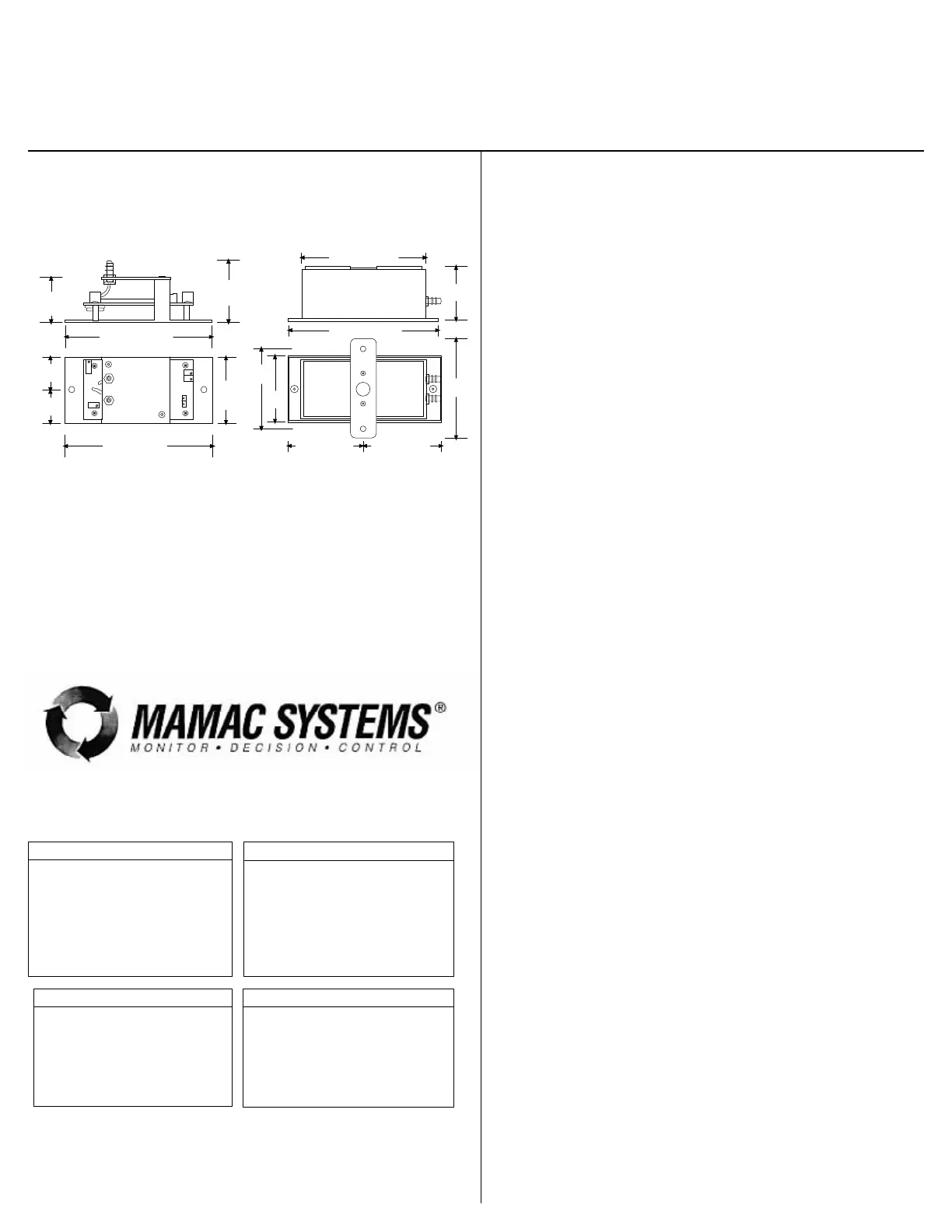

Figure-7 PR-274/275 Low Pressure Transducer Dimensions shown in inches
and millimeters (mm).
For Technical / Application Assistance contact your nearest office.
MAMAC Systems Inc. reserves the right to change any specifications
without notice to improve performance, reliability, or function of our
products.
TI.274/275-01
1.56”
(39.78)
2.125”
(54.19)
4.50” (114.75)
5.50” (140.25)
2.20”
(56.1)
5.00” (127.5)
4.00”
(102)
2.658”
(67.78)
3.250”
(82.88)
2.75” (70.12)2.75” (70.12)5.00” (127.5)
2.25”
(57.38
)
1.125”
(28.69)
1.125”
(28.69)
Panel Mount Enclosure
Model PR-274/275
Technical Information
TI.274/275-01
Low Pressure Transducer
Dimensional Data
Page 5 of 5
