Maintenance and care
33

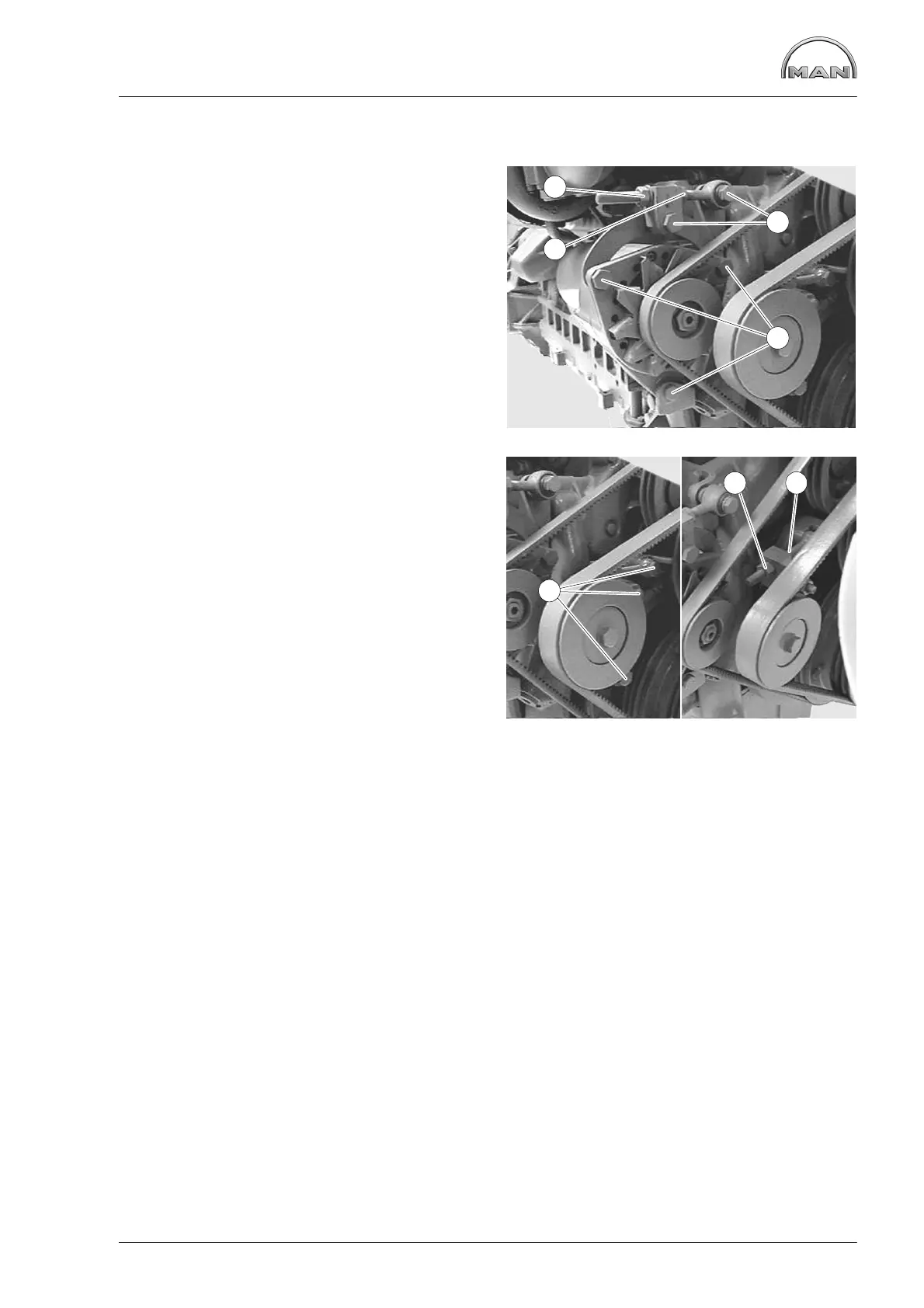

Tensioning and changing V-belt
Water pump − Alternator
D Remove fixing bolts À
D Remove lock-nut Á
D Adjust nut  until V-belts have correct
tensions
D Retighten lock-nut and fixing bolts
To replace the V-belts loosen lock-nut and
swing alternator inwards.
Fan − Tensioning pulley
D Remove fixing bolts À
D Remove lock-nut Á
D Adjust nut  until V-belts have correct
tensions
D Retighten lock-nut and fixing bolts
To change the V-belts turn the adjusting
nut back and swing the tension pulley in-
wards.
