Maintenance and care
28
2 3
1 4 5

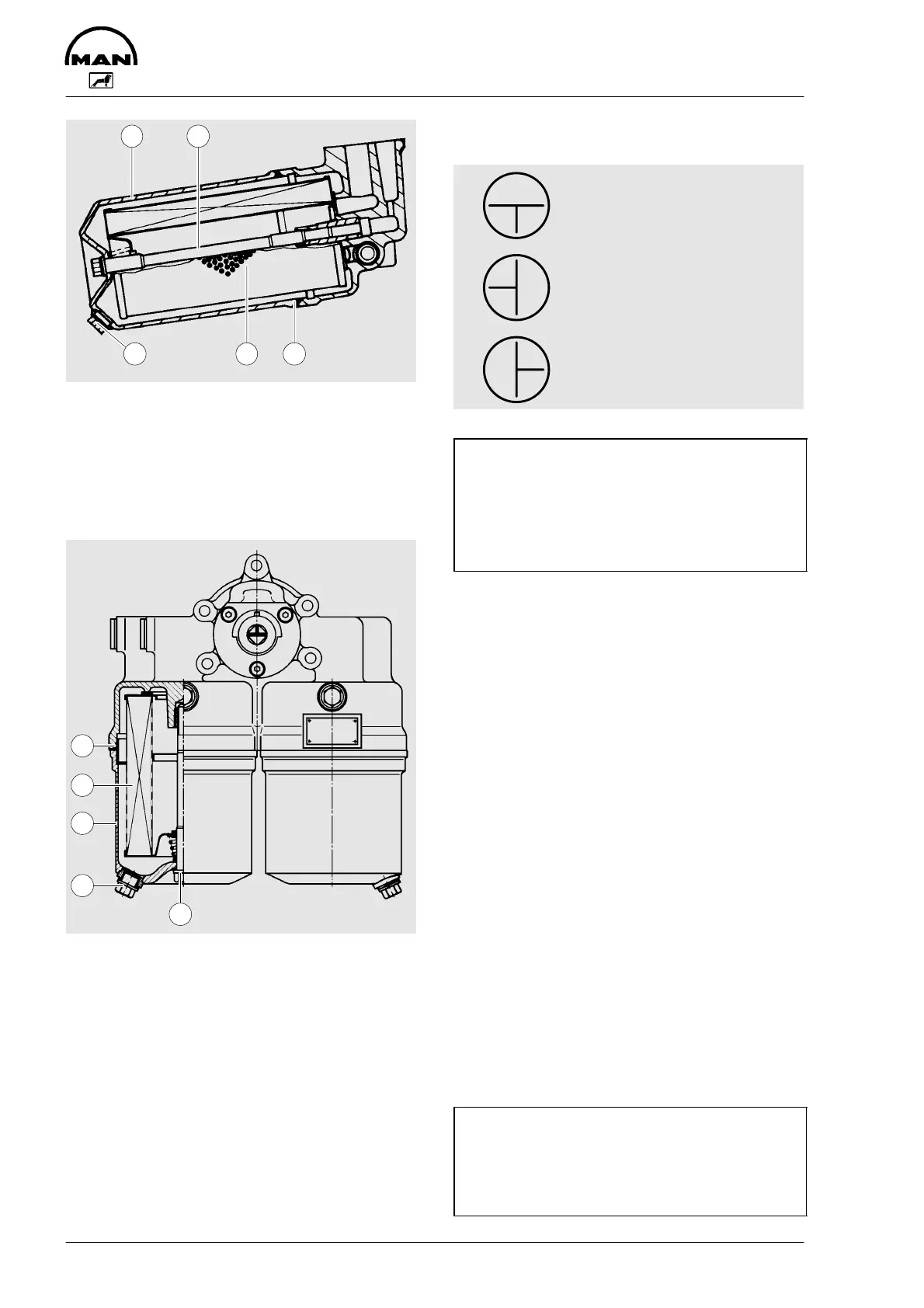

1 Oil drain plug
2 Oil filter bowl
3 Tie screw
4 Filter cartridge
5 Gasket
2
3
1
4
5
1 Oil drain plug
2 Oil filter bowl
3 Tie screw
4 Filter cartridge
5 Gasket
A changeover-type oil filter, the filter el-
ements of which can be replaced even
during operation, can be fitted on request.
During continuous operation position the
selector lever that both filter halves are in
operation.
Observe positions of selector lever!
Continuous operation
(both filter halves
in operation)
Right-hand filter
cut out
Left-hand filter
cut out
Caution:
Do not leave selector lever in any in-
termediate position because this
would be liable to interfere with oil
supply.
Renewal of filter cartridges
D Allow the filter content to run off along
drain plugs. Hold a suitable vessel
under hole
Caution:
Oil is hot and under pressure!
D After releasing the clamping bolts re-
move filter bowls
D Renew filter cartridges. Thoroughly
clean all other parts in cleaning fluid
(do not allow cleaning fluid to enter the
oil circuit)
D Use new gaskets for reassembly of fil-
ter bowls
Note:
To prevent the seal from twisting hold
the filter bowl firmly when tightening the
tensioning screw
Every time an oil change is made, the two
oil filter cartridges should be renewed!
Caution:
Used oil filters are classed as danger-
ous waste and must be disposed of
accordingly.
