Display of all measuring points
List of measuring points
This display shows tables of all the measuring points available in the system. The “ENGINE PORT" and
“ENGINE STBD" keys are used to select the list for the respective engine. This view can be opened from
all other pages by pressing the “MEASURING POINTS" key. The complete list can be viewed by pressing
the “TABLE UP" or “TABLE DOWN" keys. Selection of the “BACK" key opens the last activated view. A le
gend that explains of the abbreviations can be hidden or shown using “SHOW LEGEND" button.
As on all pages, the unacknowledged alarms are shown in the lower part.

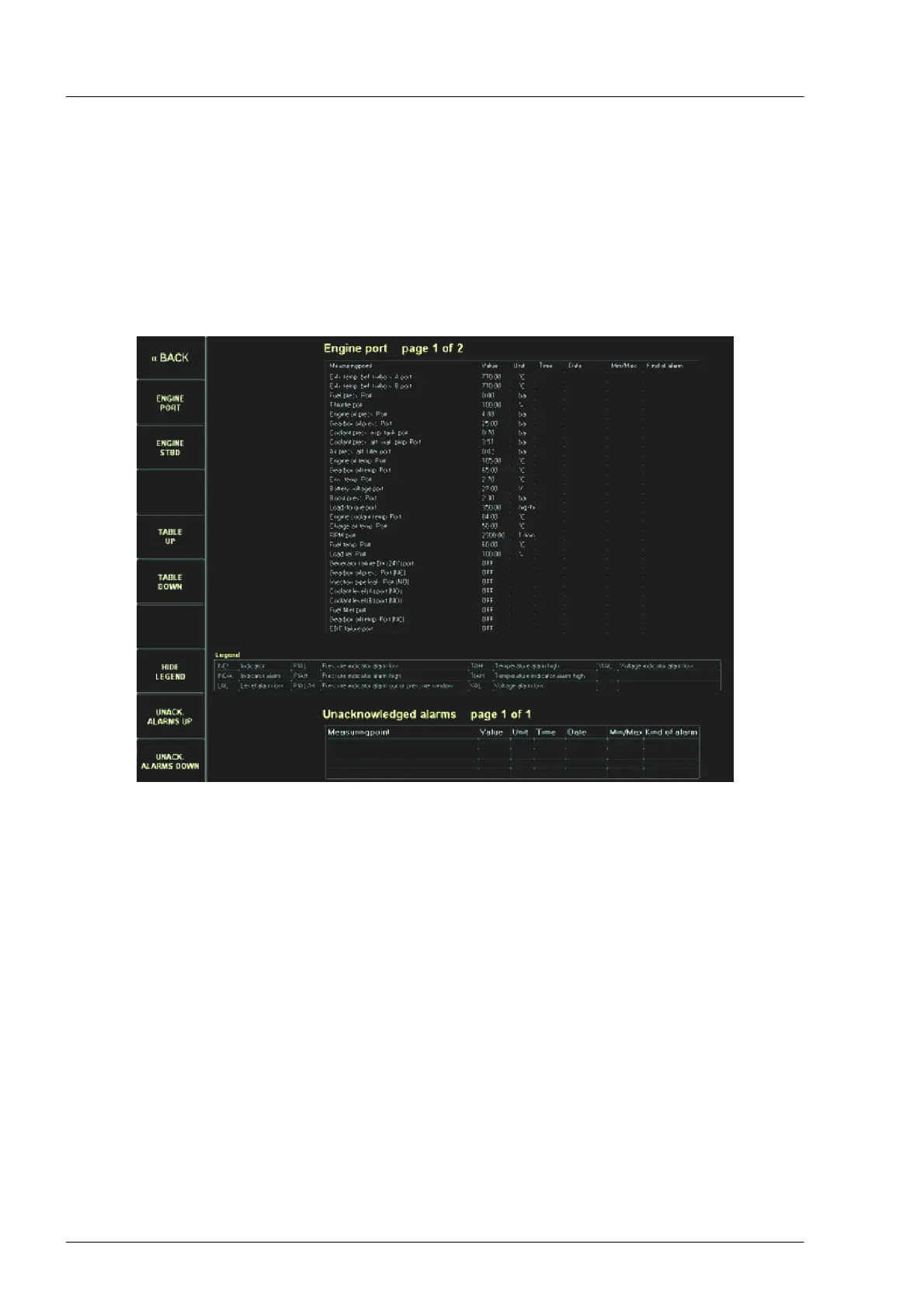

Figure: table with all measuring points and legend shown
