User-defined display
The user can configure the instrument range as desired in the user-defined display. All instruments can be
defined as regards their size and type of representation. Important measuring points can thereby be high
lighted visually. The instruments are available in different forms of display. For example, exhaust gas tem
peratures can be represented as thermometers or instrument dials; the speed can be shown as an instru
ment dial or meter.
Binary engine alarms are not available in this display. Alarms are, however, listed in the table of unacknow
ledged alarms, as on all other pages.
Table of all unacknowledged alarms
Description of function keys
for software operation
Configurable area

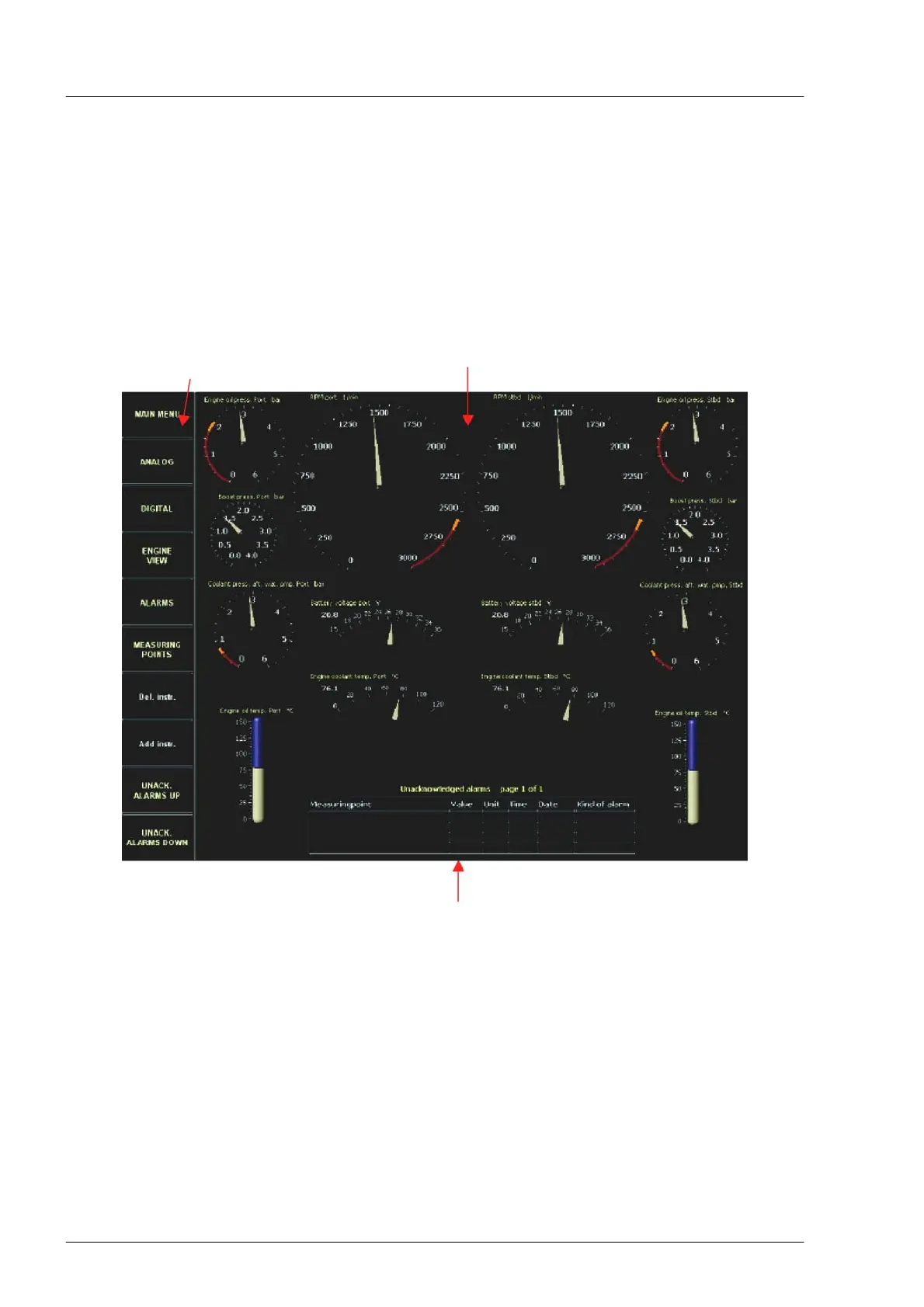

Figure: user-defined display (example)
To Next Page
