Installation
41
Carefully read the Assembly Instructions before starting any work!
This is especially valid for the chapter on General Safety Instructions
and the safety instructions in each of the chapters.

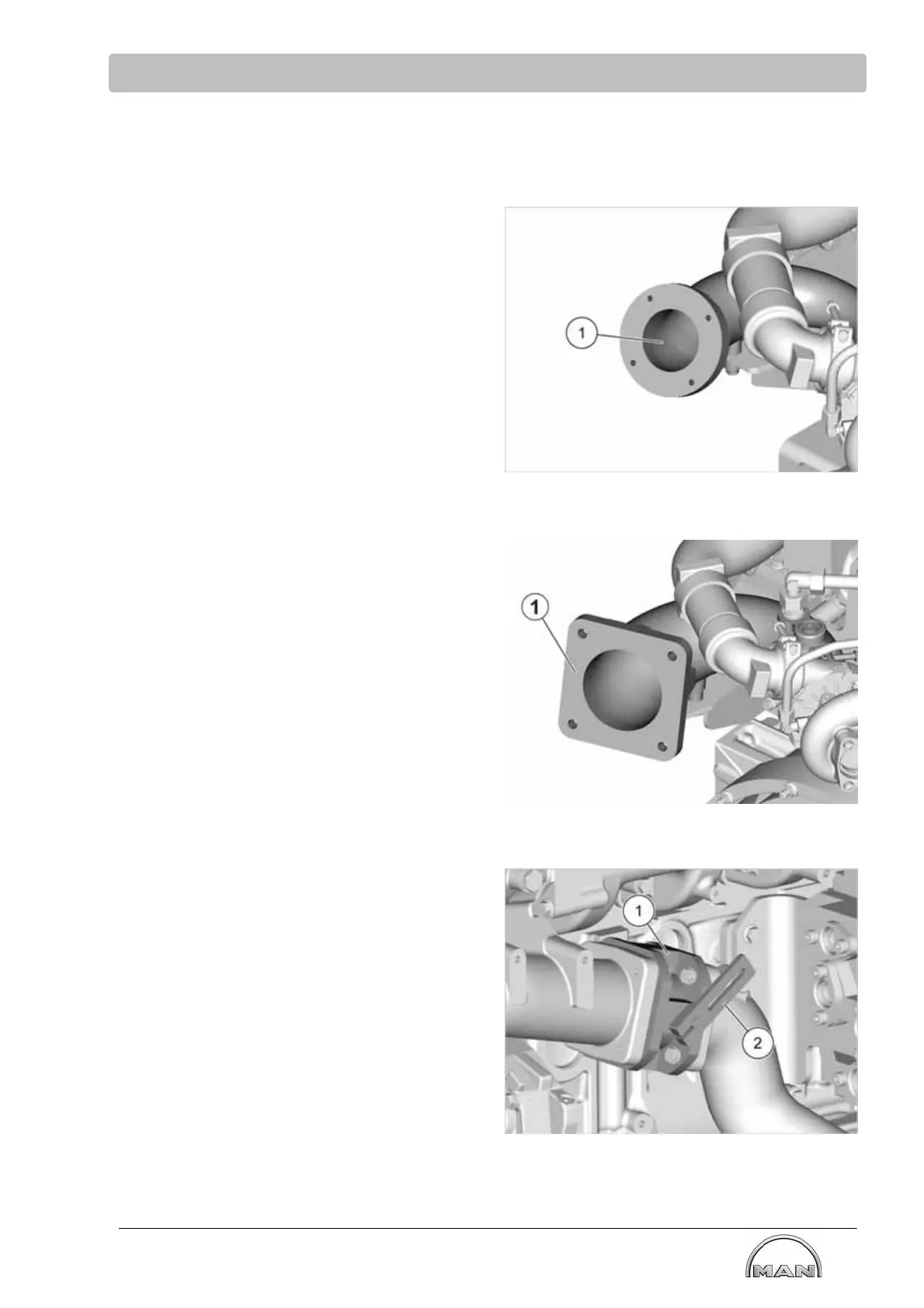

5.7 Installing Intake System
5.7.1 Installing Gas Mixer (E0836LE202)
The location of the gas inlet at the engine (1) and
the drilling pattern of the flange are both specified
in the installation drawing.
5.7.2 Installing Gas Mixer (E0836LE302)
The location of the gas inlet at the engine (1) and
the drilling pattern of the flange are both specified
in the installation drawing.
5.7.3 Installing Actuation Linkage for Throttle Valve
The throttle valve (1) is actuated by an actuator
motor and linkage. The linkage is attached to a
lever (2) mounted on the throttle valve shaft. A
detailed depiction of the throttle valve can be found
in the installation drawing.
Make sure that the throttle valve can be completely
opened and completely closed.
