Installation
42
Carefully read the Assembly Instructions before starting any work!
This is especially valid for the chapter on General Safety Instructions
and the safety instructions in each of the chapters.
5.8 Installing Exhaust System
5.8.1 Installing Exhaust Line (E0836LE202)

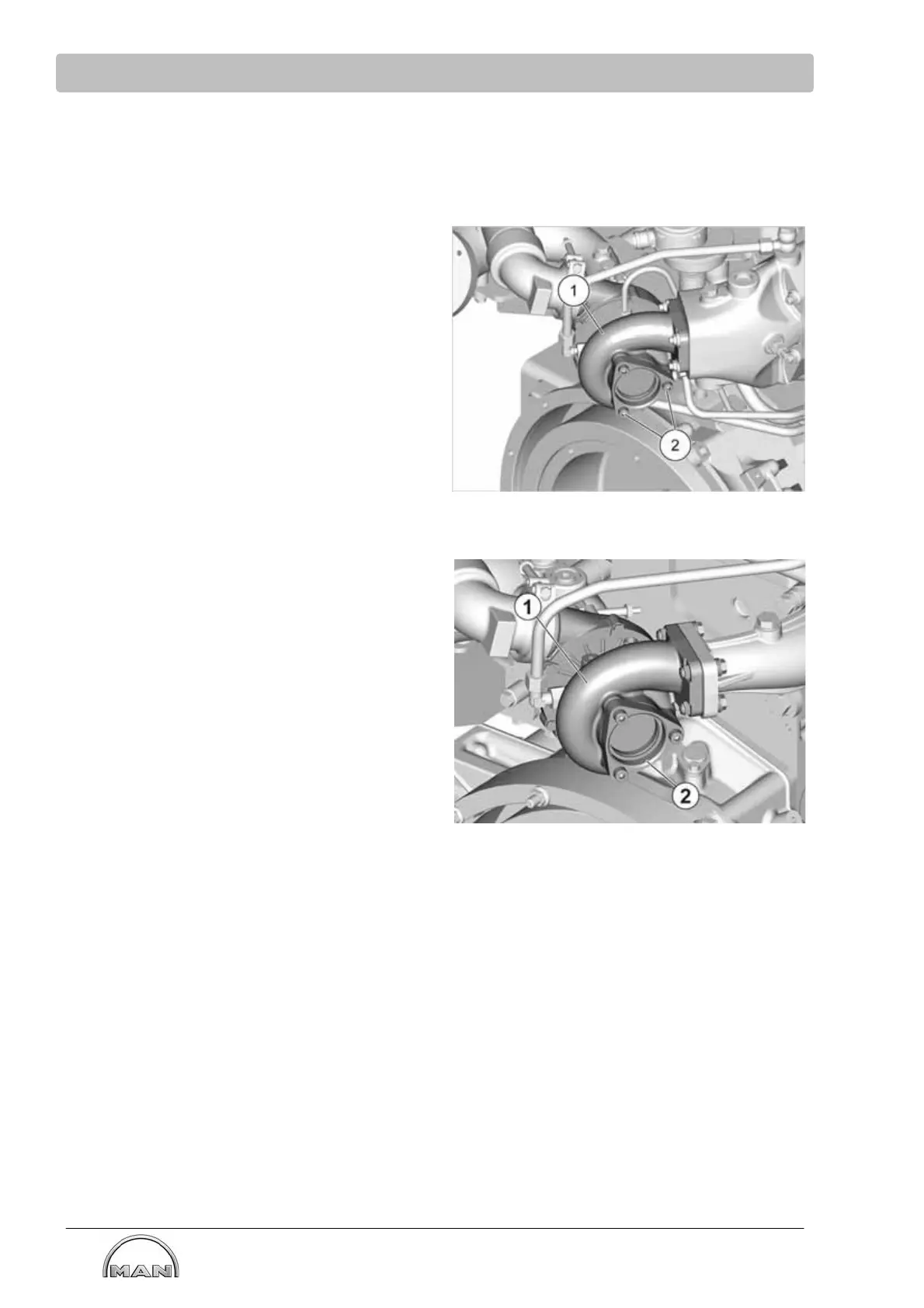

Install exhaust manifold at turbocharger (1).
There is a counter flange (weld flange) at the
exhaust outlet of the turbocharger (2) to connect
the exhaust system. The dimensions are specified
in the installation drawing.
5.8.1 Installing Exhaust Line (E0836LE302)
Install exhaust manifold at turbocharger (1).
There is a counter flange (weld flange) at the
exhaust outlet of the turbocharger (2) to connect
the exhaust system. The dimensions are specified
in the installation drawing.
