Engine and alternator combinations
For a GenSet the engine and alternator are fixed on
a common base frame, which is flexibly installed.
This is to isolate the GenSet vibration-wise from the
environment. As part of the GenSet design a full
FEM calculation has been done and due to this and
our experience some combinations of engine type
and alternator type concerning one - or two bear-
ings must be avoided. In the below list all combina-
tions can be found.
Comments to possible combinations:
• : Standard
# : Option
X : Not recommended
1) : Only in combination with "top bracing" between
engine crankcase and alternator frame
2) : Need for 'topbracing' to be evaluated case by
case
MAN Diesel & Turbo
3700084-3.10
Page 1 (2)

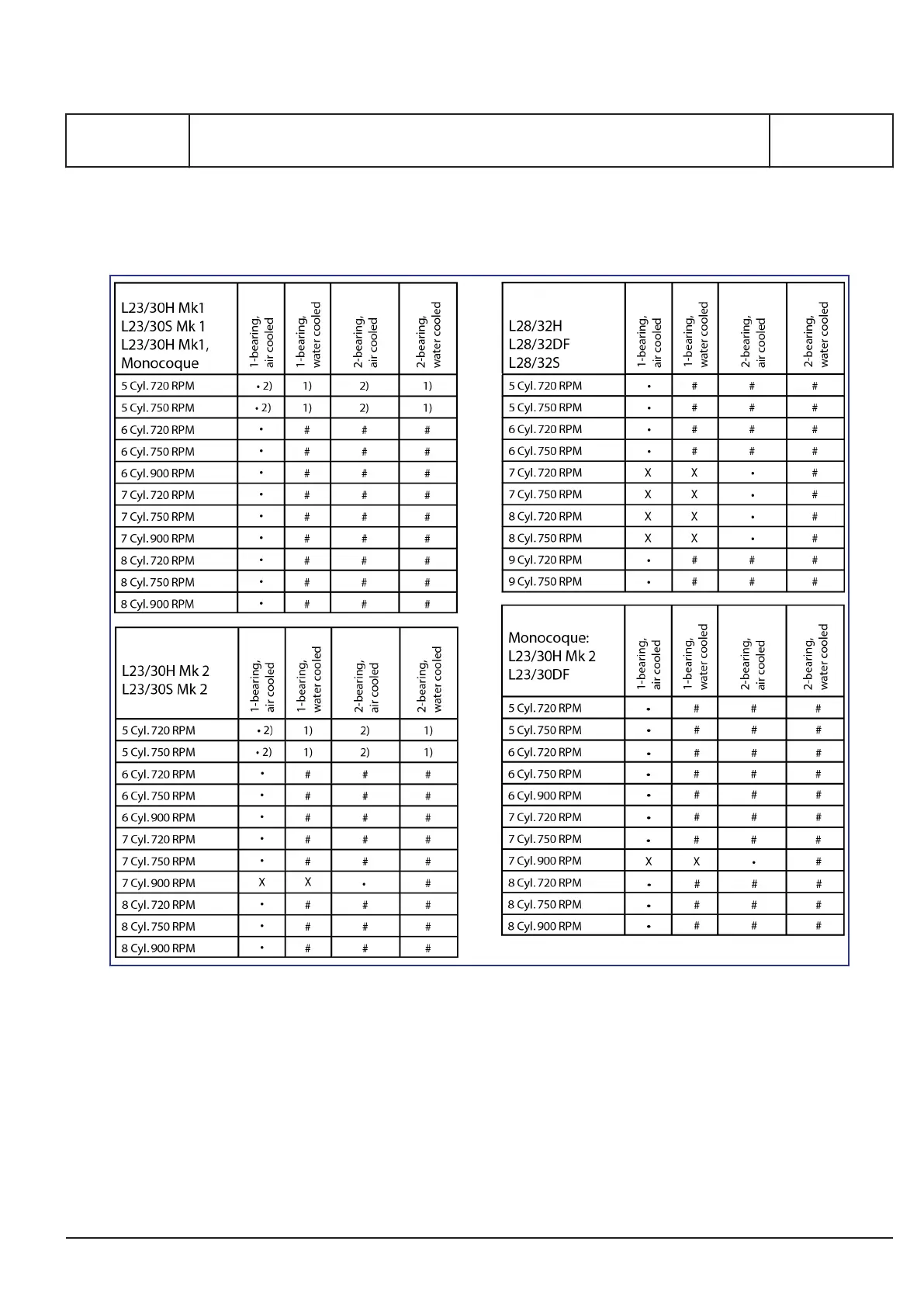

Combinations of engine- and alternator layout
BG 50 00 0
L28/32S, L27/38S, L23/30S, L21/31S, L16/24S, L23/30DF, L28/32DF, V28/32S,
L16/24, L21/31, L23/30H, L27/38, L28/32H
2017.04.26
