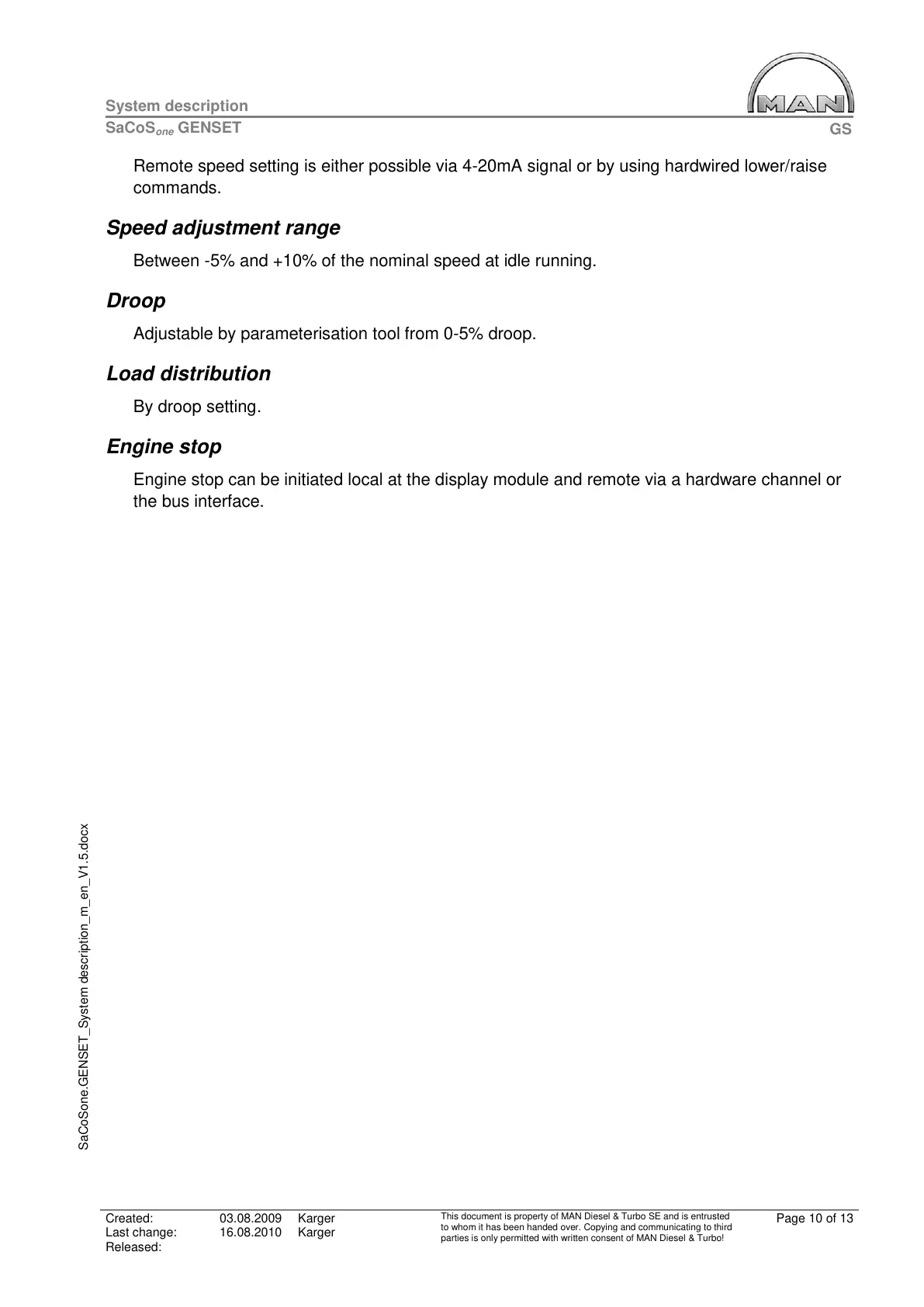

Remote speed setting is either possible via 4-20mA signal or by using hardwired lower/raise
commands.
Speed adjustment range
Between -5% and +10% of the nominal speed at idle running.
Droop
Adjustable by parameterisation tool from 0-5% droop.
Load distribution
By droop setting.
Engine stop
Engine stop can be initiated local at the display module and remote via a hardware channel or
the bus interface.
