Man L28/32S

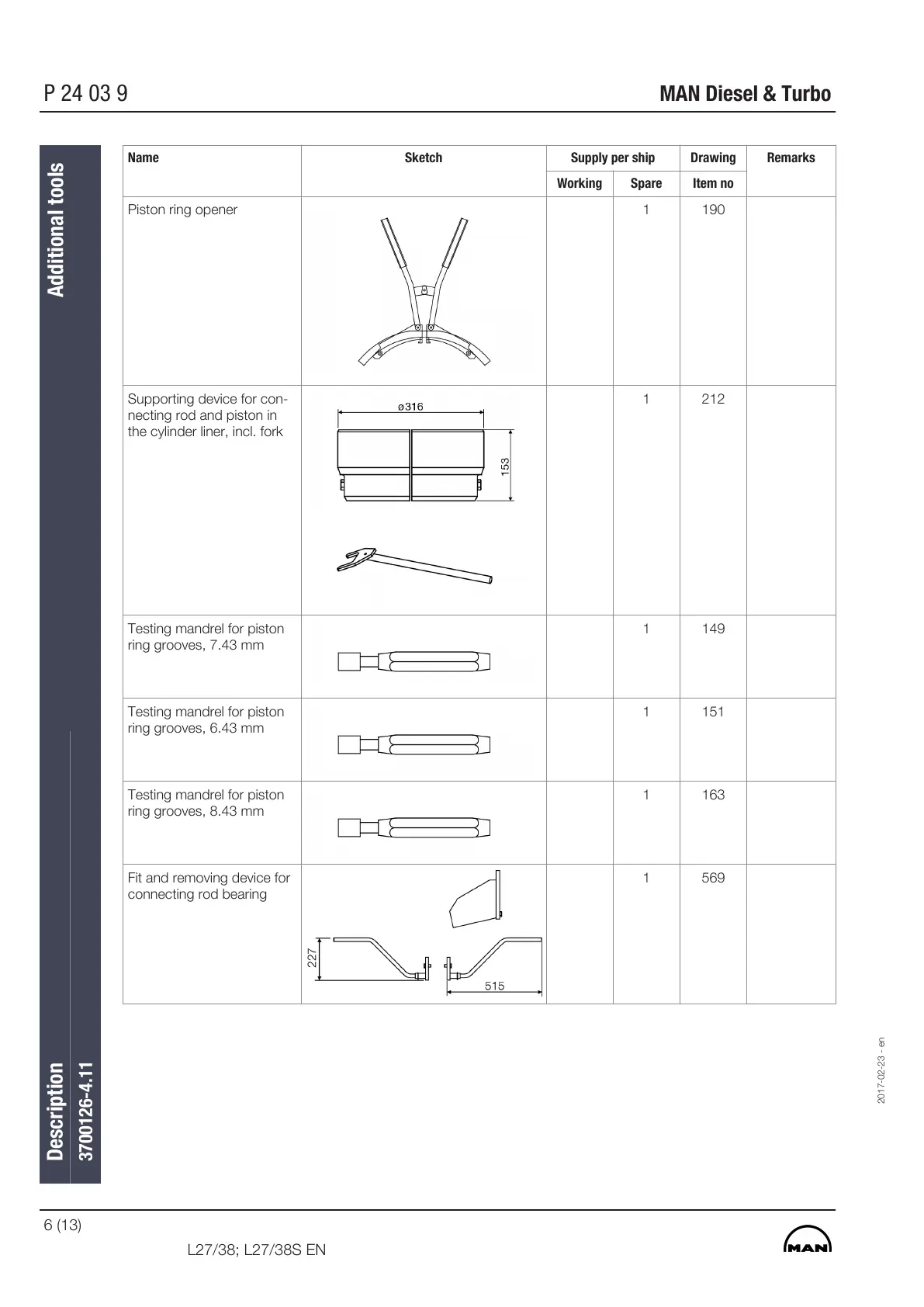

Name Sketch Supply per ship Drawing Remarks
Working Spare Item no
Piston ring opener 1 190
Supporting device for con-
necting rod and piston in
the cylinder liner, incl. fork
1 212
Testing mandrel for piston
ring grooves, 7.43 mm
1 149
Testing mandrel for piston
ring grooves, 6.43 mm
1 151
Testing mandrel for piston
ring grooves, 8.43 mm
1 163
Fit and removing device for
connecting rod bearing
1 569
Description
Additional tools
3700126-4.11
2017-02-23 - en
P 24 03 9
MAN Diesel & Turbo
6 (13)
L27/38; L27/38S EN
