Cleaning system
The cleaning system consists of a cleaning agent
container (2) with a capacity of approx. 0.5 liters
and a removable cover. Furthermore the system
consists of an air valve (3), a closing valve (1) and
two snap on connectors.
The position numbers (2) and (3) indicate the sys-
tem's "blow-gun". Only one "blow-gun" is used for
each engine plant. The blow-gun is working accord-
ing to the ejector principle with pressure air (working
air) at 5-7 bar as driven medium. Injection time
approx. 2 min. Air consumption approx. 5 Nm
3
/2
min.

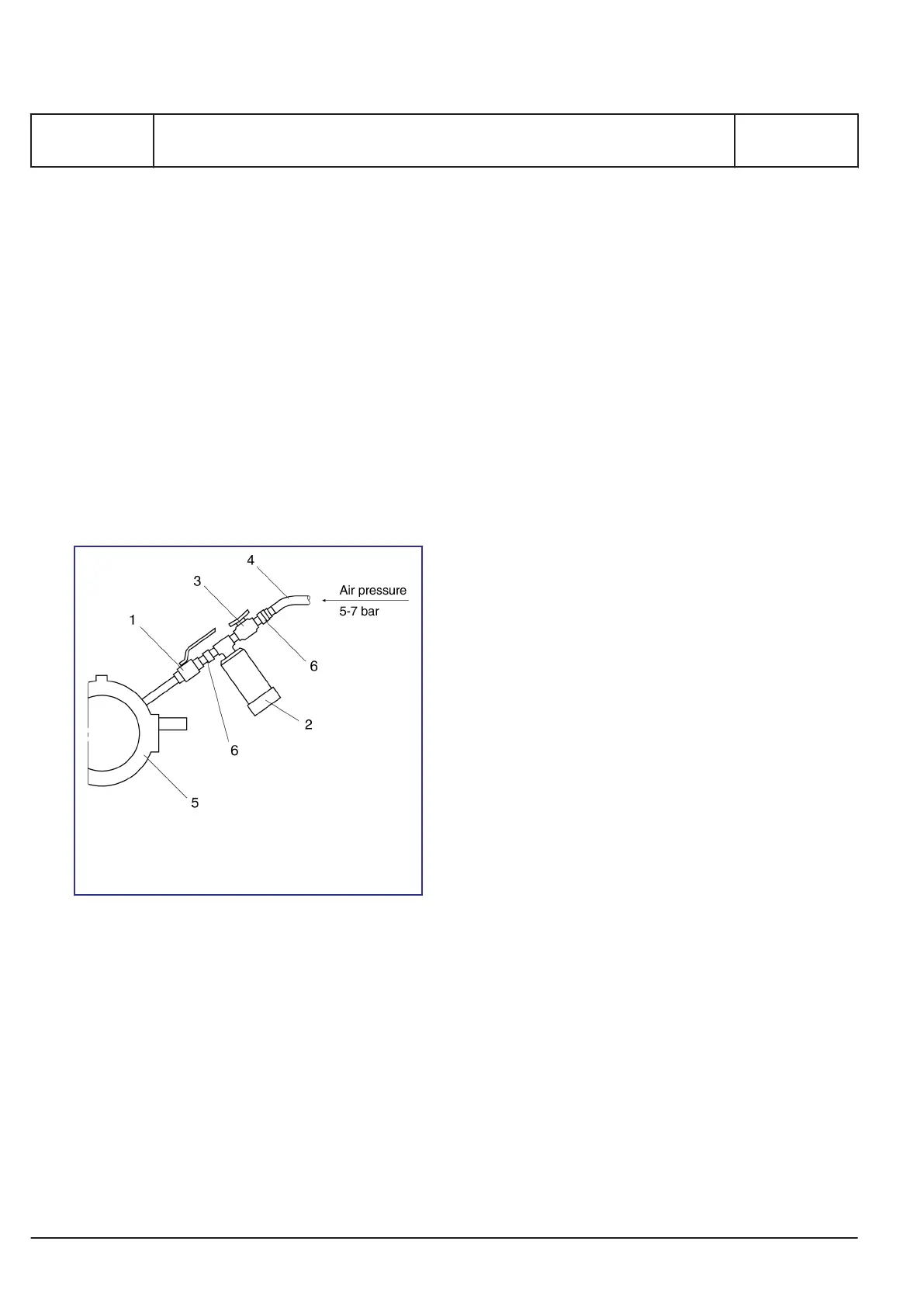

1 Closing valve 2 Container
3 Air valve 4 Working air inlet
5 Exhaust pipe 6 Snap coupling
Figure 1: Arrangement of dry cleaning of turbocharger - turbine
MAN Diesel & Turbo
B 16 01 3
Cleaning the turbocharger in service - turbine side
3700418-8.1
Page 2 (6)
L28/32DF, V28/32S, L28/32S, L28/32H, L27/38S, L27/38, L23/30DF, L23/30S,
L23/30H, L21/31S, L21/31, L16/24S, L16/24
2017.01.24
