Pothole protection
Remark: the pothole protections must deploy automatically when the lifting platform
is raised. These activate another limit switch that enables the machine to continue to
function. If the pothole protections do not deploy, an alarm sounds and the machine
does not operate any more.
• Raise the lifting platform.
> Result: when the lifting platform is approx. 1.2 m from the ground, the pothole
protections must deploy.
• Press on the protections from one side and then the other.
> Result: the protections must not move.
• Lower the lifting platform.
> Result: the protections must fold back.
• Place a 5 x 10 cm wooden wedge or a similar object under a pothole protection. Raise
the lifting platform.
> Result: an alarm should sound and the translation function should be
deactivated before the lifting platform is 2.1m from the ground.

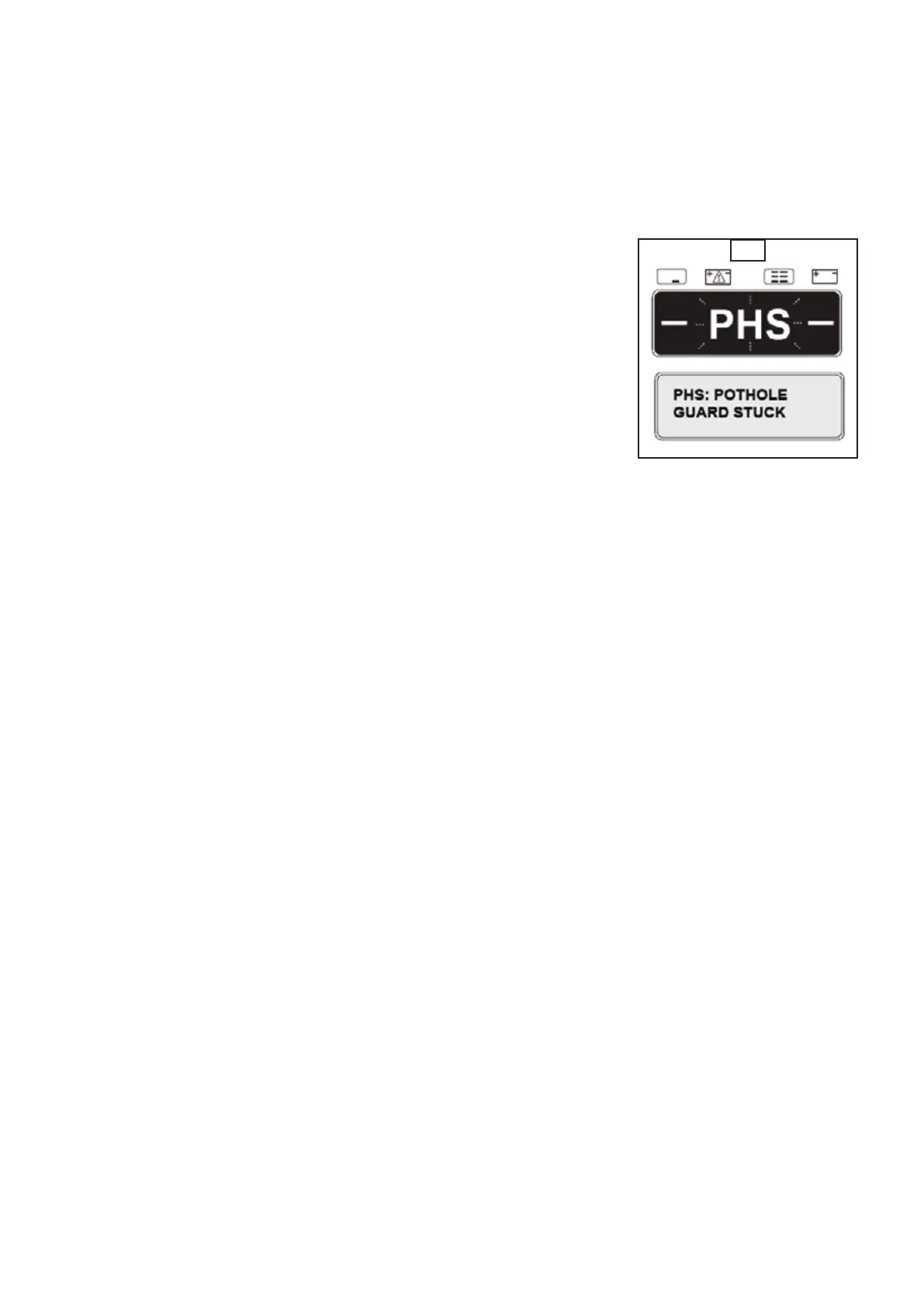

The control screen in the basket should show “PHS” and the control screen at
ground level should show “PHS: Pothole Guard Stuck” (the protective device
against potholes is jammed) (Fig. A2-3).
• Lower the lifting platform and remove the wooden wedge.
A2-3
647369 (01/03/2017) 78/100 SEC 2 / 120 SE 2
