A4 - CYCLONIC PREFILTER
CLEAN
STANDARD MLT 629 Turbo Série A
MLT730 -120 LS Turbo Série A
MLT 633 LS Turbo Série A
The cleaning interval is given as a guide, however the prefilter must be
emptied as soon as impurities reach the MAXI level on the tank.

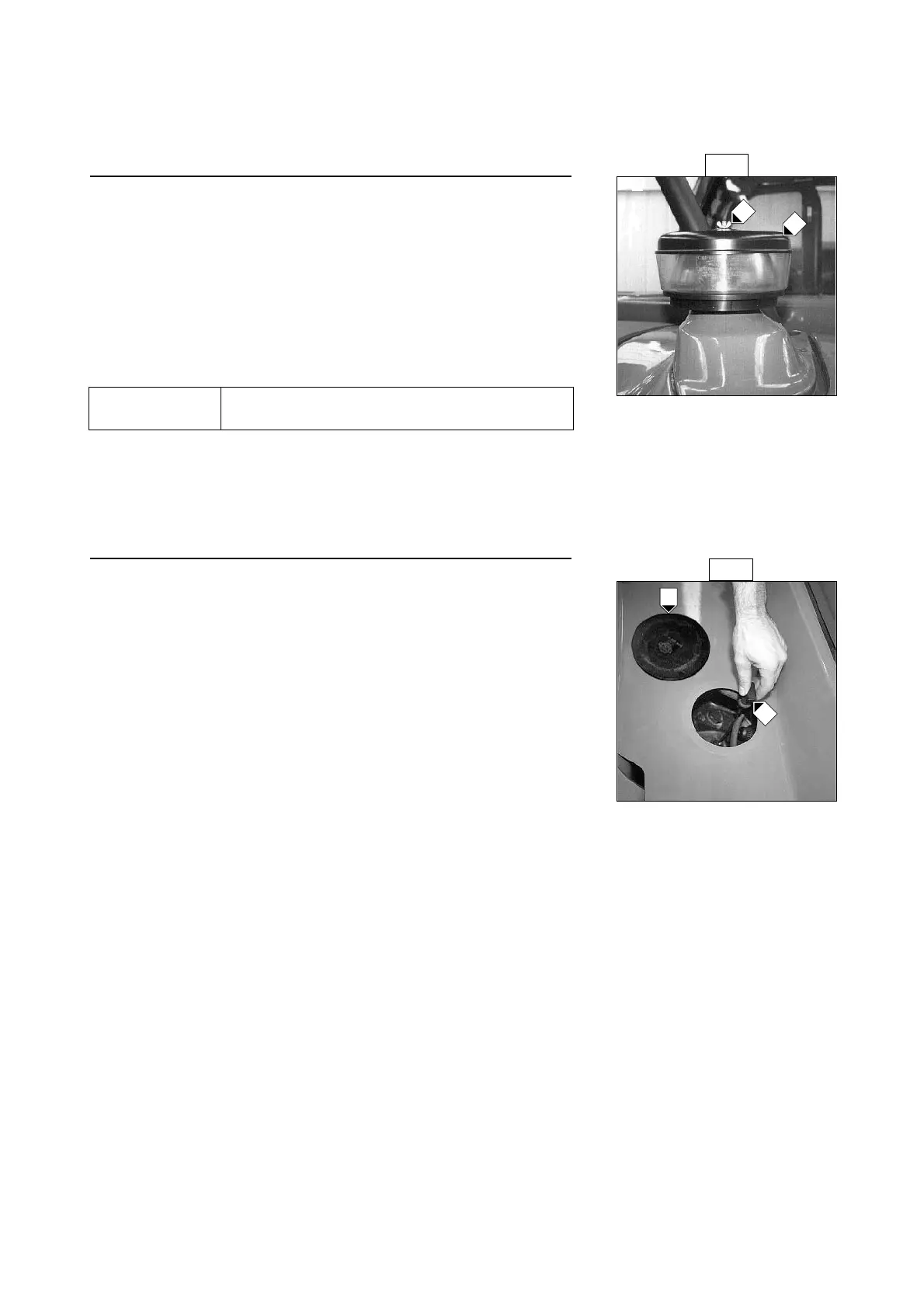

- Loosen nut 1 (Fig. A4), remove cover 2 (Fig. A4) and empty the tank.
- Clean the prefilter unit with a clean dry cloth and reassemble the unit.
A5 - TRANSMISSION OIL LEVEL
CHECK
Park the lift truck on level ground with the boom raised, the I.C. engine cold
and stopped. Carry out the control within 5 minutes of the i.c. engine being
stopped.
- Remove the plastic cap 1 (Fig. A5).
- Remove the dipstick 2 (Fig. A5).
- Wipe the dipstick and check the correct level between the two MIN and MAX
marks.
- If necessary, add oil (See E3 - TRANSMISSION OIL in SECTION 3 -
MAINTENANCE).
A5
1
A4
1
2
When cleaning, take care not to let impurities into the
dry air filter.
IMPORTANT
