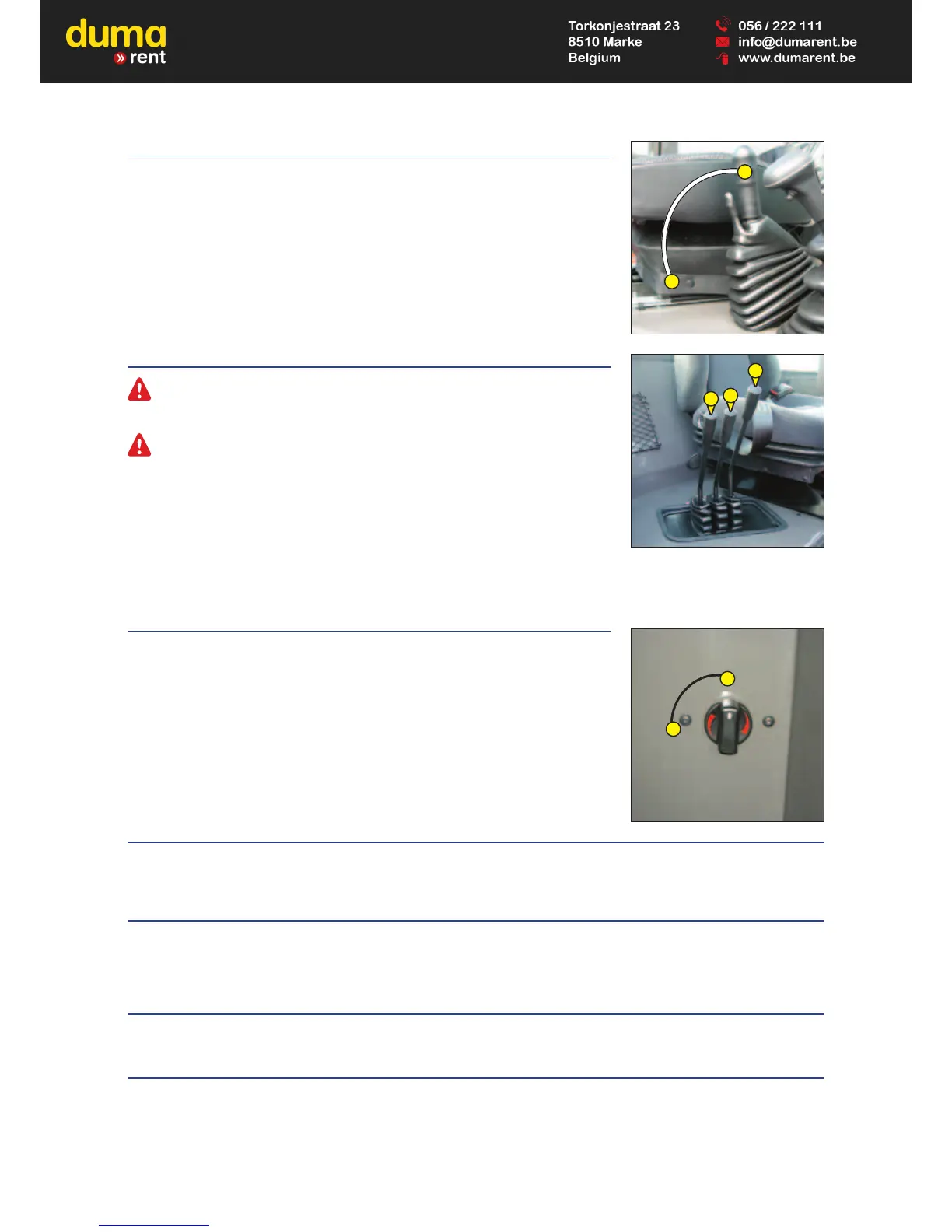

2-77
17 - PARKING BRAKE
To prevent accidental loosening or release, the lever is fitted with safety locking.
- To apply the parking brake, pull the lever backwards (position A).
- To loosen the parking brake, release and push the lever forwards (position B).
18 - HYDRAULIC CONTROLS
Do not attempt to alter the hydraulic system pressure by interfering with the pressure regulating valve. In the
event of suspected malfunction, contact your dealer. ANY ALTERATION MAY RENDER THE WARRANTY NULL
AND VOID.
Use the hydraulic controls carefully without jerking, to avoid accidents caused by shaking the lift truck.
LIFTING THE LOAD
- The lever A backwards when lifting.
- The lever A forwards when lowering.
TILTING THE MAST
- The lever B backward for backward tilting.
- The lever B forwards for forward tilting.
ATTACHMENT
- The lever C forwards or backwards.
19 - HEATER CONTROL
Optional for MC 30 Série 3-E3
Allows the temperature inside the cab to be adjusted.
A - With the valve closed, the fan delivers fresh air.
B - With the valve opened completely, the fan delivers warm air.
The intermediate positions allow the temperature to be adjusted.
20 - HEATING VENTS
Optional for MC 30 Série 3-E3
21 - DOOR LOCKS
Optional for MC 30 Série 3-E3
Two keys are provided with the lift truck to enable the cabin to be locked.
22 - DOOR RELEASE BUTTONS
Optional for MC 30 Série 3-E3
23 - DOCUMENT HOLDER NET
Make sure that the operator’s manual is in the right place, i.e. in the document holder net.
NOTE: An OPTION waterproof document-holder exists.
A
B
C
A
B
A
B
647003 EN (03/01/2012)
