1 - DRIVER’S SEAT
MC 30 Turbo Série 3-E3 M 26-2 Turbo Série 3-E3 M 26-4 Turbo Série 3-E3
M 30-2 Turbo Série 3-E3 M 30-4 Turbo Série 3-E3
M 40-4 Turbo Série 3-E3 M 50-4 Turbo Série 3-E3

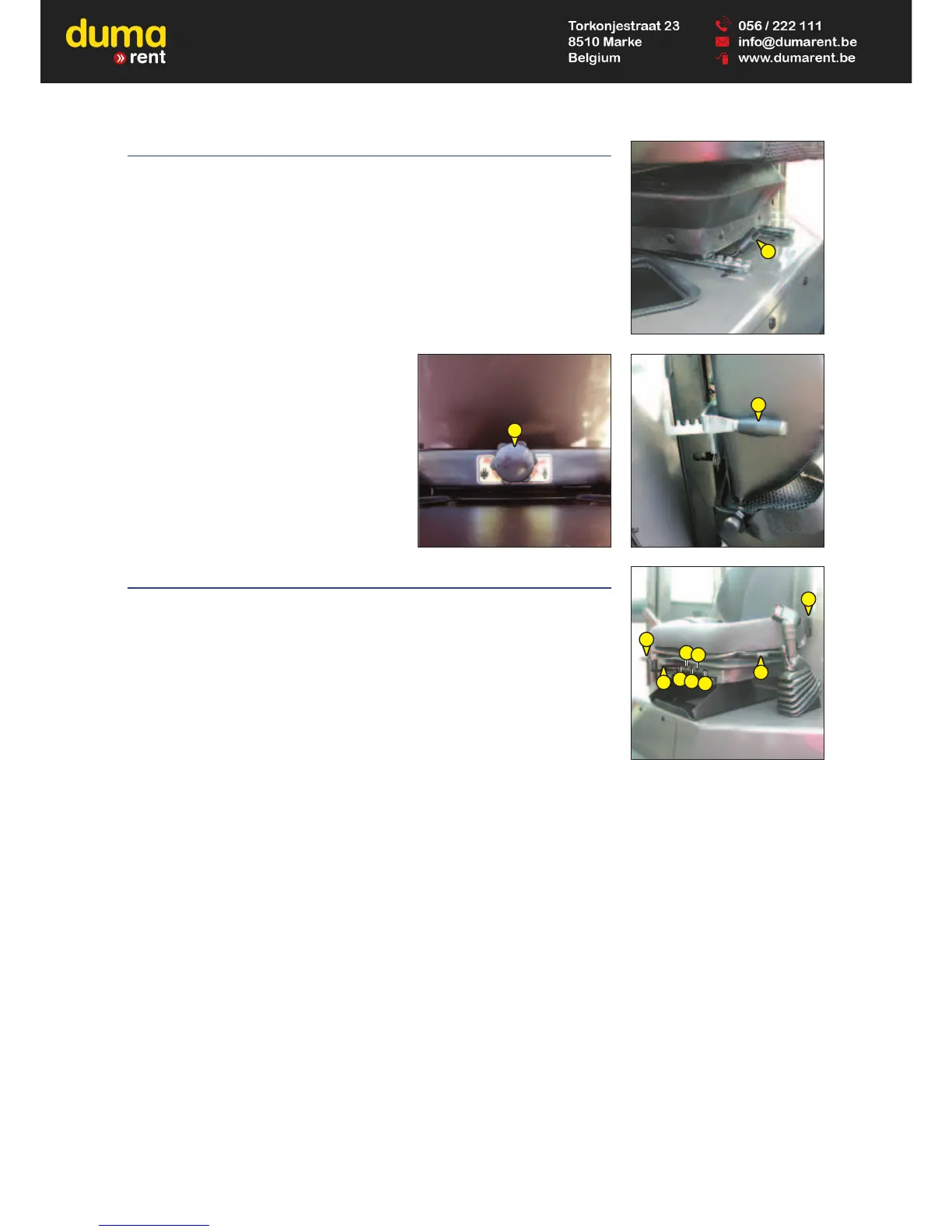

DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS FOLLOWS.
LONGITUDINAL ADJUSTMENT
- Pull locking lever 1 towards the right.
- Slide the seat to the desired position.
- Release the lever and be sure it returns to the lock position.
SEAT SUSPENSION ADJUSTMENT
- Refer to the seat’s graduation.
- Turn handle 2 depending on the driver’s weight.
ANGLE ADJUSTMENT OF THE BACK-REST
- Pull locking lever 3 upwards.
- Slide the back-rest to the required position.
- Release the locking lever and ensure it returns to the
lock position.
1 - DRIVER’S SEAT
MC 40 Turbo POWERSHIFT Série 3-E3
MC 50 Turbo POWERSHIFT Série 3-E3
MC 60 Turbo POWERSHIFT Série 3-E3
MC 70 Turbo POWERSHIFT Série 3-E3
DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS FOLLOWS.
LONGITUDINAL ADJUSTMENT
- Pull the locking lever 1 upwards.
- Slide the seat to the desired position.
- Release the lever and be sure it returns to the lock position.
SEAT SUSPENSION ADJUSTMENT
- Pull and lift up the locking lever 2 so as to place it into one of these five positions.
Position A: Light-weight driver (50 kg).
Position B: Intermediate.
Position C: Middle-weight driver.
Position D: Intermediate.
Position E: Heavy-weight driver (120 kg).
ANGLE ADJUSTMENT OF THE BACK-REST
- Pull the locking lever 3 backwards.
- Tilt the back-rest into one of the three possible positions.
- Release the lever and be sure it returns to the lock position.
ANGLE ADJUSTMENT OF THE WHOLE SEAT
- Lift up the locking lever 4.
- Tilt the seat forwards or backwards.
- Release the locking lever and ensure it returns to the lock position.
1
3
3
4
1
2
A
C
E
B
D
2
