2-74

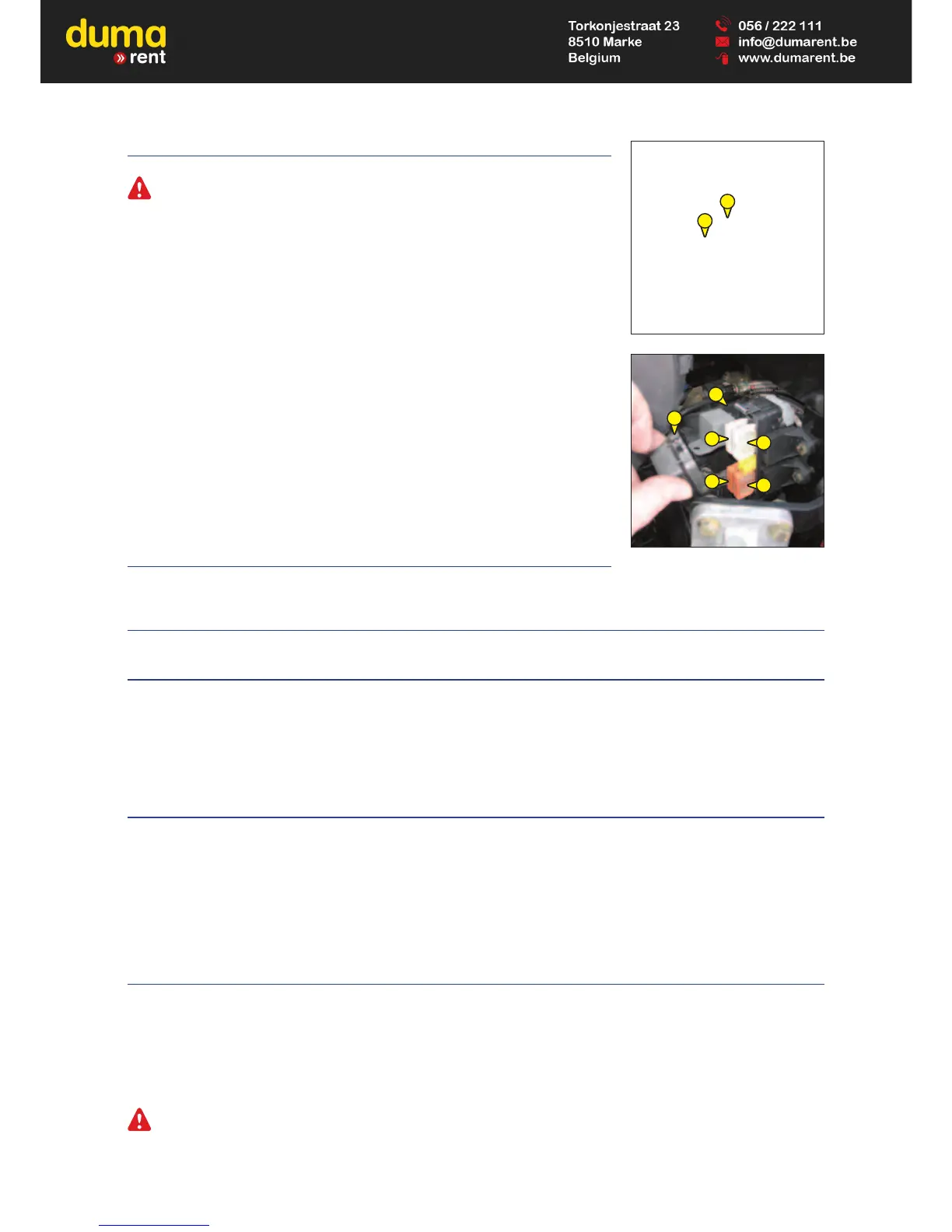

10 - FUSES AND RELAYS UNDER THE ENGINE HOOD
Always replace a faulty fuse with another of equivalent rating. Never use a fuse that has been repaired.
F26 - OPTION Diesel decongealant (15A).
K11 - OPTION Diesel decongealant.
- Remove cover 1 in order to gain access to the fuses.
F41 - Lift truck electrical equipment (40A).
F42 - Preheating I.C. engine (80A).
F43 - Alternator (80A).
F44 - Lift truck electrical equipment (40A).
K10 - Preheating relay
11 - ROOF LIGHT
Optional for MC 30 Série 3-E3
12 - ACCELERATOR PEDAL
13 - SERVICE BRAKE PEDAL AND TRANSMISSION CUT-OFF
MC 30 Turbo Série 3-E3 M 26-2 Turbo Série 3-E3 M 26-4 Turbo Série 3-E3 M 40-4 Turbo Série 3-E3
M 30-2 Turbo Série 3-E3 M 30-4 Turbo Série 3-E3 M 50-4 Turbo Série 3-E3
The pedal acts on the front wheels by means of a hydraulic brake system enabling the slowing down and stopping of the lift truck. During
clearance travel it enables the transmission to be cut off progressively thus allowing a gradual approach (delicate handling) with all the
I.C. engine power.
13 - SERVICE BRAKE PEDAL AND TRANSMISSION CUT-OFF
MC 40 Turbo POWERSHIFT Série 3-E3 MC 60 Turbo POWERSHIFT Série 3-E3
MC 50 Turbo POWERSHIFT Série 3-E3 MC 70 Turbo POWERSHIFT Série 3-E3
SERVICE BRAKE PEDAL
The pedal applies on the front and rear wheels by an hydraulic brake system, and allows the lift truck to be slowed down and stopped.
TRANSMISSION CUT-OFF PEDAL
This pedal progressively cuts off the transmission thus allowing a gradual approach (delicate handling) with the full power of the I.C. engine
power, then works the service brake pedal to bring the lift truck to a halt.
14 - DIFFERENTIAL LOCK PUSH-BUTTON
Optional for M 26-4 Turbo Série 3-E3 M 40-4 Turbo Série 3-E3
M 30-4 Turbo Série 3-E3 M 50-4 Turbo Série 3-E3
The differential lock allows the driving wheels to rotate at the same speed regardless of ground conditions. Press on the top of the push-button to
engage.
- Hold this position for as long as the differential lock is required. To disengage, simply remove the foot from the push-button that will
automatically return to its initial position.
While the differential lock is engaged, always drive in a straight line and remain in first gear.
F43
F44
F41
F42
K10
1
F26
K11
647003 EN (03/01/2012)
