3-32

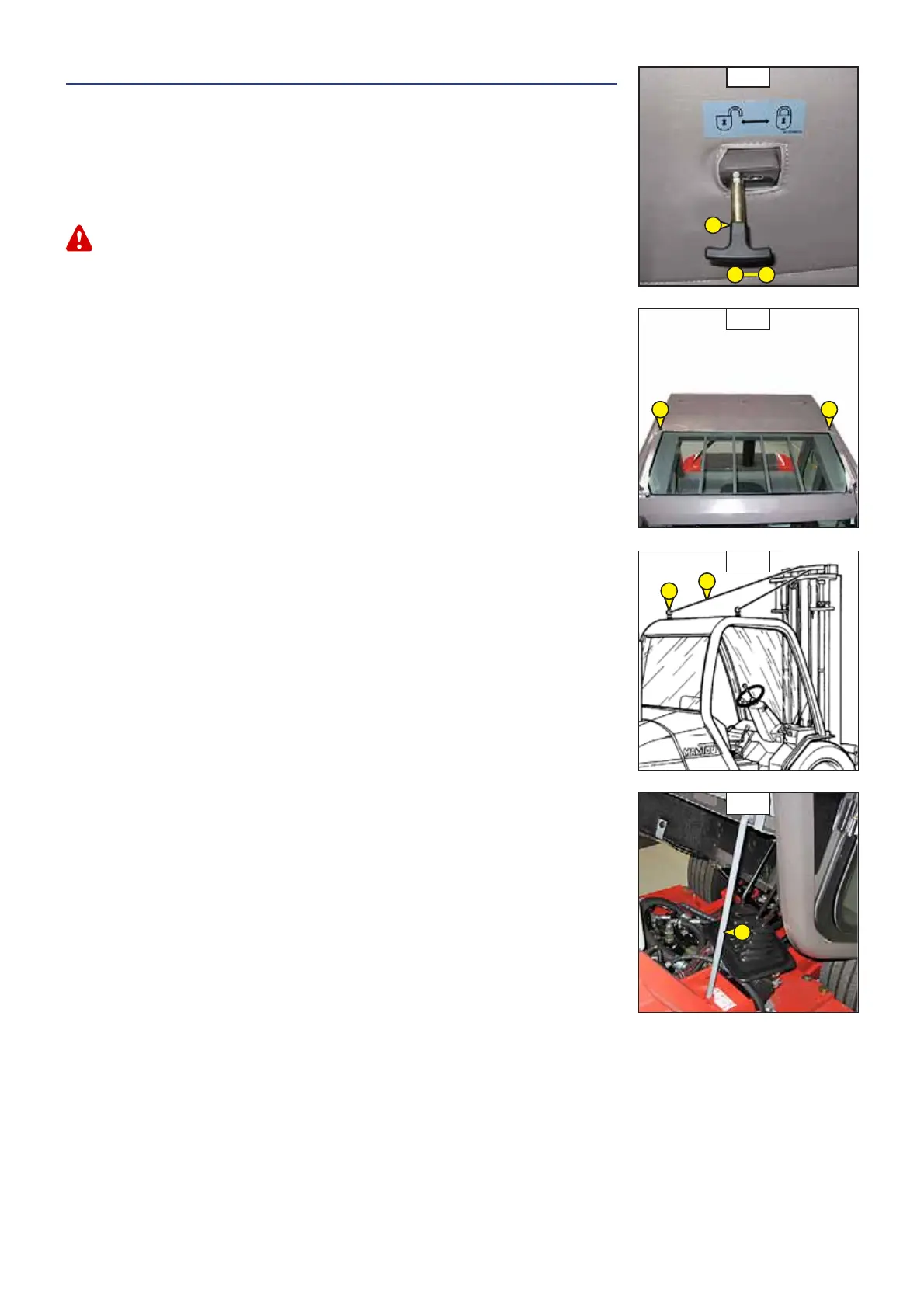

G3 - RAISING THE OVERHEAD GUARD OR THE CAB IN THE EVENT OF A BREAKDOWN
PROCEDURE IN THE EVENT OF HYDRAULIC FAILURE ON THE LIFTING SYSTEM
UNLOCKING THE OVERHEAD GUARD OR THE CAB:
- Unlock the overhead guard by means of the lever 1 (fig. A) in position A.
- With the cab model, close the doors.
RAISING THE OVERHEAD GUARD OR THE CAB:
Check that there is nothing laying on the driver’s seat, which could disrupt the operation.
- If necessary, raise the mast until it is approximately 50 cm above the overhead guard or the cab.
- Unscrew the two screws 2 (fig. G3/2) on the roof and replace them with two MANITOU
eyes 3 (fig. G3/3) Reference 72422.
- Pass a sling 4 around the mobile upright’s upper belt and fasten the ends of the sling
onto the eyes 3 (fig. G3/3).
- Switch on the engine.
- Gently raise the mast to tension the sling and raise the overhead guard or the cab a few
centimetres.
- Return the lever 1 (fig. G3/1) to its initial position (position B).
- Tilt the mast forwards and raise it slowly until you can insert the safety stay 5 (fig. G3/4)
- Lower the mast to release and remove the sling.
G3/3
3
4
G3/4
5
G3/1
1
BA
G3/2
22
