3-33

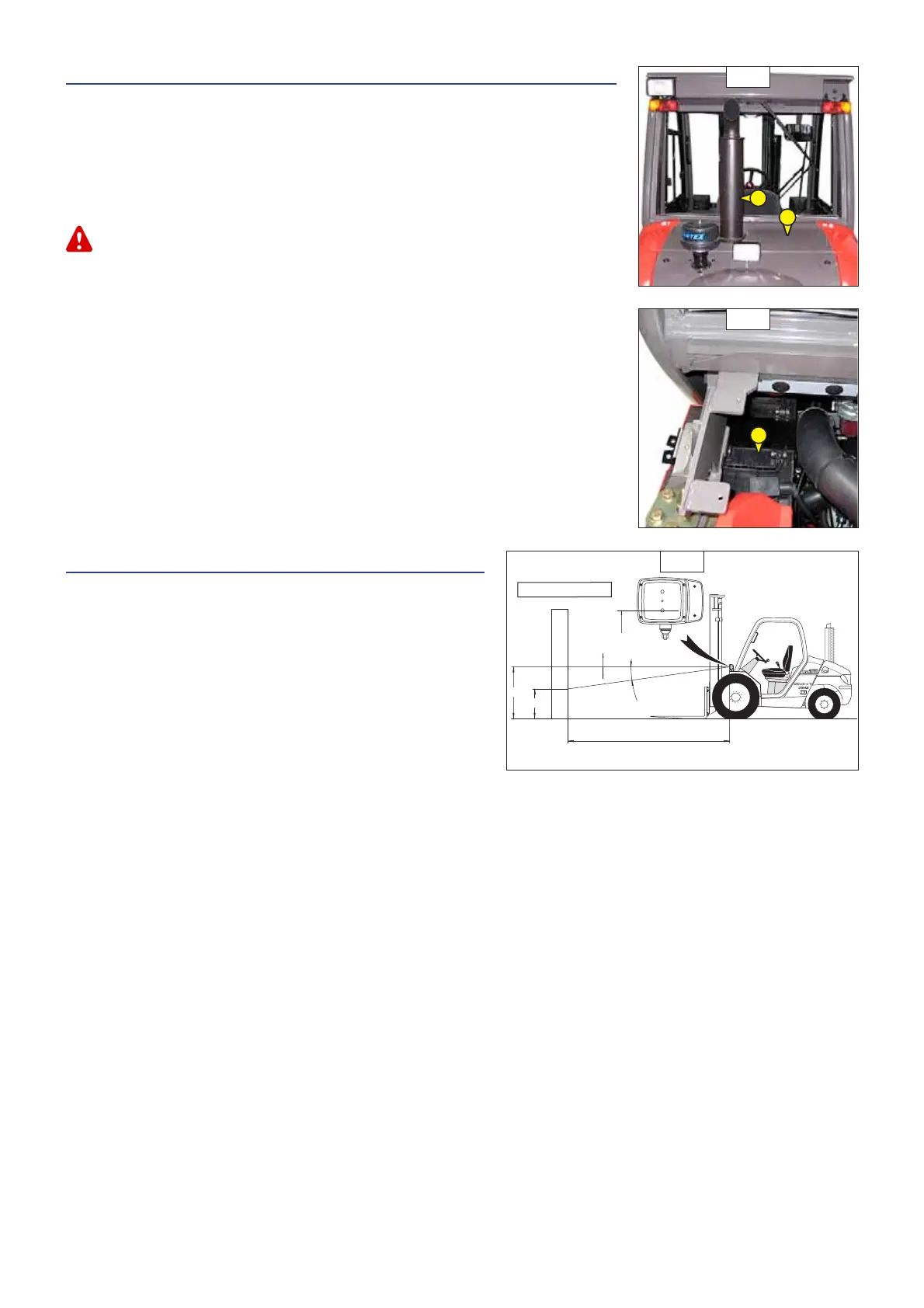

G4 - BREAKDOWN OF BATTERY
- Remove the exhaust pipe 1 (fig. G4/1).
- Remove the cowl 2 (fig. G4/1) to access the battery 3 (fig. G4/2).
- Bring a floating battery of the same type as the one used for the lift truck and battery cables.
- Connect the floating battery while respecting the polarity.
- Then, carry out the lifting of the overhead guard or cab (see: 2 - DESCRIPTION:
INSTRUMENTS AND CONTROLS).
- Change a battery.
Handling and servicing a battery can be dangerous, take the following precautions:
- Wear protective goggles.
- Keep the battery horizontal.
- Never smoke or work near a naked flame.
- Work in a well-ventilated area.
- In the event of electrolyte being spilled onto the skin or splashed in the eyes, rinse thoroughly
with cold water for 15 minutes and call a doctor.
G5 - FRONT HEADLAMPS (OPTION)
ADJUST
RECOMMENDED SETTING
(as per standard ECE-76/756 76/761 ECE20)
Set to - 2% of the dipped beam in relation to the horizontal line of
the headlamp.
ADJUSTING PROCEDURE
- Place the lift truck unloaded and in the transport position and
perpendicular to a white wall on flat, level ground (fig. G5).
- Check the tyre pressures (see: 2 - DESCRIPTION:
CHARACTERISTICS).
- Put the gear reverser lever in neutral and release the parking brake.
CALCULATING THE HEIGHT OF THE DIPPED BEAM (H2)
• h1 = Height of the dipped beam in relation to the ground.
• h2 = Height of the adjusted beam.
• l = Distance between the dipped beam and the white wall.
MADE IN FRANCE
h1
+%
-%
h1
h2
-2%
h2 = h1 - (l x 2 / 100)
l
G5
G4/1
1
2
G4/2
3
