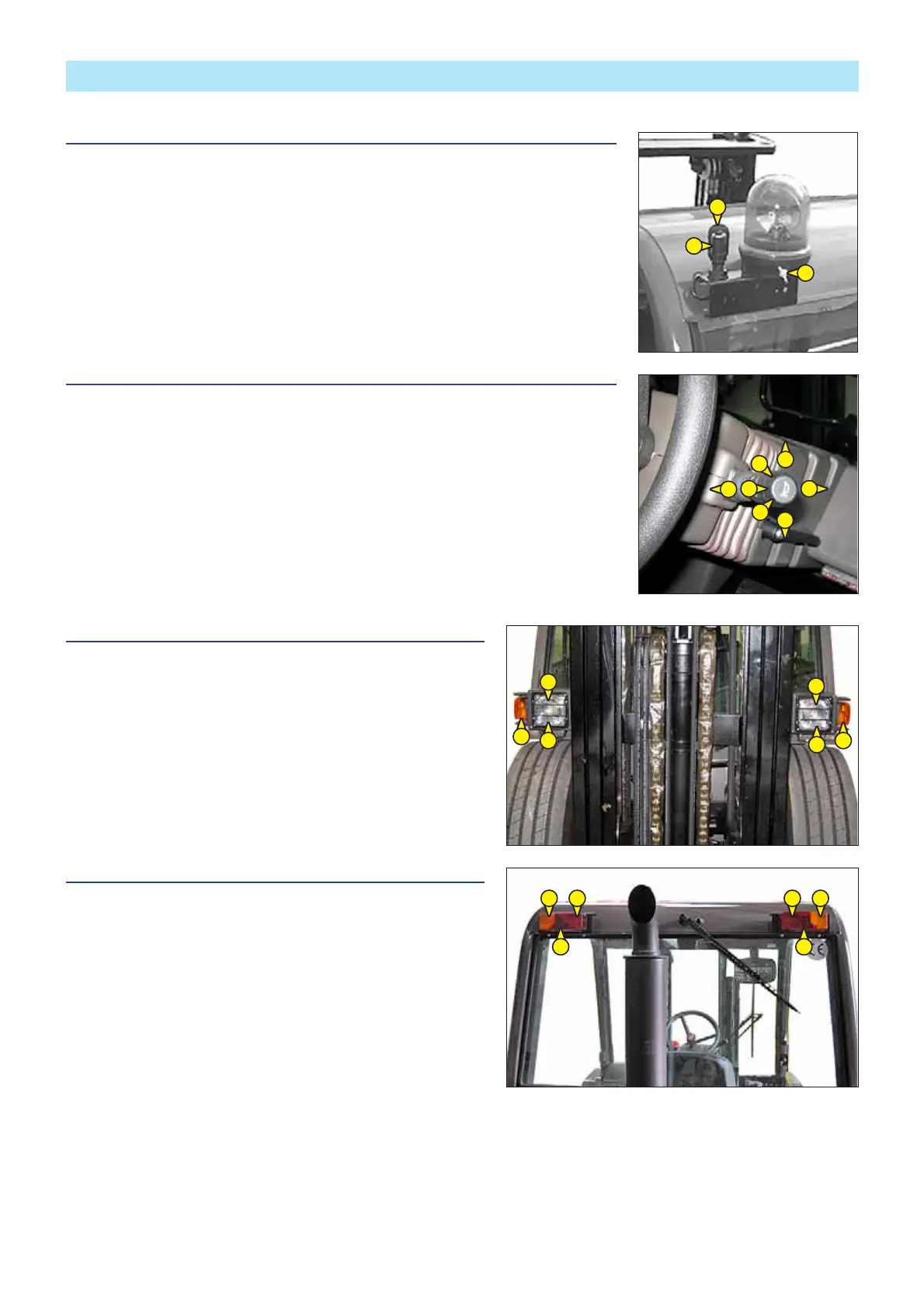

DESCRIPTION AND USE OF ELECTRIC AND HYDRAULIC OPTIONS
1 - REVOLVING LIGHT
The revolving light is dismountable to make it possible, for example, to reduce the bulkiness
of the lift truck or to avoid being stolen.
- Loosen nut 1 and remove the revolving light.
- Protect mounting 2 with cap 3.
2 - LIGHT SWITCH, HORN AND INDICATOR SWITCH
The switch controls the visual and sound alarms.
A - All lights are off, the direction indicators do not flash.
B - The right hand direction indicators flash.
C - The left hand direction indicators flash.
D - The sidelights and the rear lights are on.
E - The dipped headlights and the rear lights are on.
F - The main beam headlights and the rear lights are on.
G - Headlight signal.
Pressing the switch sounds the horn.
NOTE : The positions D - E - F - G can be carried out without the ignition being on.
3 - FRONT LIGHTS
A - Left front indicator.
B - Left front sidelight.
C - Left front dipped headlight and main beam.
D - Right front sidelight.
E - Right front dipped headlight and main beam.
F - Right front indicator.
4 - REAR LIGHTS (OVERHEAD GUARD MODEL)
A - Left rear indicator.
B - Left tail light.
C - Left rear stoplight.
D - Right rear stoplight.
E - Right tail light.
F - Right rear indicator.
