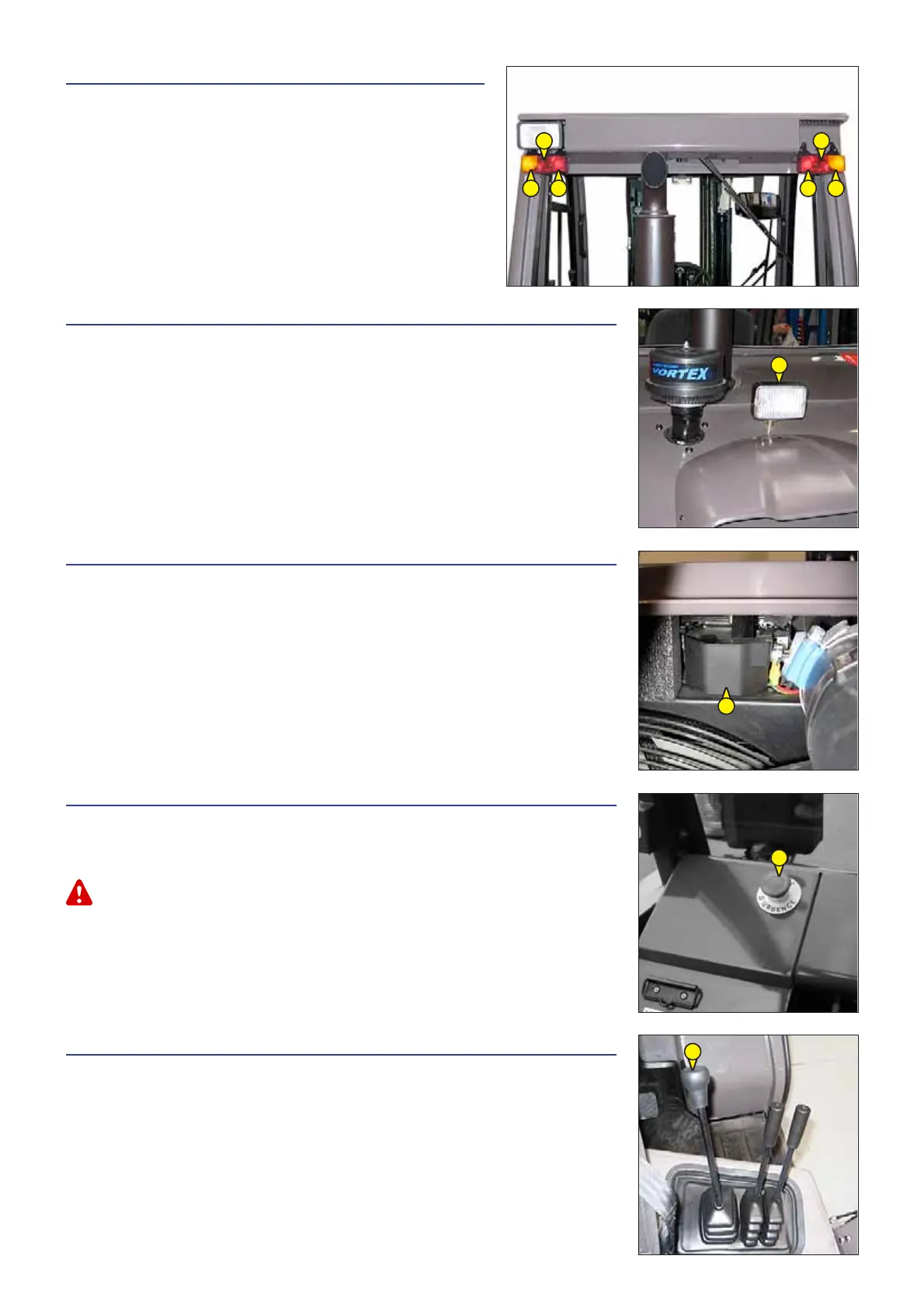

5 - REAR LIGHTS (CAB MODEL)
A - Left rear indicator.
B - Left tail light.
C - Left rear stoplight.
D - Right rear stoplight.
E - Right tail light.
F - Right rear indicator.
6 - REAR REVERSE LIGHT
7 - REVERSE BUZZER ALARM
8 - EMERGENCY STOP BUTTON
- In the event of danger, it lets you stop the I.C. Engine and thereby cut out all hydraulic
movements.
- Turn the button to disable it before restarting the lift truck.
Be ready for hydraulic movements suddenly stopping when you press this button.
9 - ADAPTATION CONTROLS LIFTING/TILTING REVERSED
LIFTING OF THE LOAD
- The lever A backwards when lifting.
- The lever A forwards when lowering.
NOTE : The engine r.p.m. automatically increases when lifting the load.
TILT OF THE MAST
- The lever A to the left for backward tilting.
- The lever A to the right for forward tilting.
