Manitou MT 1440 E3 - Page 103

3-17

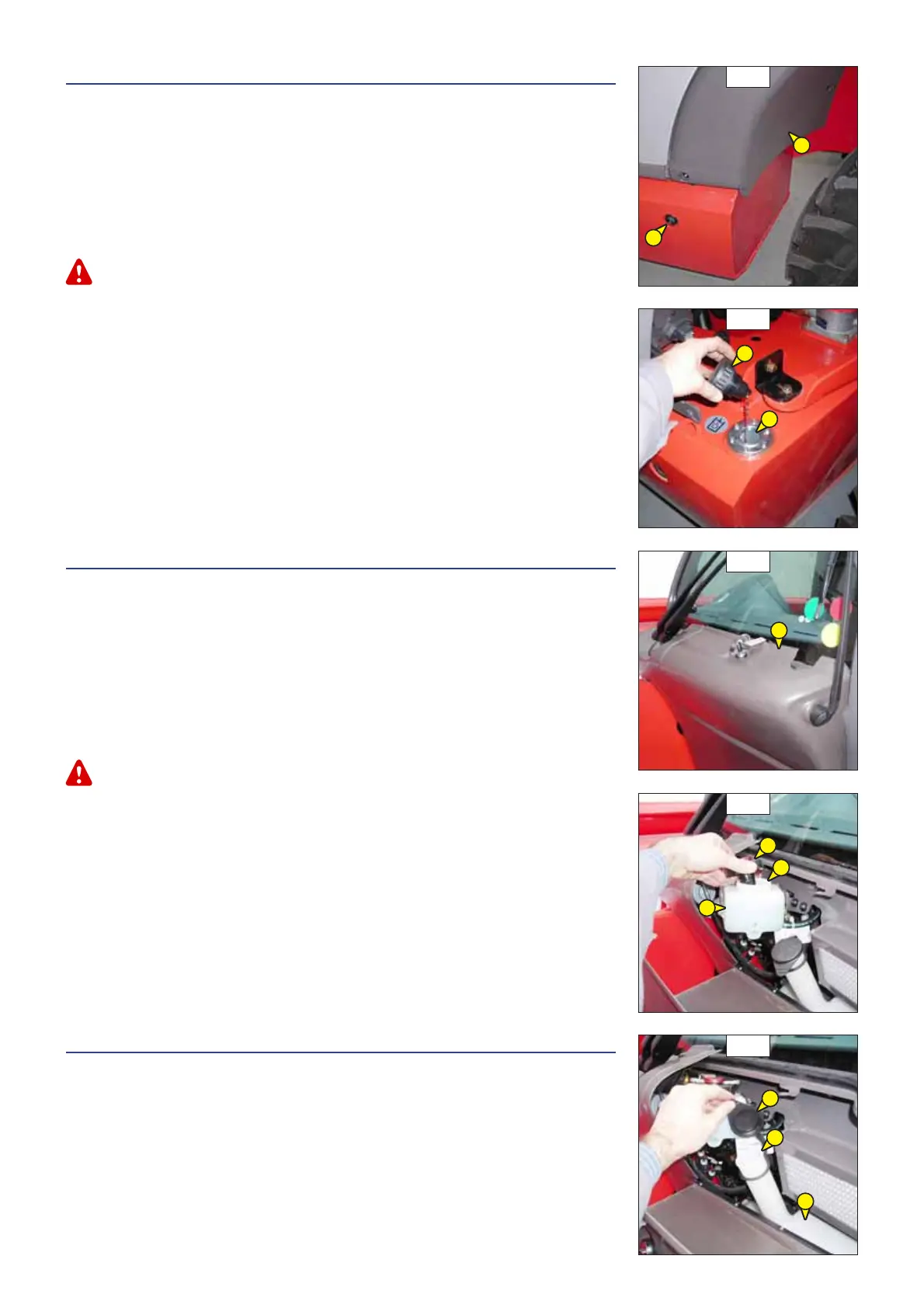

B4 - HYDRAULIC OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped, and the jib retracted and
lowered as far as possible.
- Check dipstick 1 (fig. B4/1). The correct level must stand at the level of the red point.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL).
- Lift up protective casing 2 (fig. B4/1).
- Remove cap 3 (fig. B4/2).
- Add oil by filler port 4 (fig. B4/2).
Use a clean funnel and clean the underside of the oil drum before filling.
- Put the cap back.
- Check visually that there is no leakage in the tank and pipes.
- Refit the protective casing.
B5 - BRAKE OIL LEVEL
CHECK
Place the lift truck on level ground.
- Remove protective casing 1 (fig. B5/1) using the switch key.
- Check tank 2 (fig. B5/2). The correct level must stand at the MAX. level in the tank.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL).
- Remove cap 3 (fig. B5/2).
- Add oil by filler port 4 (fig. B5/2).
- Put the cap back.
- Check visually that there is no leakage in the tank and pipes.
If the braking oil level is abnormally low, consult your dealer.
B6 - WINDSCREEN WASHER LIQUID LEVEL
CHECK
- Visually check the level in tank 1 (fig. B6).
- If necessary add windscreen washer liquid (see: 3 - MAINTENANCE: LUBRICANTS AND
FUEL).
- Remove cap 2 (fig. B6).
- Add windscreen washer liquid through filler port 3 (fig. B6).
- Put the cap back.
B4/2
3
4
B5/1
1
B5/2
3
4
2
B6
1
2
3
B4/1
1
2
