3-18
B7 - CAB VENTILATION FILTER
CLEAN
EXTERNAL CAB VENTILATION FILTER

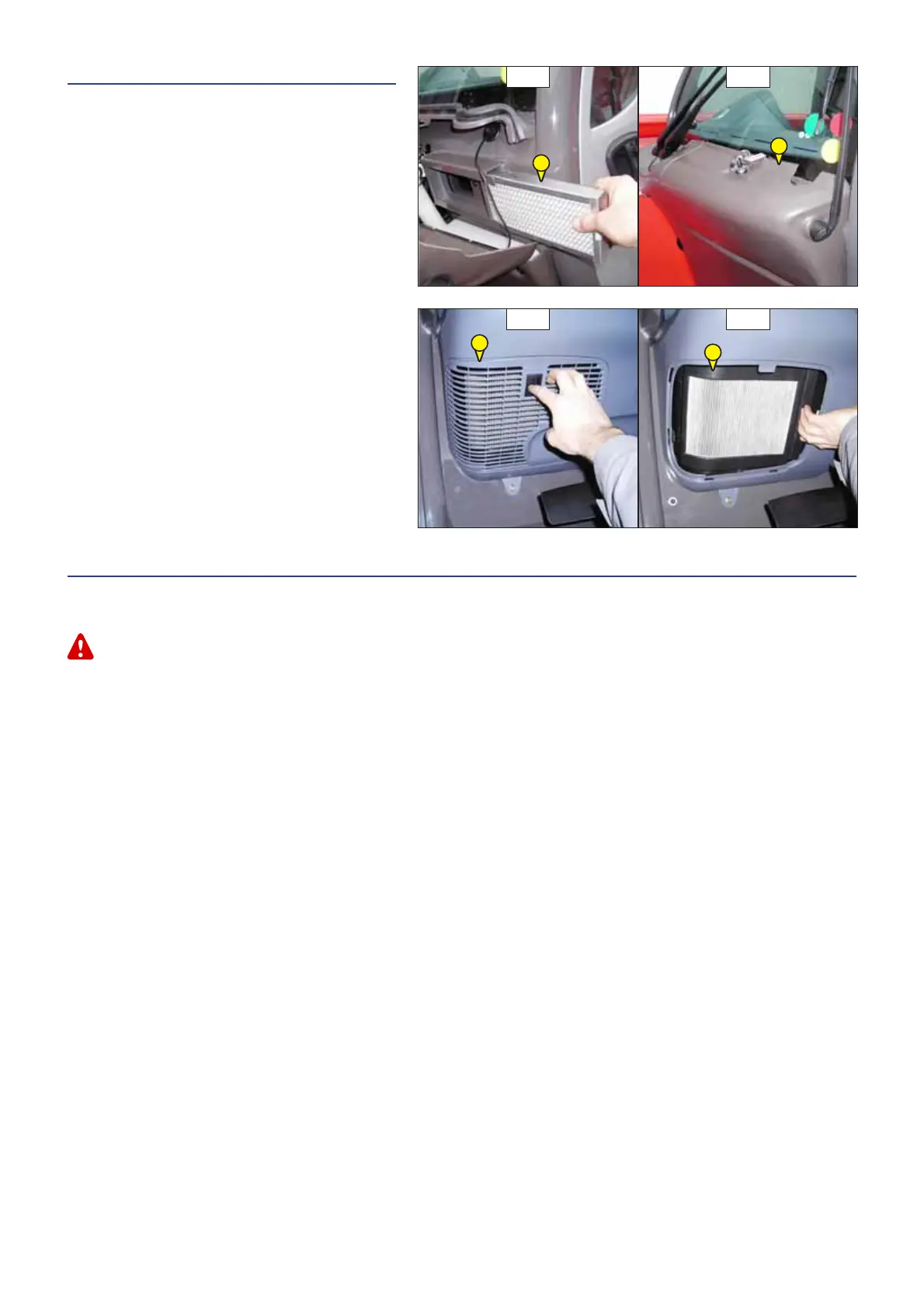

- Lift out cabin ventilation filter 1 (fig. B7/1).
- Clean the filter with a compressed air jet.
- Check its condition and change if necessary (see: 3
- MAINTENANCE: FILTERS CARTRIDGES AND BELTS).
- Put the filter back into place.
- Put the protective guard back 2 (fig. B7/2).
INTERNAL CAB VENTILATION FILTER
- Lift out protective grid 3 (fig. B7/3).
- Lift out cabin ventilation filter 4 (fig. B7/4).
- Clean the filter with a compressed air jet.
- Check its condition and change if necessary (see: 3
- MAINTENANCE: FILTERS CARTRIDGES AND BELTS).
- Put the filter back into place.
- Put the protective grid back into place.
B8 - GENERAL GREASING
GREASE
To be carried out weekly, if the lift truck has been operated for less than 50 hours during the week.
In the event of prolonged use in an extremely dusty or oxidising atmosphere, reduce this interval to 10 working hours or every day.
Clean and lubricate the following points with grease (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) and remove the surplus of
grease.
TRANSMISSION UNIVERSAL JOINT
1 - Lubricators of the universal joint Transmission/Front axle (3 lubricators).
2 - Lubricators of the universal joint Transmission/Rear axle (3 lubricators).
JIB
3 - Lubricators of the jib axle (2 lubricators).
4 - Lubricators of the carriage axle (2 lubricators).
5 - Lubricator of the tilt cylinder foot axle (1 lubricator).
6 - Lubricator of the tilt cylinder head axle (1 lubricator).
7 - Lubricator of the lifting cylinder foot axle (1 lubricator).
8 - Lubricator of the lifting cylinder head axle (1 lubricator).
9 - Lubricator of the compensation cylinder foot axle (1 lubricator).
10 - Lubricator of the compensation cylinder head axle (1 lubricator).
MT 1840 E3
11 - Lubricator of the chain pulley axle of telescope 2 at the top of the jib (1 lubricator).
12 - Lubricator of the chain pulley axle of telescope 1 at the top of the jib (1 lubricator).
13 - Lubricator of the chain pulley axle of telescope 1 at the bottom of the jib (1 lubricator).
14 - Lubricator of the hose pulley axle at the bottom of the jib (1 lubricator).
FRONT AND REAR WHEELS REDUCER PIVOTS
15 - Lubricators of the wheel reduction gear pivots (8 lubricators).
AXLE OSCILLATION
16 - Front axle oscillation lubricators (2 lubricators).
17 - Rear axle oscillation lubricators (2 lubricators).
ROLL CORRECTOR
18 - Lubricator of the roll corrector cylinder foot axle (1 lubricator).
19 - Lubricator of the roll corrector cylinder head axle (1 lubricator).
STABILISERS
20 - Lubricators of the stabiliser cylinders’ foot axle (2 lubricators).
21 - Lubricators of the stabiliser cylinders’ head axle (2 lubricators).
22 - Lubricators of the stabiliser axles (2 lubricators).
SINGLE SIDE-SHIFT CARRIAGE (TSDL) (OPTION)
23 - Wear plate lubricators (8 lubricators).
