3-39

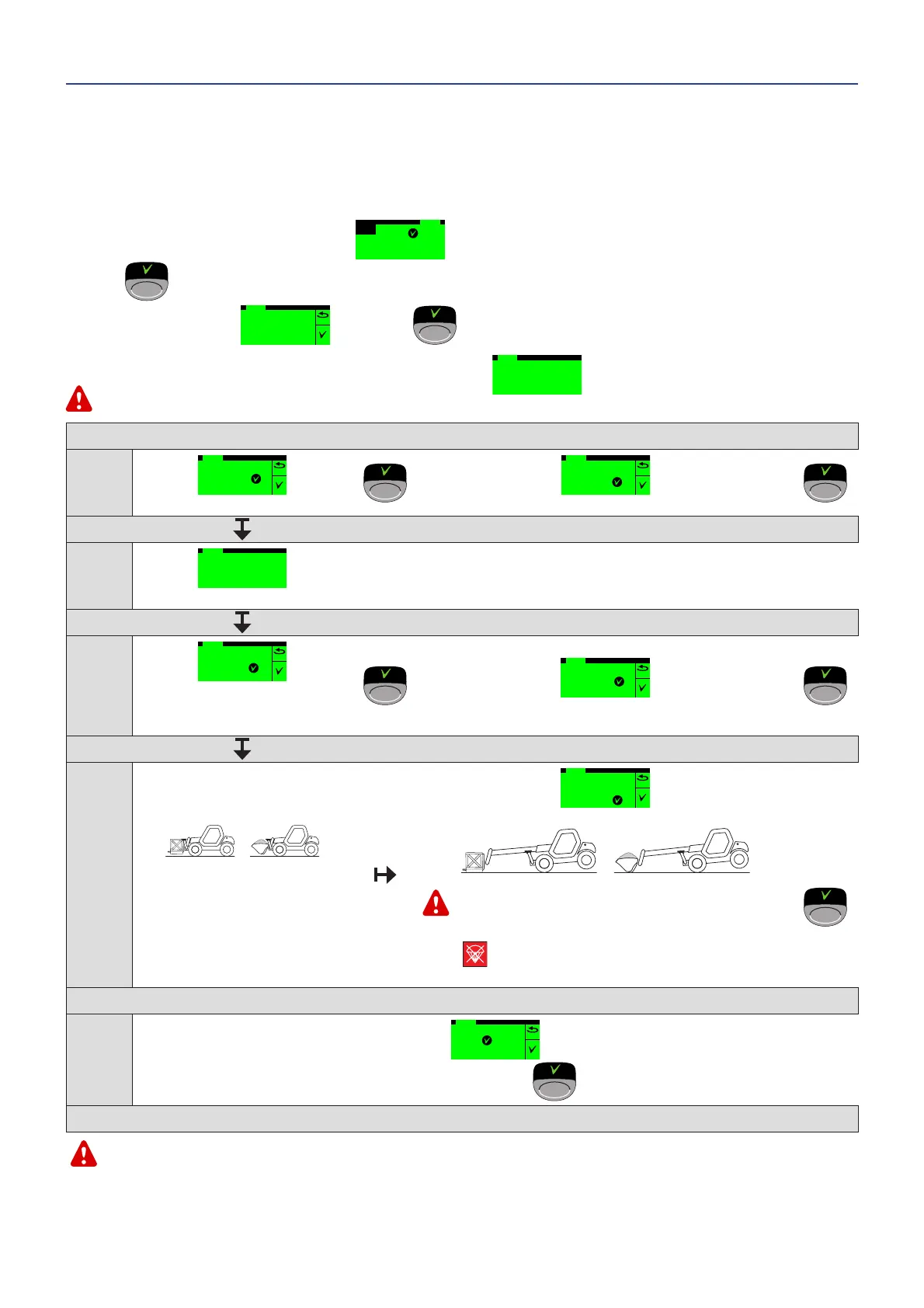

H3 - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE
RESET
According to the use of the lift truck, the device may require to be periodically reset.
This operation can be easily performed by means of the following procedure.
- Provide a fork carrier or a bucket and a load corresponding to at least half the lift truck’s rated capacity.
- Preferably perform the reset when the lift truck is still cold (before it is used) or ensure that the temperature of the rear axle is
not more than 50°C.
- Place the lift truck on flat, level ground with the wheels straight.
- Display the GAUGE “reset strain gauge” menu
RESET ADMIN
SECU
GAUGE
ERASE CALIB
Press to
Enter Security
Calibration Mode
(see: 2 - DESCRIPTION: 6D - SCREEN DISPLAY: MENU SCREEN) and
validate
.
- Enter the CUSTOMER code
CODE
0 0 _ _
and validate .
Scrupulously follow the jib positioning instructions. The appearance of the
GAUGE
Calibration incomplete or failed
screen indicates a failure to obey an instruction, a
cancellation request or a late response. If in doubt, consult your dealer.
STAGE 1
GAUGE
Fully extend the stabilizers
then press
1/6
Fully extend the stabilizers.
GAUGE
Lift the boom to max position,
fully retract the boom
then press
2/6
Completely raise the jib with the telescopes fully retracted.
STAGE 2
GAUGE
Wait…
Calibration in progress
Calibration in progress…
STAGE 3
GAUGE
Completly lower the
boom on the frame,
then press
3/6
Fully lower the jib with the engine running
at full revs and the hydraulic control at the
maximum setting.
GAUGE
Rise stabilizers,
then press
4/6
Completely raise the stabilizers.
STAGE 4
/
With the fork carriage or the bucket and
a load. Jib fully retracted in the lowered
position, approximately 20 centimetres
from the ground.
GAUGE
Use override switch to
extend the boom until rear
axle is lifted then wait 5s
and press
5/6
/
Keep the load as close to the ground as possible throughout this
operation.
- Hold down the disable the “aggravating” hydraulic movement cut-off
button
(indicator lamp lit), and telescope the jib until the rear wheels
are off the ground.
Wait 5
seconds
and
validate
FINISH
GAUGE
Retract the boom then
press to store
new calibration
6/6
Retract the telescopes to restore the situation, and press the button to record the new parameters.
When the reset is completed, check the operation of the longitudinal stability limiter and warning device (see: 3 - MAINTENANCE: A - DAILY OF EVERY
10 HOURS SERVICE).
